◆ Clay

Art deco fan textured rolling pin

Overlapping art deco fans with radiating ribs, for pottery and clay jewellery. A 1920s scallop pattern, seamless all round.

Make your own texture roller

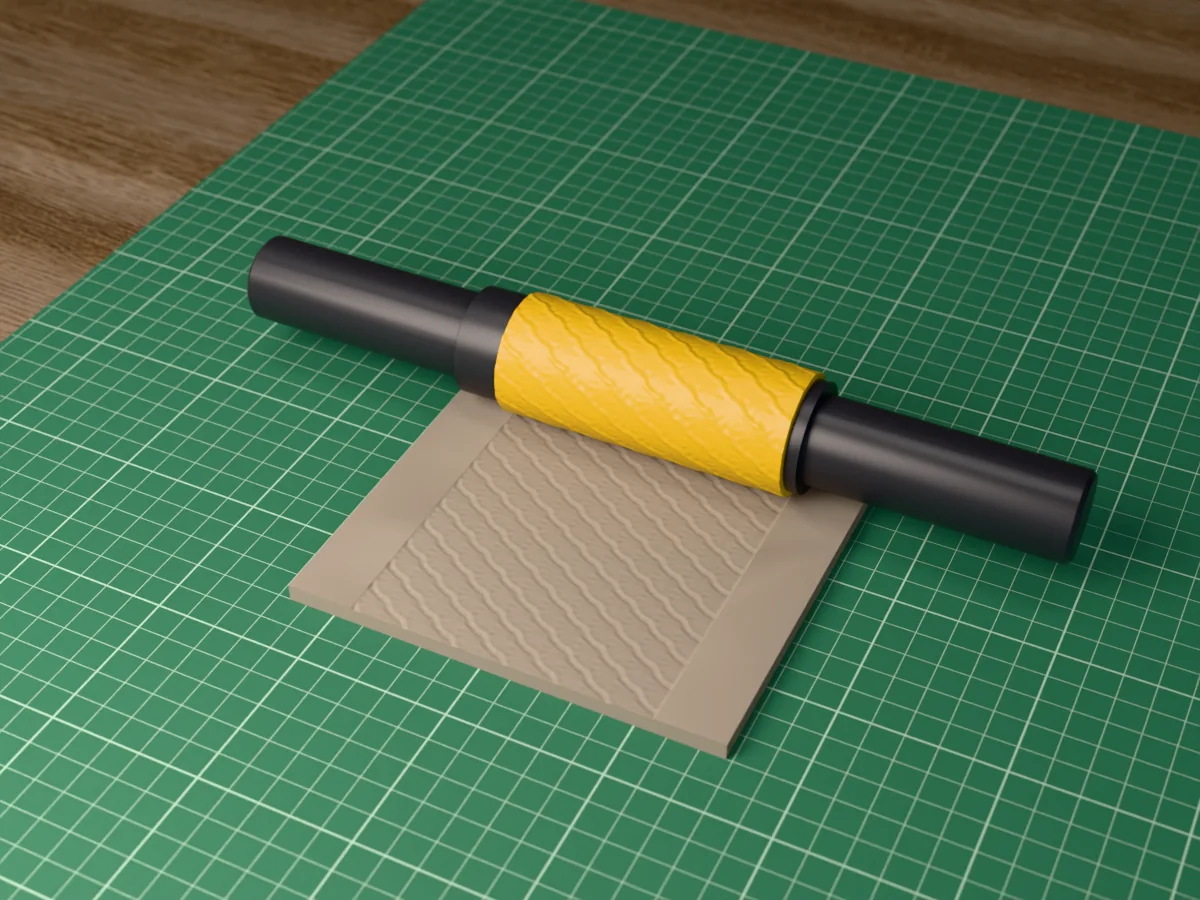

3D render of the printed art deco fan textured rolling pin, its patterned sleeve between two dark handles, resting on a slab of clay it has pressed with art deco fans
Clay ~127 g Pro early access

Rows of overlapping scallop fans about 10 mm wide, each with fine ribs radiating from its hinge and a crisp rim, every row offset half a fan, the Gatsby-era pattern of tiles and wallpaper. Roll it into porcelain or stoneware for deco mugs, vases and trays, into polymer clay for earrings and brooches, or into air-dry clay for picture frames and ornaments.

Read more

Made with our free texture roller tool in its Rolling pin style, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a sleeve 40 mm across and 100 mm long, the pattern raised 1.5 mm and repeated three times round and twice along. The zip holds the texture sleeve and the tool's own two rolling-pin handles, as two STL files, plus the pattern picture, so you can remake the sleeve at another diameter or depth.

Every sleeve in this set slides onto the same two handles: the core, 202 mm long overall, a handle with a 30 mm tube, and a cap that locks on with a quarter turn. Print the handles once, and after that only sleeves.

Shown as a 3D render of the printed rolling pin on the clay it has pressed, not a photo.

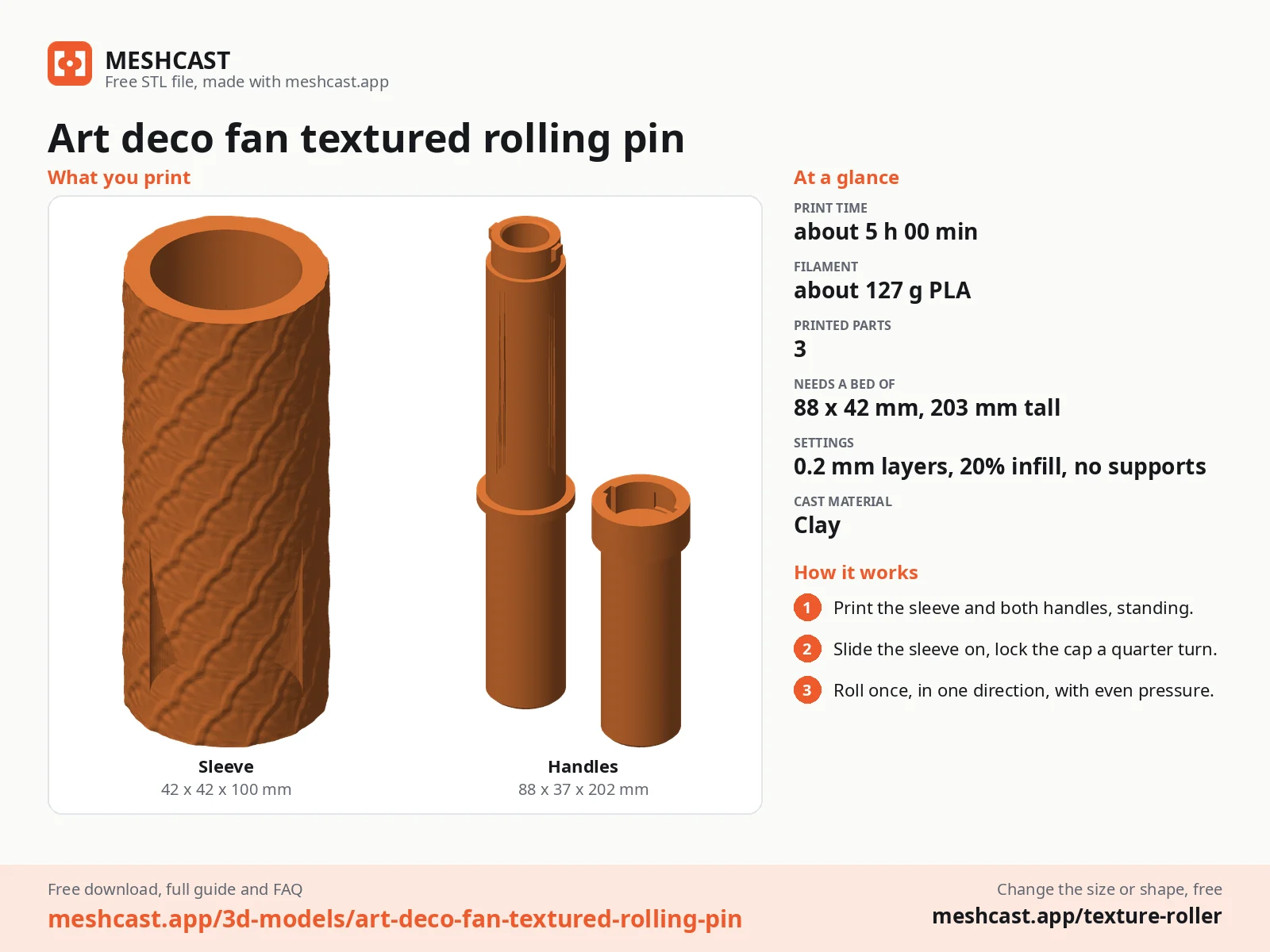

Art deco fan textured rolling pin at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

4
  • About 127 g of PLA or PETG for the sleeve and both handles (about 32 g for a sleeve alone)
  • Something to texture: polymer or air-dry clay, pottery clay, or fondant under cling film
  • A printer that can print 207 mm tall: the core handle stands 202 mm on the bed
  • A little cornstarch, or a water spray for pottery clay, if it starts to stick

How to use it

5

  1. Print the sleeve and both handles standing on their ends, as exported, no supports. A 5 mm brim keeps the tall core steady.

  2. Slide the sleeve over the core's tube, push the cap on with its slots over the two lugs and turn it a quarter turn to lock.

  3. Roll the clay to an even thickness first: 5 to 8 mm for pottery slabs, 2 to 3 mm for jewellery and ornaments.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Turn the cap back to swap to another sleeve from the set, and wash the sleeve in warm soapy water after use.

Print details

5 hPrint time
~127 gFilament
3Printed parts
42 × 42 × 100 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts3
Size (W x D x H)42 x 42 x 100 mm
Print bed needed88 x 42 mm, 203 mm tall
Filament~127 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: texture sleeve + 2 rolling-pin handles (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-09-27

Pro early access until October 27, 2026, then free with any account.

Like it or post your print on Thingiverse

Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the texture roller guide.

textured rolling pinart deco texturescallop patternpottery texture rollerpolymer clay earrings

Questions about this design

How do I make the art deco fan textured rolling pin pattern look gold?

On polymer clay, brush a gold mica powder over the baked piece so it catches only the ribs and rims. On pottery, glaze the piece, fire it, then add a lustre or overglaze gold in a third low firing for the full 1920s look.

How big are the fans on the art deco fan textured rolling pin?

Each fan is about 10.5 mm wide and each row about 8 mm tall. A strip 100 mm wide carries twelve rows side by side, so a mug wall shows the pattern many times over and an earring shows two or three fans.

Does the art deco fan textured rolling pin fit the same handles as the other sleeves?

Yes. Every sleeve in this set is 100 mm long with a 30.6 mm bore, and every zip carries the same core and cap, so you print the handles once and swap sleeves with a quarter turn of the cap. They also fit handles printed from the texture roller tool itself.

How long does the art deco fan textured rolling pin take to print?

About 5 h for everything on a current printer at 0.2 mm layers: about 1 h 15 min for the sleeve and 3 h 50 min for both handles. Once you have the handles, each new sleeve is only the first part. The times are estimated from the parts' volume, not sliced.
