Bamboo texture roller

A screen of round bamboo canes side by side, with nodes at staggered heights and fine fibres. Pottery, planters and Asian-style terrain.

Make your own texture roller Download free on Thingiverse
3D render of the printed bamboo texture roller in its dark fork handle, resting on a slab of clay it has pressed with bamboo canes
Clay ~68 g

Round bamboo canes of slightly different widths standing side by side across the strip, each with a node, a raised ring over a narrow groove, at its own height, and fine fibres running along the cane, like a bamboo fence or a rolled screen. Roll it into stoneware or air-dry clay for planters, cups and vases with a bamboo look, into polymer clay for jewellery and ornaments, or into foam and clay for fences, huts and Asian-style buildings on wargaming tables.

Read more

Made with our free texture roller tool, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a roller 30 mm across and 80 mm long with an 8 mm bore, the pattern raised 1.5 mm and repeated twice round and twice along. The zip holds the roller and the tool's own fork handle with its two retaining pins, as two STL files, plus the pattern picture, so you can remake the roller at another size or depth.

Every roller in this set is the same size and fits the same 131 mm handle, so you print the handle once and after that only rollers: pull the two pins, swap the roller, push the pins back in.

Shown as a 3D render of the printed roller in its handle on the clay it has pressed, not a photo.

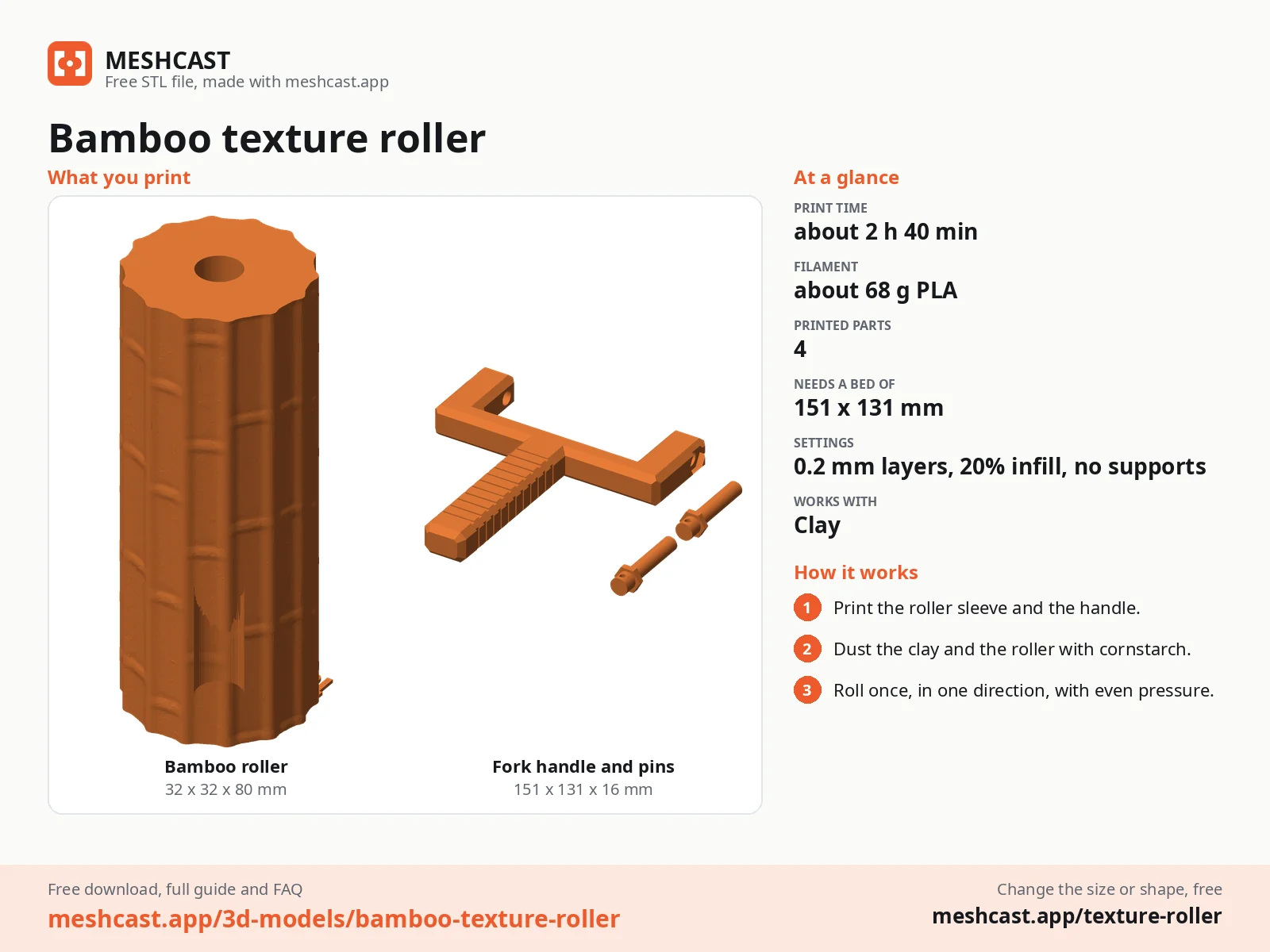

Bamboo texture roller at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

4
  • About 68 g of PLA or PETG for the roller, the handle and its pins (about 31 g for a roller alone)
  • Something to texture: polymer, air-dry or ceramic clay, or EVA foam warmed with a heat gun
  • A smooth work surface, and a rolling pin or two guide strips to roll the clay to an even thickness
  • A little cornstarch, or a water spray for ceramic clay, if it starts to stick

How to use it

5

  1. Print the roller standing on its end and the handle and pins lying flat, all as exported, no supports.

  2. Set the roller between the arms of the fork and push one pin through each arm into its bore, hex head outwards; the roller turns on the pins.

  3. Roll the clay to an even thickness first: 4 to 6 mm for terrain and slabs, 2 to 3 mm for jewellery and ornaments.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Pull the pins to swap to another roller from the set, and wash the roller in warm soapy water after use.

Print details

2 h 40 minPrint time
~68 gFilament
4Printed parts
32 × 32 × 80 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts4
Size (W x D x H)32 x 32 x 80 mm
Print bed needed151 x 131 mm, 81 mm tall
Filament~68 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: roller + fork handle and 2 pins (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-10-01
Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the printed piece itself needs a commercial licence (Pro or Founder); passing on the file is not permitted on any plan. Full terms.

New to this? Read the texture roller guide.

bamboo texture rollerbamboo pottery texturebamboo fence terrainclay texture rollerasian terrain texture

Questions about this design

How do I make a bamboo planter with the bamboo texture roller?

Roll a slab of stoneware or air-dry clay about 6 mm thick with the canes running from top to bottom, and wrap it round a form lined with newspaper. Join the seam in the groove between two canes, add a base, and glaze it green or brown: a runny glaze pools nicely at the nodes.

Can the bamboo texture roller make fences for tabletop terrain?

Yes. Texture a 4 mm slab of air-dry clay or foam, cut strips as tall as the fence, and add two horizontal rails across them from thin rolls of clay. Paint it a straw yellow, drybrush a pale cream on the canes and pick out the nodes a little darker.

Does the bamboo texture roller fit the same handle as the other rollers?

Yes. Every roller in this set is 80 mm long and 30 mm across at the base, with an 8 mm bore, and every zip carries the same fork handle and pins, so you print the handle once and swap rollers by pulling the two pins.

How long does the bamboo texture roller take to print?

About 2 h 40 min for everything on a current printer at 0.2 mm layers: about 1 h 15 min for the roller and 1 h 30 min for the handle and pins. Once you have the handle, each new roller is only the first part. The times are estimated from the parts' volume, not sliced.
