◆ Clay

Celtic knot band texture roller

Two bands of Celtic plaitwork per repeat, three strands over and under, between raised borders. For pottery, polymer clay and fondant.

Make your own texture roller Download free on Thingiverse
3D render of the printed celtic knot band texture roller in its dark fork handle, resting on a slab of clay it has pressed with Celtic knotwork bands
Clay ~69 g

Two bands of Celtic knotwork on every repeat, each a three-strand plait in which every strand goes over, then under, the others in turn, with a gap either side wherever one strand passes over another, framed by raised border lines. Roll it into clay for mug and tankard bands, planters, bowls and tiles, into polymer clay for jewellery, bracelets and ornaments, or into fondant through cling film for cake bands.

Read more

Made with our free texture roller tool, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a roller 30 mm across and 80 mm long with an 8 mm bore, the pattern raised 1.5 mm and repeated twice round and twice along. The zip holds the roller and the tool's own fork handle with its two retaining pins, as two STL files, plus the pattern picture, so you can remake the roller at another size or depth.

Every roller in this set is the same size and fits the same 131 mm handle, so you print the handle once and after that only rollers: pull the two pins, swap the roller, push the pins back in.

Shown as a 3D render of the printed roller in its handle on the clay it has pressed, not a photo.

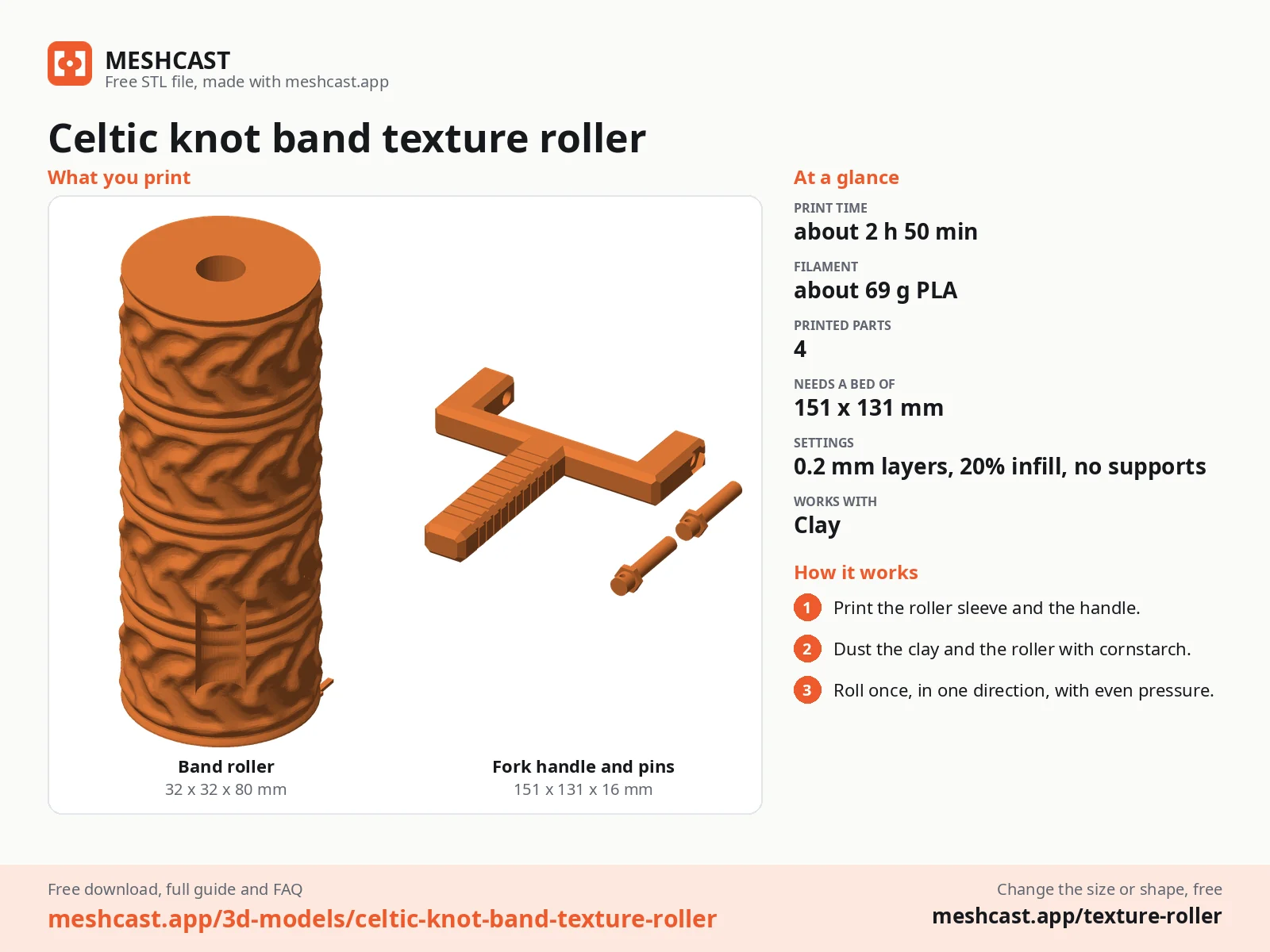

Celtic knot band texture roller at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

4
  • About 69 g of PLA or PETG for the roller, the handle and its pins (about 31 g for a roller alone)
  • Something to texture: polymer, air-dry or ceramic clay, or fondant under cling film
  • A smooth work surface, and a rolling pin or two guide strips to roll the clay to an even thickness
  • A little cornstarch, or a water spray for ceramic clay, if it starts to stick

How to use it

5

  1. Print the roller standing on its end and the handle and pins lying flat, all as exported, no supports.

  2. Set the roller between the arms of the fork and push one pin through each arm into its bore, hex head outwards; the roller turns on the pins.

  3. Roll the clay to an even thickness first: 4 to 6 mm for terrain and slabs, 2 to 3 mm for jewellery and ornaments.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Pull the pins to swap to another roller from the set, and wash the roller in warm soapy water after use.

Print details

2 h 50 minPrint time
~69 gFilament
4Printed parts
32 × 32 × 80 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts4
Size (W x D x H)32 x 32 x 80 mm
Print bed needed151 x 131 mm, 81 mm tall
Filament~69 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: roller + fork handle and 2 pins (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-10-01
Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the printed piece itself needs a commercial licence (Pro or Founder); passing on the file is not permitted on any plan. Full terms.

New to this? Read the texture roller guide.

celtic knot texture rollerceltic knotwork texturepottery texture rollerpolymer clay textureceltic pottery band

Questions about this design

How do I put a band round a mug with the Celtic knot band texture roller?

Roll a strip of clay about 4 mm thick, texture it, and cut along a border line so you have one band about 20 mm wide. Score and slip the leather-hard mug and the back of the band, wrap it round, and join the ends where two strands cross so the seam hides.

Does the Celtic knot band texture roller work on fondant cakes?

Yes, through cling film, which keeps the printed plastic off the food and stops sticking. Roll fondant 3 mm thick, lay the film over it and roll the texture on once, then cut one band and wrap it round the cake tier.

Does the celtic knot band texture roller fit the same handle as the other rollers?

Yes. Every roller in this set is 80 mm long and 30 mm across at the base, with an 8 mm bore, and every zip carries the same fork handle and pins, so you print the handle once and swap rollers by pulling the two pins.

How long does the celtic knot band texture roller take to print?

About 2 h 50 min for everything on a current printer at 0.2 mm layers: about 1 h 15 min for the roller and 1 h 30 min for the handle and pins. Once you have the handle, each new roller is only the first part. The times are estimated from the parts' volume, not sliced.
