Moroccan quatrefoil textured rolling pin

Moroccan quatrefoil tiles outlined in deep grooves, for pottery and clay. Four-lobed panels with a raised diamond between them.

Make your own texture roller

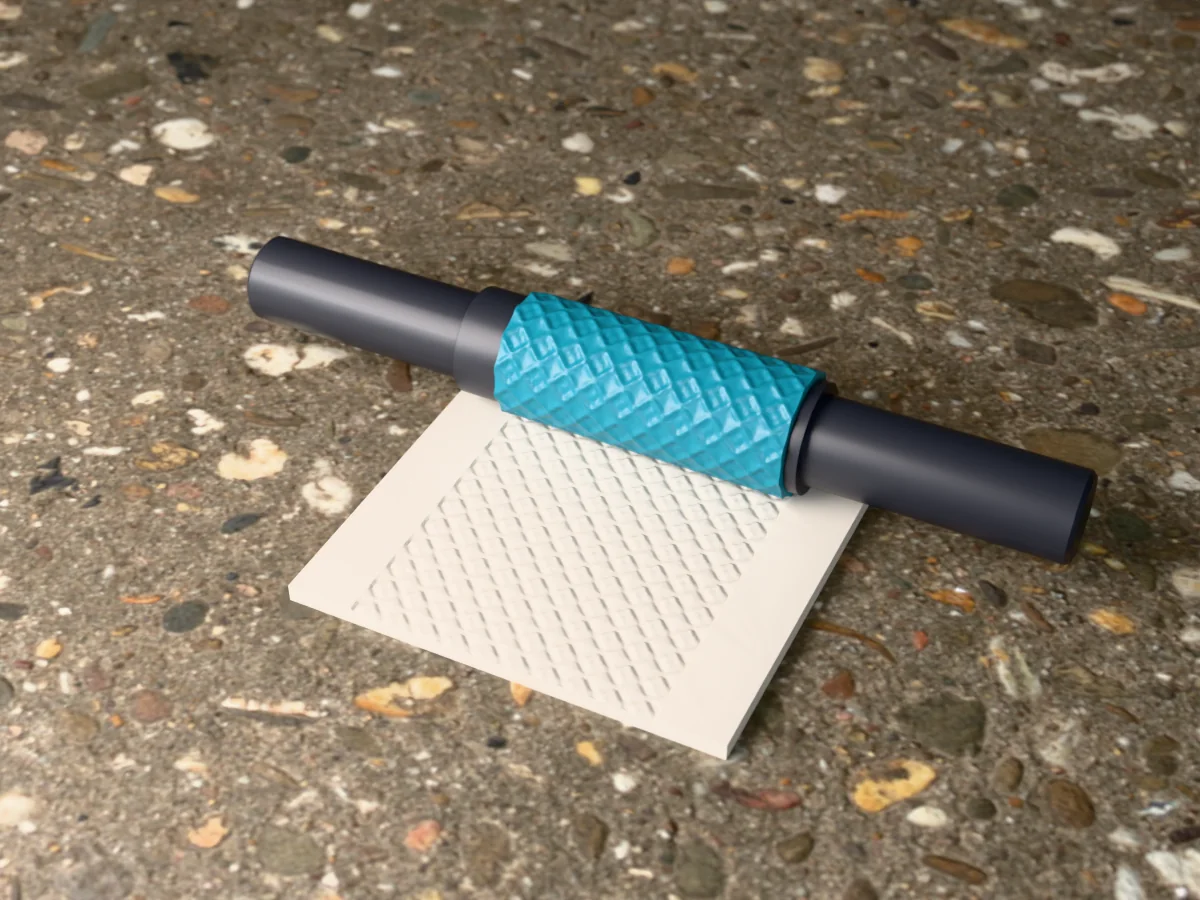

3D render of the printed moroccan quatrefoil textured rolling pin, its patterned sleeve between two dark handles, resting on a slab of clay it has pressed with Moroccan quatrefoils
Clay ~128 g Pro early access

Four-lobed quatrefoil panels about 10 mm across, each outlined by a deep pressed groove, with a small raised diamond where four of them meet, the pattern of Moroccan tiles and lanterns. Roll it into porcelain or stoneware for tiles, mugs, lanterns and trivets, into polymer clay for earrings, or into air-dry clay for ornaments and trinket boxes.

Read more

Made with our free texture roller tool in its Rolling pin style, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a sleeve 40 mm across and 100 mm long, the pattern raised 1.5 mm and repeated three times round and twice along. The zip holds the texture sleeve and the tool's own two rolling-pin handles, as two STL files, plus the pattern picture, so you can remake the sleeve at another diameter or depth.

Every sleeve in this set slides onto the same two handles: the core, 202 mm long overall, a handle with a 30 mm tube, and a cap that locks on with a quarter turn. Print the handles once, and after that only sleeves.

Shown as a 3D render of the printed rolling pin on the clay it has pressed, not a photo.

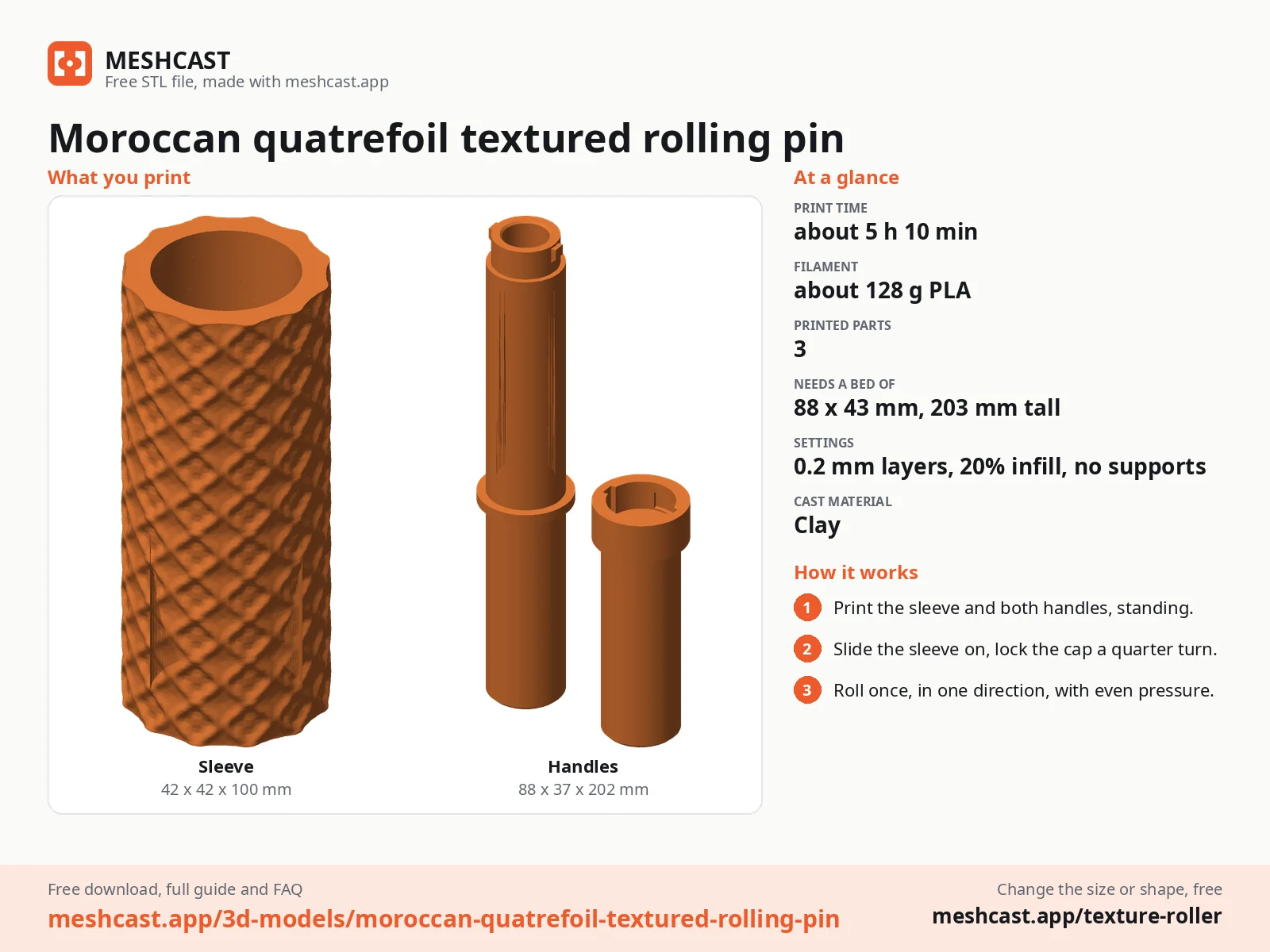

Moroccan quatrefoil textured rolling pin at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

4
  • About 128 g of PLA or PETG for the sleeve and both handles (about 33 g for a sleeve alone)
  • Something to texture: stoneware, earthenware or porcelain slabs, or air-dry or polymer clay
  • A printer that can print 207 mm tall: the core handle stands 202 mm on the bed
  • A little cornstarch, or a water spray for pottery clay, if it starts to stick

How to use it

5

  1. Print the sleeve and both handles standing on their ends, as exported, no supports. A 5 mm brim keeps the tall core steady.

  2. Slide the sleeve over the core's tube, push the cap on with its slots over the two lugs and turn it a quarter turn to lock.

  3. Roll the clay to an even thickness first: 5 to 8 mm for pottery slabs, 2 to 3 mm for jewellery and ornaments.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Turn the cap back to swap to another sleeve from the set, and wash the sleeve in warm soapy water after use.

Print details

5 h 10 minPrint time
~128 gFilament
3Printed parts
42 × 42 × 100 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts3
Size (W x D x H)42 x 42 x 100 mm
Print bed needed88 x 43 mm, 203 mm tall
Filament~128 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: texture sleeve + 2 rolling-pin handles (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-09-27

Pro early access until October 27, 2026, then free with any account.

Like it or post your print on Thingiverse

Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the texture roller guide.

textured rolling pinmoroccan patternquatrefoil texturetile texture rollerpottery texture roller

Questions about this design

Can I make tiles with the Moroccan quatrefoil textured rolling pin?

Yes. Roll a slab 8 to 10 mm thick, texture it, and cut 100 mm square tiles once it is leather hard. Dry them slowly between boards so they stay flat, then glaze in blues and whites for a Moroccan zellige look.

Which glaze brings out the Moroccan quatrefoil textured rolling pin?

A transparent coloured glaze that pools: a cobalt blue, a turquoise or a celadon. It goes dark in the grooves and light on the panels, so each quatrefoil outlines itself without any painting.

Does the moroccan quatrefoil textured rolling pin fit the same handles as the other sleeves?

Yes. Every sleeve in this set is 100 mm long with a 30.6 mm bore, and every zip carries the same core and cap, so you print the handles once and swap sleeves with a quarter turn of the cap. They also fit handles printed from the texture roller tool itself.

How long does the moroccan quatrefoil textured rolling pin take to print?

About 5 h 10 min for everything on a current printer at 0.2 mm layers: about 1 h 20 min for the sleeve and 3 h 50 min for both handles. Once you have the handles, each new sleeve is only the first part. The times are estimated from the parts' volume, not sliced.
