◆ Clay

Rock face texture roller

A broken rock face of angular blocks and flat, chipped facets. Cliffs, cave walls, rocky outcrops and mountain terrain for tabletop games.

Make your own texture roller
3D render of the printed rock face texture roller in its dark fork handle, resting on a slab of clay it has pressed with a rough rock face
Clay ~69 g Pro early access

A cliff face split into about sixteen big blocks on every repeat, each at its own height and angle and broken into flat, chipped facets, with cracks between the blocks, so the clay looks like quarried or weathered rock. Roll it over air-dry clay or foam for cliffs, cave walls, rocky hills and mountain passes, wrap it round a foam core for standing rocks, or use it on miniature bases and diorama ground.

Read more

Made with our free texture roller tool, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a roller 30 mm across and 80 mm long with an 8 mm bore, the pattern raised 1.5 mm and repeated twice round and twice along. The zip holds the roller and the tool's own fork handle with its two retaining pins, as two STL files, plus the pattern picture, so you can remake the roller at another size or depth.

Every roller in this set is the same size and fits the same 131 mm handle, so you print the handle once and after that only rollers: pull the two pins, swap the roller, push the pins back in.

Shown as a 3D render of the printed roller in its handle on the clay it has pressed, not a photo.

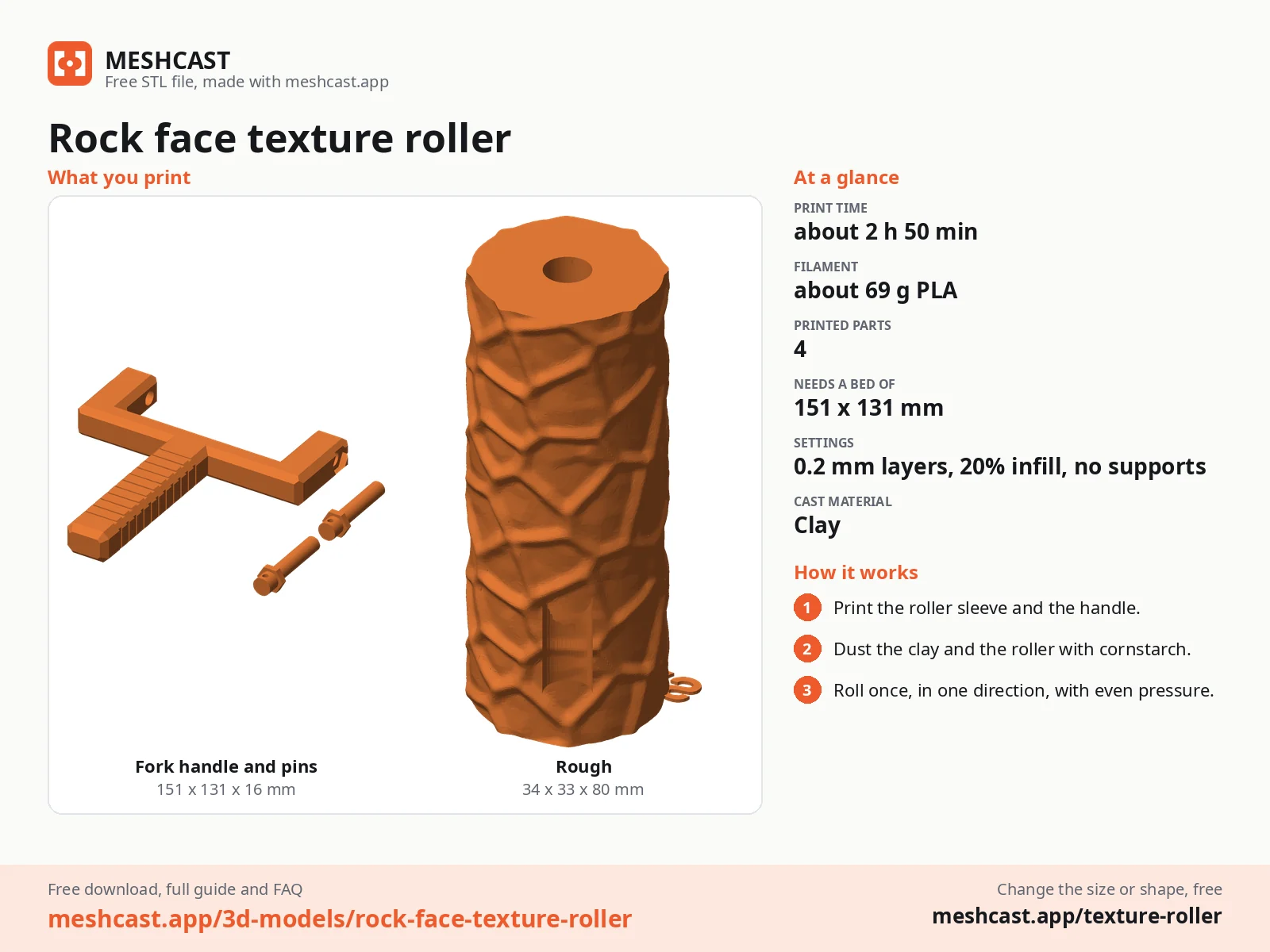

Rock face texture roller at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

4
  • About 69 g of PLA or PETG for the roller, the handle and its pins (about 32 g for a roller alone)
  • Something to texture: air-dry or polymer clay, or EVA foam warmed with a heat gun
  • A smooth work surface, and a rolling pin or two guide strips to roll the clay to an even thickness
  • A little cornstarch, or a water spray for ceramic clay, if it starts to stick

How to use it

5

  1. Print the roller standing on its end and the handle and pins lying flat, all as exported, no supports.

  2. Set the roller between the arms of the fork and push one pin through each arm into its bore, hex head outwards; the roller turns on the pins.

  3. Roll the clay to an even thickness first: 4 to 6 mm for terrain and slabs, 2 to 3 mm for jewellery and ornaments.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Pull the pins to swap to another roller from the set, and wash the roller in warm soapy water after use.

Print details

2 h 50 minPrint time
~69 gFilament
4Printed parts
33 × 33 × 80 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts4
Size (W x D x H)33 x 33 x 80 mm
Print bed needed151 x 131 mm, 81 mm tall
Filament~69 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: roller + fork handle and 2 pins (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-09-28

Pro early access until October 28, 2026, then free with any account.

Like it or post your print on Thingiverse

Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the texture roller guide.

rock texture rollercliff face texturecave wall terrainrocky terrain rollerminiature base texture

Questions about this design

How do I make standing rocks with the rock face texture roller?

Carve a rough block of insulation foam, cover it with a 3 to 4 mm skin of air-dry clay, and roll the texture over each face at a different angle so the facets do not line up. Press the edges together, let it dry, then prime and drybrush it.

How do I paint terrain made with the rock face texture roller?

Prime it black or dark grey, drybrush a mid grey over everything and a pale grey only on the sharp edges of the facets. A thin brown wash in the cracks and a few patches of flock or static grass on the ledges make it read as a real cliff.

Does the rock face texture roller fit the same handle as the other rollers?

Yes. Every roller in this set is 80 mm long and 30 mm across at the base, with an 8 mm bore, and every zip carries the same fork handle and pins, so you print the handle once and swap rollers by pulling the two pins.

How long does the rock face texture roller take to print?

About 2 h 50 min for everything on a current printer at 0.2 mm layers: about 1 h 15 min for the roller and 1 h 30 min for the handle and pins. Once you have the handle, each new roller is only the first part. The times are estimated from the parts' volume, not sliced.
