◆ Clay

Ruined plaster wall textured rolling pin

Crumbling plaster with the brickwork showing through, for ruined buildings on the tabletop. Ragged holes, cracks and bullet pocks.

Make your own texture roller Download free on Thingiverse

Want your own version? Make it free in our texture roller tool. A free account gives you free downloads every week.

3D render of the printed ruined plaster wall textured rolling pin, its patterned sleeve between two dark handles, resting on a slab of clay it has pressed with broken plaster over brickwork
Photo of a 3D printed textured rolling pin: a coral sleeve with raised hearts on two black handles, lying on cardboard
Photo of the three printed parts side by side: the black core handle with its locking lugs, the coral hearts sleeve and the black cap handle
Clay ~126 g

Old lime plaster over a running-bond brick wall, broken away in ragged patches so the bricks, about 10 by 5 mm with deep mortar lines, show through, the plaster itself cracked and pocked with a few round holes. Roll it into air-dry clay or heat-softened EVA foam for the walls of ruined houses, war-torn city buildings and dungeon corridors next to 28 and 32 mm miniatures, or into stoneware for rustic planters and mugs.

Read more

Made with our free texture roller tool in its Rolling pin style, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a sleeve 40 mm across and 100 mm long, the pattern raised 1.5 mm and repeated three times round and twice along. The sleeve file is then 1 mm shorter, 99 mm, so a printed sleeve turns freely between the handles. The zip holds the texture sleeve and the tool's own two rolling-pin handles, as two STL files, plus the pattern picture, so you can remake the sleeve at another diameter or depth.

Every sleeve in this set slides onto the same two handles: the core, 202 mm long overall, a handle with a 30 mm tube, and a cap that locks on with a quarter turn. Print the handles once, and after that only sleeves.

The first picture is a 3D render of this sleeve on the clay it has pressed. The two photos are our own test print of the rolling-pin system from the texture roller tool, with a hearts sleeve: put together, and as its three parts.

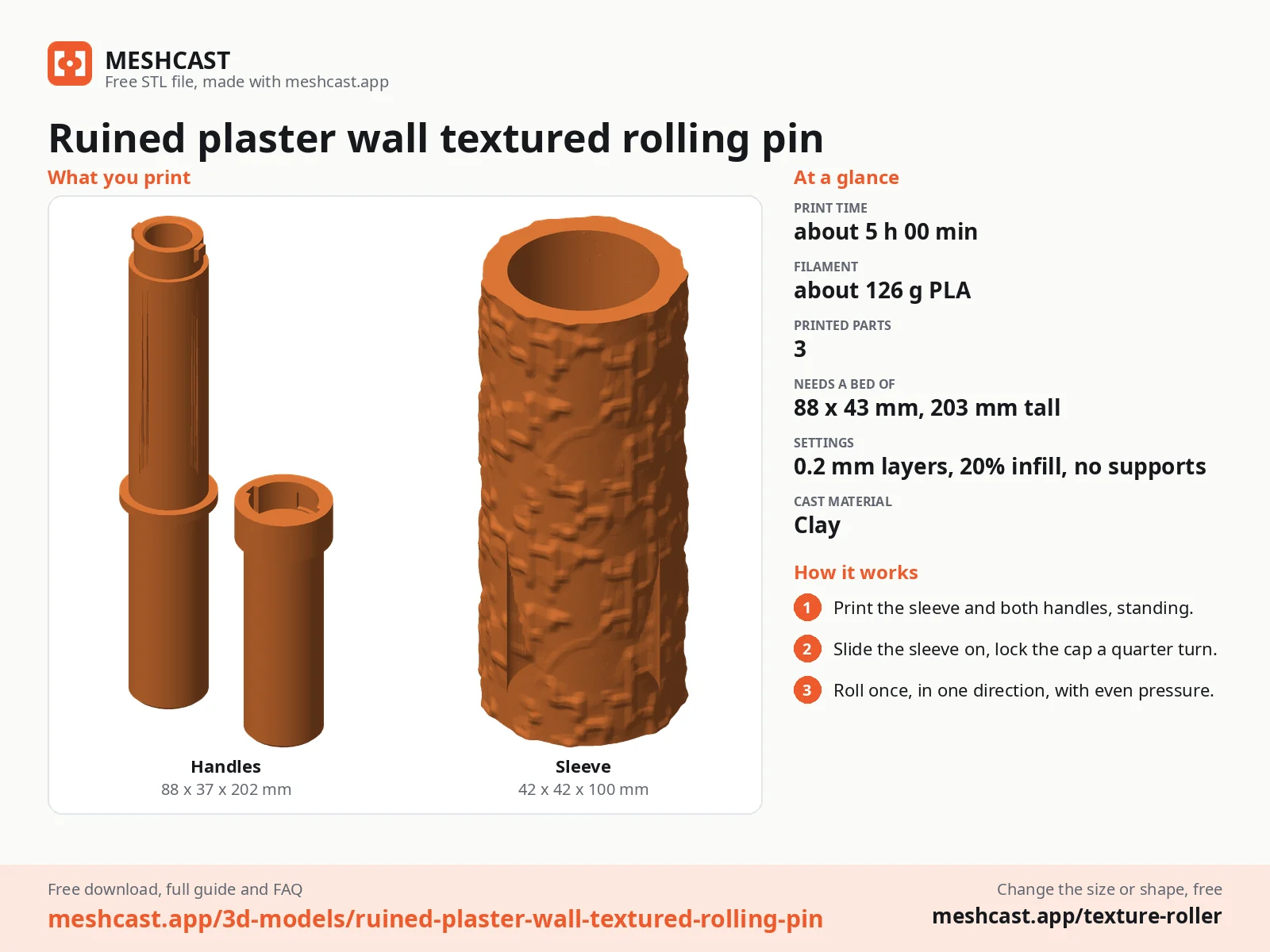

Ruined plaster wall textured rolling pin at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it
How it works

What you need

4
  • About 126 g of PLA or PETG for the sleeve and both handles (about 31 g for a sleeve alone)
  • Something to texture: air-dry or polymer clay, EVA foam warmed with a heat gun, or pottery clay
  • A printer that can print 207 mm tall: the core handle stands 202 mm on the bed
  • A little cornstarch, or a water spray for pottery clay, if it starts to stick

How to use it

5

  1. Print the sleeve and both handles standing on their ends, as exported, no supports. A 5 mm brim keeps the tall core steady.

  2. Slide the sleeve over the core's tube, push the cap on with its slots over the two lugs and turn it a quarter turn to lock.

  3. Roll the clay or foam to an even thickness first: 3 to 5 mm for walls, floors and terrain tiles, 1.5 to 2 mm for miniature bases.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Turn the cap back to swap to another sleeve from the set, and wash the sleeve in warm soapy water after use.

Print details

5 hPrint time
~126 gFilament
3Printed parts
42 × 42 × 99 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts3
Size (W x D x H)42 x 42 x 99 mm
Print bed needed88 x 43 mm, 203 mm tall
Filament~126 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: texture sleeve + 2 rolling-pin handles (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-09-28
Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the printed piece itself needs a commercial licence (Pro or Founder); passing on the file is not permitted on any plan. Full terms.

New to this? Read the texture roller guide.

textured rolling pinruined wall textureterrain texture rollertabletop terrainplaster and brick

Questions about this design

How do I paint terrain from the ruined plaster wall textured rolling pin?

Prime it dark brown, paint the plaster an off-white or pale ochre and the exposed bricks a brick red, then wash the whole wall with a brown or black wash. A light drybrush of cream on the plaster edges makes the broken rims stand out.

Is the ruined plaster wall textured rolling pin good for city ruins?

Yes, it is made for them. Roll EVA foam or air-dry clay about 3 mm thick, cut wall sections with broken tops, and glue them round a card or foam core. Every wall shows plaster torn off in a different place, so a ruined street never looks repeated.

Does the ruined plaster wall textured rolling pin fit the same handles as the other sleeves?

Yes. Every sleeve in this set is 99 mm long with a 30.6 mm bore, and every zip carries the same core and cap, so you print the handles once and swap sleeves with a quarter turn of the cap. The texture roller tool's own handles have been a smaller size since 28 September 2026, so use the handles from this zip.

How long does the ruined plaster wall textured rolling pin take to print?

About 5 h for everything on a current printer at 0.2 mm layers: about 1 h 15 min for the sleeve and 3 h 50 min for both handles. Once you have the handles, each new sleeve is only the first part. The times are estimated from the parts' volume, not sliced.
