◆ Clay

Sci-fi floor grating textured rolling pin

Slotted deck plates and mesh grilles in raised frames, for sci-fi and industrial terrain. Bolt heads at every corner.

Make your own texture roller

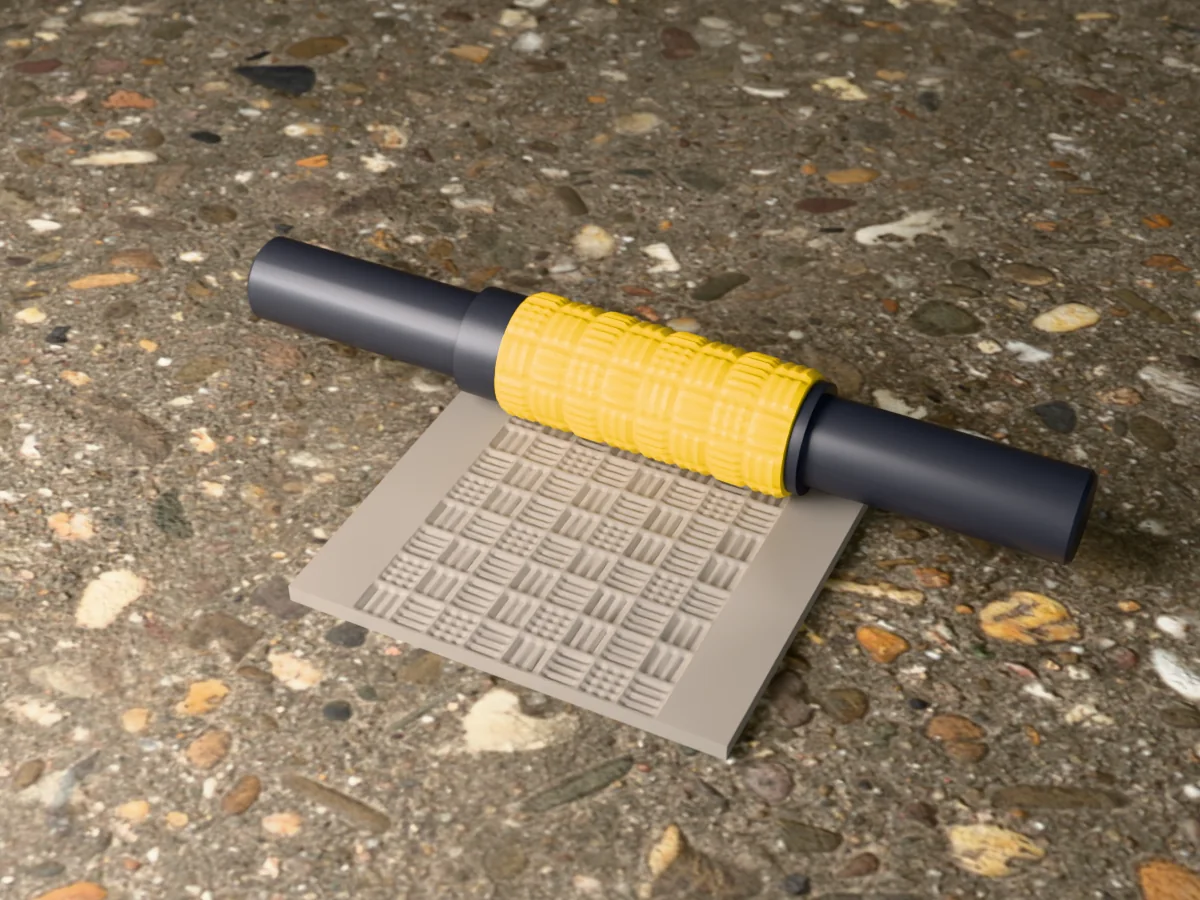

3D render of the printed sci-fi floor grating textured rolling pin, its patterned sleeve between two dark handles, resting on a slab of clay it has pressed with sci-fi floor grating
Clay ~129 g Pro early access

Deck plates about 14 by 12.5 mm in raised frames, each filled with deep slots about 1.8 mm wide between 1.6 mm bars, turned a quarter from one plate to the next, or with a square-mesh grille, and a round bolt head where four frames meet. Roll it into air-dry clay or heat-softened EVA foam for starship corridors, catwalks, hive city floors and industrial bases for 28 and 32 mm miniatures, or into polymer clay for sci-fi props and cosplay details.

Read more

Made with our free texture roller tool in its Rolling pin style, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a sleeve 40 mm across and 100 mm long, the pattern raised 1.5 mm and repeated three times round and twice along. The zip holds the texture sleeve and the tool's own two rolling-pin handles, as two STL files, plus the pattern picture, so you can remake the sleeve at another diameter or depth.

Every sleeve in this set slides onto the same two handles: the core, 202 mm long overall, a handle with a 30 mm tube, and a cap that locks on with a quarter turn. Print the handles once, and after that only sleeves.

Shown as a 3D render of the printed rolling pin on the clay it has pressed, not a photo.

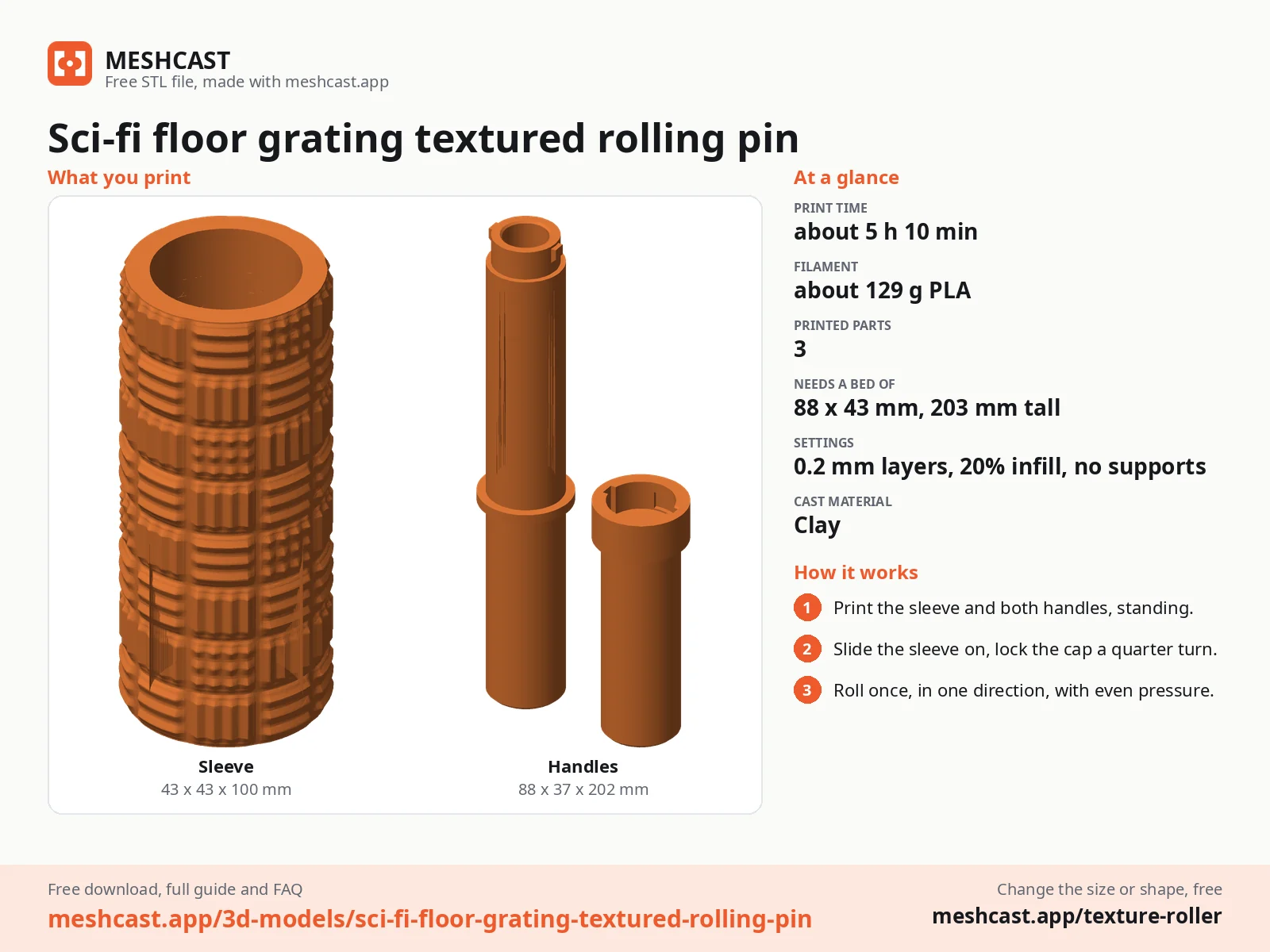

Sci-fi floor grating textured rolling pin at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

4
  • About 129 g of PLA or PETG for the sleeve and both handles (about 34 g for a sleeve alone)
  • Something to texture: air-dry or polymer clay, EVA foam warmed with a heat gun, or pottery clay
  • A printer that can print 207 mm tall: the core handle stands 202 mm on the bed
  • A little cornstarch, or a water spray for pottery clay, if it starts to stick

How to use it

5

  1. Print the sleeve and both handles standing on their ends, as exported, no supports. A 5 mm brim keeps the tall core steady.

  2. Slide the sleeve over the core's tube, push the cap on with its slots over the two lugs and turn it a quarter turn to lock.

  3. Roll the clay or foam to an even thickness first: 3 to 5 mm for walls, floors and terrain tiles, 1.5 to 2 mm for miniature bases.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Turn the cap back to swap to another sleeve from the set, and wash the sleeve in warm soapy water after use.

Print details

5 h 10 minPrint time
~129 gFilament
3Printed parts
43 × 43 × 100 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts3
Size (W x D x H)43 x 43 x 100 mm
Print bed needed88 x 43 mm, 203 mm tall
Filament~129 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: texture sleeve + 2 rolling-pin handles (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-09-28

Pro early access until October 28, 2026, then free with any account.

Like it or post your print on Thingiverse

Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the texture roller guide.

textured rolling pinfloor grating texturesci-fi terrainterrain texture rollerindustrial terrain

Questions about this design

How do I paint terrain from the sci-fi floor grating textured rolling pin?

Prime it black so the slots stay dark, then drybrush a gunmetal over the bars and frames and pick out the bolt heads in brass. Hazard stripes on a few frames and a little rust pigment in the corners make it look like a working deck.

Are the slots on the sci-fi floor grating textured rolling pin see-through?

No, they are pressed in, about 1 mm deep, not cut through. Painted black they read as open grating from above. For real see-through grating, roll thin clay, let it dry and cut the slots out with a hobby knife along the pressed lines.

Does the sci-fi floor grating textured rolling pin fit the same handles as the other sleeves?

Yes. Every sleeve in this set is 100 mm long with a 30.6 mm bore, and every zip carries the same core and cap, so you print the handles once and swap sleeves with a quarter turn of the cap. They also fit handles printed from the texture roller tool itself.

How long does the sci-fi floor grating textured rolling pin take to print?

About 5 h 10 min for everything on a current printer at 0.2 mm layers: about 1 h 20 min for the sleeve and 3 h 50 min for both handles. Once you have the handles, each new sleeve is only the first part. The times are estimated from the parts' volume, not sliced.
