Sci-fi panel texture roller

Deck plating with panel lines, rivets, vents and hatches, for sci-fi tabletop terrain. Rolls starship floors into clay or foam.

Make your own texture roller
3D render of the printed sci-fi panel texture roller in its dark fork handle, resting on a slab of clay it has pressed with sci-fi deck plating
Clay ~69 g Pro early access

Rows of metal deck plates of different lengths and heights, with pressed panel lines, rivets in the corners, vent slots and inset hatches: a starship corridor in miniature. Roll it into EVA foam or air-dry clay for sci-fi floors, bulkheads and bases for 28 and 32 mm miniatures, or into polymer clay for cyberpunk jewellery and props.

Read more

Made with our free texture roller tool, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a roller 30 mm across and 80 mm long with an 8 mm bore, the pattern raised 1.5 mm and repeated twice round and twice along. The zip holds the roller and the tool's own fork handle with its two retaining pins, as two STL files, plus the pattern picture, so you can remake the roller at another size or depth.

Every roller in this set is the same size and fits the same 131 mm handle, so you print the handle once and after that only rollers: pull the two pins, swap the roller, push the pins back in.

Shown as a 3D render of the printed roller in its handle on the clay it has pressed, not a photo.

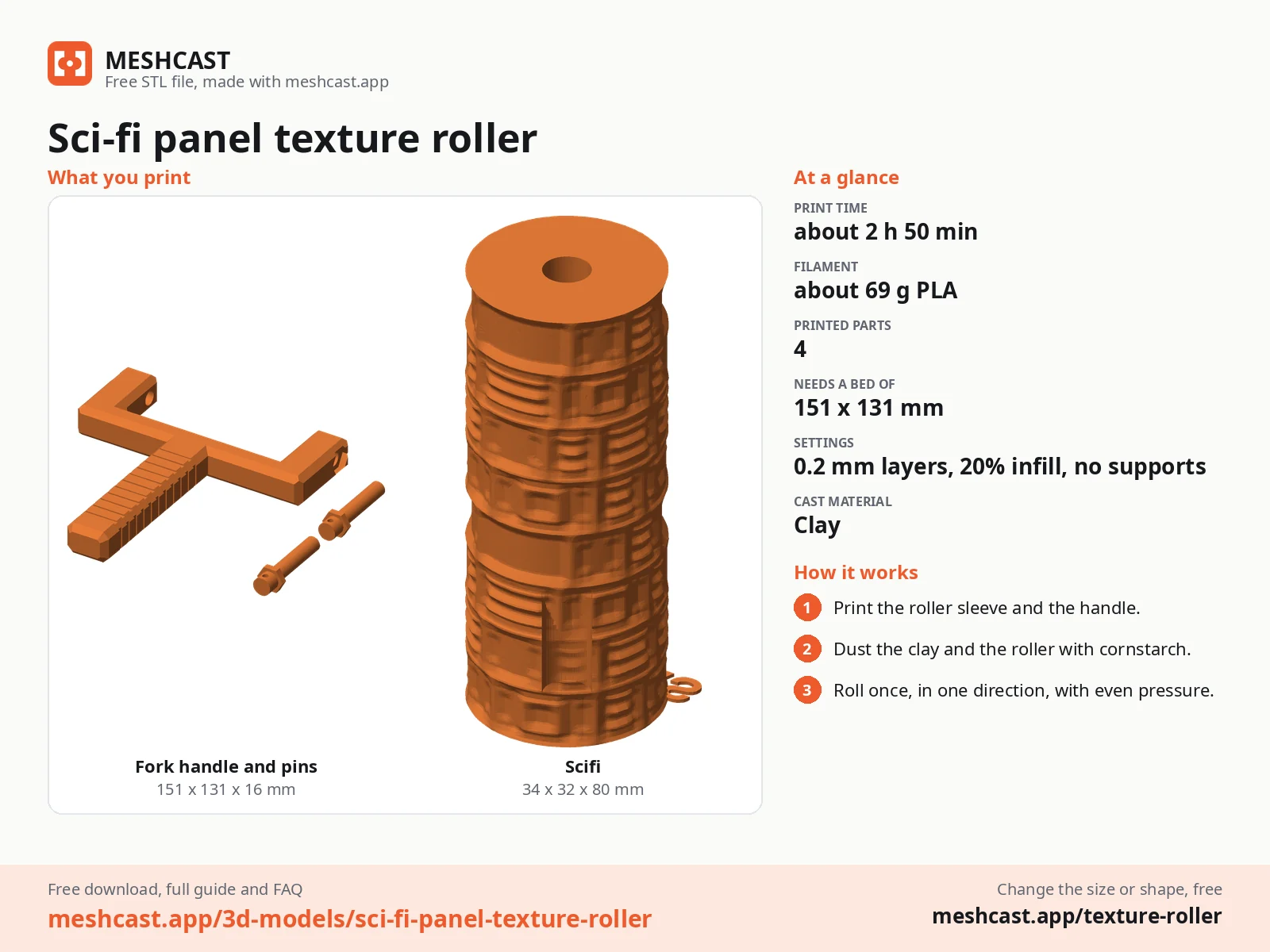

Sci-fi panel texture roller at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

4
  • About 69 g of PLA or PETG for the roller, the handle and its pins (about 32 g for a roller alone)
  • Something to texture: air-dry or polymer clay, or EVA foam warmed with a heat gun
  • A smooth work surface, and a rolling pin or two guide strips to roll the clay to an even thickness
  • A little cornstarch, or a water spray for ceramic clay, if it starts to stick

How to use it

5

  1. Print the roller standing on its end and the handle and pins lying flat, all as exported, no supports.

  2. Set the roller between the arms of the fork and push one pin through each arm into its bore, hex head outwards; the roller turns on the pins.

  3. Roll the clay to an even thickness first: 4 to 6 mm for terrain and slabs, 2 to 3 mm for jewellery and ornaments.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Pull the pins to swap to another roller from the set, and wash the roller in warm soapy water after use.

Print details

2 h 50 minPrint time
~69 gFilament
4Printed parts
33 × 32 × 80 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts4
Size (W x D x H)33 x 32 x 80 mm
Print bed needed151 x 131 mm, 81 mm tall
Filament~69 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: roller + fork handle and 2 pins (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-09-27

Pro early access until October 27, 2026, then free with any account.

Like it or post your print on Thingiverse

Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the texture roller guide.

sci-fi texture rollertabletop terrain rollerstarship floor texturesci-fi terrainminiature base texture

Questions about this design

How do I paint terrain from the sci-fi panel texture roller?

Prime it black, drybrush gunmetal and then silver over the plates so the panel lines and rivets stay dark, and pick out a few hatches in a hazard yellow. A thin orange-brown wash round the vents and rivets adds rust and grime.

What scale does the sci-fi panel texture roller suit?

The plates are about 10 mm deep and 8 to 16 mm long, with 1.6 mm rivets, which reads as heavy deck plating next to 28 and 32 mm miniatures. For 15 mm games, upload the pattern from the zip and raise the repeats.

Does the sci-fi panel texture roller fit the same handle as the other rollers?

Yes. Every roller in this set is 80 mm long and 30 mm across at the base, with an 8 mm bore, and every zip carries the same fork handle and pins, so you print the handle once and swap rollers by pulling the two pins.

How long does the sci-fi panel texture roller take to print?

About 2 h 50 min for everything on a current printer at 0.2 mm layers: about 1 h 15 min for the roller and 1 h 30 min for the handle and pins. Once you have the handle, each new roller is only the first part. The times are estimated from the parts' volume, not sliced.
