◆ Clay

Wood grain textured rolling pin

Flowing wood grain that bends round knots, for faux bois pottery and clay. Seamless, so a whole slab reads as one board.

Make your own texture roller Download free on Thingiverse

Want your own version? Make it free in our texture roller tool. A free account gives you free downloads every week.

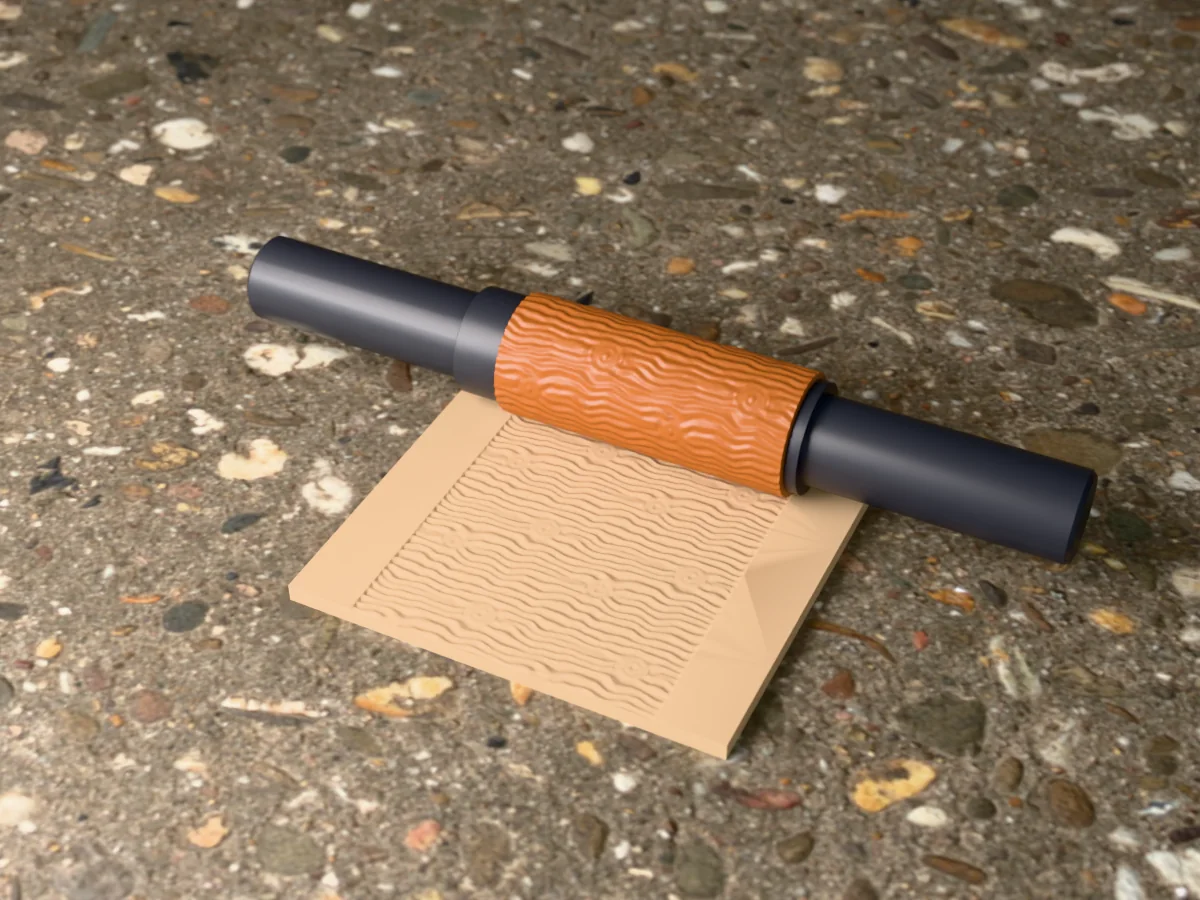

3D render of the printed wood grain textured rolling pin, its patterned sleeve between two dark handles, resting on a slab of clay it has pressed with wood grain with knots
Photo of a 3D printed textured rolling pin: a coral sleeve with raised hearts on two black handles, lying on cardboard
Photo of the three printed parts side by side: the black core handle with its locking lugs, the coral hearts sleeve and the black cap handle
Clay ~128 g

Flowing grain lines about 3 mm apart that swerve round a knot here and there, the grain of a sawn plank. Faux bois, wood made in clay. Roll it into stoneware for faux bois planters, mugs and serving boards, into polymer clay for wood-look jewellery, or into air-dry clay for signs and ornaments.

Read more

Made with our free texture roller tool in its Rolling pin style, not modelled by hand: we drew the pattern in code as a seamless picture, uploaded it, and set a sleeve 40 mm across and 100 mm long, the pattern raised 1.5 mm and repeated three times round and twice along. The sleeve file is then 1 mm shorter, 99 mm, so a printed sleeve turns freely between the handles. The zip holds the texture sleeve and the tool's own two rolling-pin handles, as two STL files, plus the pattern picture, so you can remake the sleeve at another diameter or depth.

Every sleeve in this set slides onto the same two handles: the core, 202 mm long overall, a handle with a 30 mm tube, and a cap that locks on with a quarter turn. Print the handles once, and after that only sleeves.

The first picture is a 3D render of this sleeve on the clay it has pressed. The two photos are our own test print of the rolling-pin system from the texture roller tool, with a hearts sleeve: put together, and as its three parts.

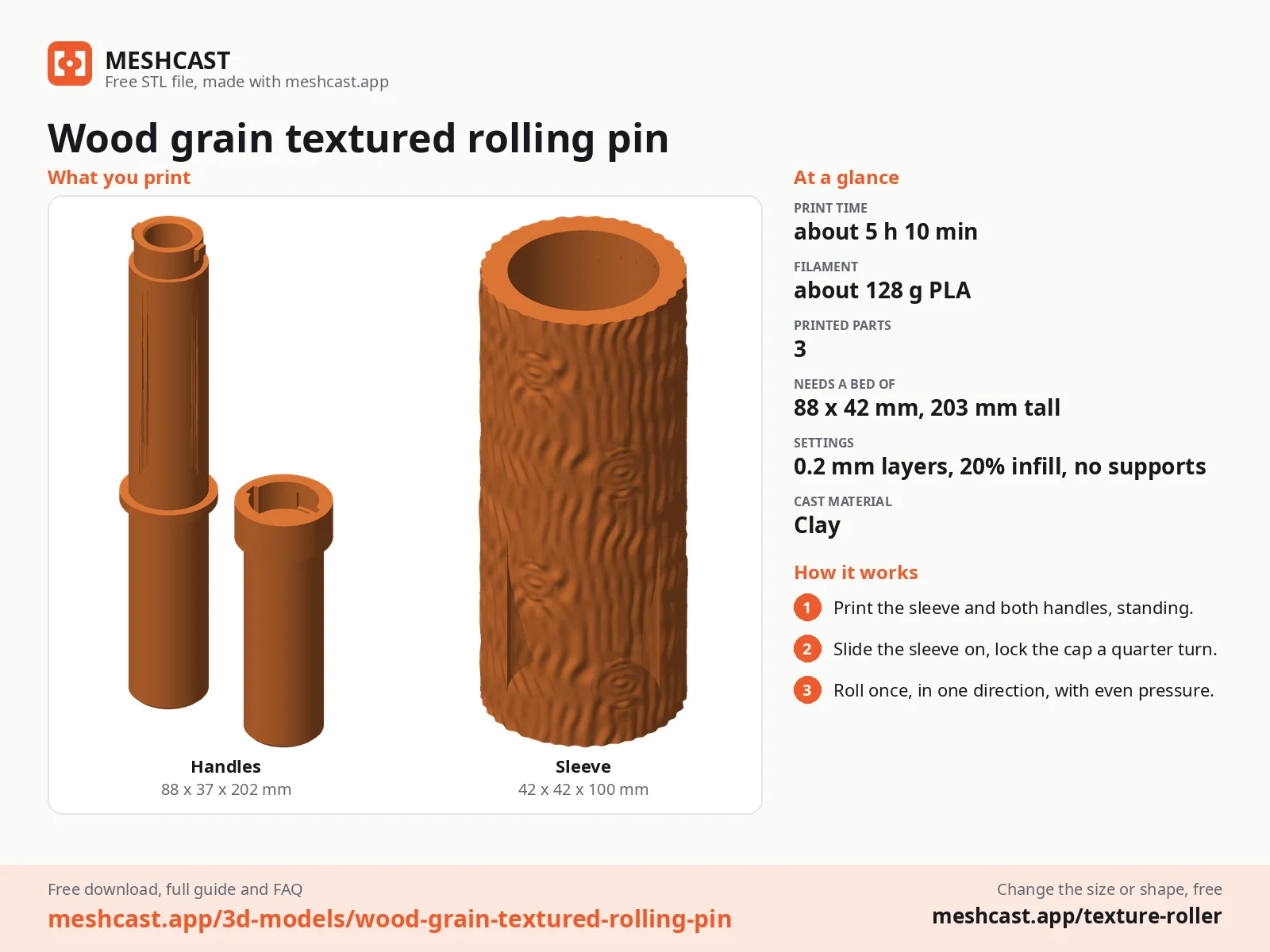

Wood grain textured rolling pin at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it
How it works

What you need

4
  • About 128 g of PLA or PETG for the sleeve and both handles (about 33 g for a sleeve alone)
  • Something to texture: stoneware, earthenware or porcelain slabs, or air-dry or polymer clay
  • A printer that can print 207 mm tall: the core handle stands 202 mm on the bed
  • A little cornstarch, or a water spray for pottery clay, if it starts to stick

How to use it

5

  1. Print the sleeve and both handles standing on their ends, as exported, no supports. A 5 mm brim keeps the tall core steady.

  2. Slide the sleeve over the core's tube, push the cap on with its slots over the two lugs and turn it a quarter turn to lock.

  3. Roll the clay to an even thickness first: 5 to 8 mm for pottery slabs, 2 to 3 mm for jewellery and ornaments.

  4. Roll across once, in one direction, with steady, even pressure, and lift off at the end. Going back and forth doubles the pattern.

  5. Turn the cap back to swap to another sleeve from the set, and wash the sleeve in warm soapy water after use.

Print details

5 h 10 minPrint time
~128 gFilament
3Printed parts
42 × 42 × 99 mmSize (W x D x H)
All print details
Print details
Works withClay
Printed parts3
Size (W x D x H)42 x 42 x 99 mm
Print bed needed88 x 42 mm, 203 mm tall
Filament~128 g
Layer height0.2 mm
Infill20%
SupportsNot needed
DownloadZIP: texture sleeve + 2 rolling-pin handles (2 STL) + pattern picture (PNG) + print sheet + README
Added2026-09-27
Make your own texture roller →

Made with the free Texture roller generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the printed piece itself needs a commercial licence (Pro or Founder); passing on the file is not permitted on any plan. Full terms.

New to this? Read the texture roller guide.

textured rolling pinwood grain texturefaux boispottery texture rollerclay texture roller

Questions about this design

How do I make faux bois pottery with the wood grain textured rolling pin?

Texture a stoneware slab, build the piece, and brush a brown iron oxide or underglaze over it once it is bone dry. Wipe the surface back with a damp sponge so the colour stays in the grain lines, then glaze clear or honey.

Does the wood grain textured rolling pin show a seam?

No. The grain is drawn to repeat exactly round the sleeve and along it, so a long slab rolled in one pass reads as one continuous board. The pattern repeats every 42 mm round the pin, with two knots on each repeat.

Does the wood grain textured rolling pin fit the same handles as the other sleeves?

Yes. Every sleeve in this set is 99 mm long with a 30.6 mm bore, and every zip carries the same core and cap, so you print the handles once and swap sleeves with a quarter turn of the cap. The texture roller tool's own handles have been a smaller size since 28 September 2026, so use the handles from this zip.

How long does the wood grain textured rolling pin take to print?

About 5 h 10 min for everything on a current printer at 0.2 mm layers: about 1 h 20 min for the sleeve and 3 h 50 min for both handles. Once you have the handles, each new sleeve is only the first part. The times are estimated from the parts' volume, not sliced.
