John's Darts dart holder

A dartboard stand with JOHN'S DARTS round the case, as an example of a name holder. Swap in any name for free.

Make your own dart holder Download free on Thingiverse
3D render of the printed personalized dart holder: a round black case with JOHN'S DARTS raised in white round its side, a black and white dartboard face with a green ring and red bullseye, and three darts standing in it
Print only ~82 g

A desk and shelf stand for darts that looks like a small dartboard, with JOHN'S DARTS raised in white round its black case, a black and white sectored face on top, a green ring and a red bullseye. Each of the 20 wedges has a hole for a dart, and the bullseye holds three more, so a player's own set stands point down on the shelf, ready for the next game. A named holder like this is a birthday or Christmas gift for a darts player that takes an evening to print.

Read more

Made with our free dart holder maker, not modelled by hand: we typed JOHN'S DARTS into its text box, kept the Bold & Blocky font and the page's other defaults, and pressed Download. Make your own the same way with any name up to 14 characters: the tool wraps it round the case and scales it to fit the 20 mm rim. The zip holds exactly what it gives you: the four parts as separate STLs, and a 3MF with every part as its own coloured object, already nested, for a multi-material printer.

Assembled it is 101 mm across and 20 mm tall. The face drops into the top of the case, the green ring into the face and the red bullseye into the ring, and the holes line up by themselves. On a single-colour printer the face still comes out in two colours: print it in white and change to black at 3.4 mm, where the black wedges, the rim and the dividing lines begin.

Shown as a 3D render of the printed holder with a set of darts standing in it, not a photo.

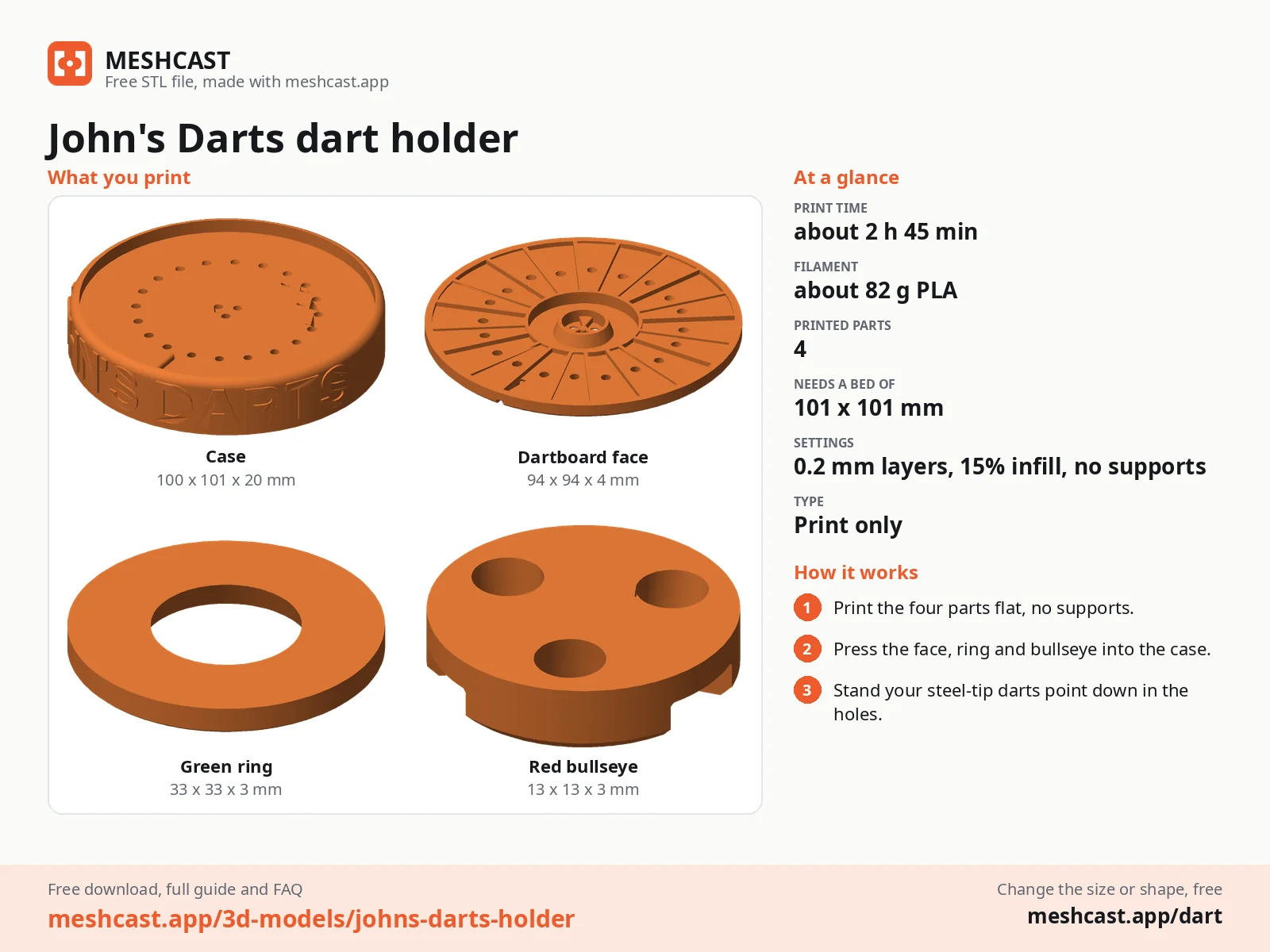

John's Darts dart holder at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

3
  • About 82 g of PLA or PETG: mostly black for the case and the face, plus a little white, green and red
  • Steel-tip darts to stand in it (soft-tip points are too wide for the holes)
  • A drop of glue, if the face sits loose in the case

How to make it

5

  1. Print the case, the face, the green ring and the red bullseye as exported, flat side down, no supports.

  2. For a two-colour face on one extruder, start it in white and change to black at 3.4 mm.

  3. Press the face into the top of the case, turning it until its holes sit over the holes in the case.

  4. Press the green ring into the middle of the face and the red bullseye into the ring.

  5. Stand your darts point down in the holes: one in each of the 20 wedges, three in the bullseye.

Print details

2 h 45 minPrint time
~82 gFilament
4Printed parts
101 × 101 × 20 mmSize (W x D x H)
All print details
Print details
TypePrint only
Printed parts4
Size (W x D x H)101 x 101 x 20 mm
Print bed needed101 x 101 mm, 21 mm tall
Filament~82 g
Layer height0.2 mm
Infill15%
SupportsNot needed
DownloadZIP: case, dartboard face, green ring and red bullseye (4 STLs) + complete coloured 3MF + print sheet + README
Added2026-09-29
Make your own dart holder →

Made with the free Dart holder generator. Upload your own drawing and get the same kind of part built from it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the dart guide.

dart holderpersonalized dart holdername dart holderdarts giftgift for himdartboarddarts accessoriesdart stand

Questions about this design

How do I change the name on the JOHN'S DARTS holder?

Open the free dart holder maker, type another name (up to 14 characters) and download. It rebuilds the case with the new name in your browser; the face, the green ring and the red bullseye in this zip fit every case it makes.

Does the apostrophe on the JOHN'S DARTS holder print cleanly?

Yes. It is raised 1.5 mm like the letters and about as wide as a letter stroke, so a 0.4 mm nozzle prints it without supports. On the 3MF it is part of the white name object, so it changes colour with the letters.

Can I print the JOHN'S DARTS holder on a single-colour printer?

Yes. Print the four parts one at a time and press them together. For the black and white face, start it in white and add a colour change to black at 3.4 mm: everything above that height is the black wedges, the rim and the dividing lines. The name round the case prints in the case colour unless you paint it or use the 3MF.

How long does the JOHN'S DARTS holder take to print?

About 2 h 45 min and 82 g of PLA for all four parts on a current printer at 0.2 mm layers, most of it the case (65.8 g). The time is estimated from the files, not sliced; the ring and the bullseye take only a few minutes each.
