Return address embosser

A three-line return address embosser with a little house: YOUR NAME, street and town, for envelopes.

Make your own embosser Download free on Thingiverse

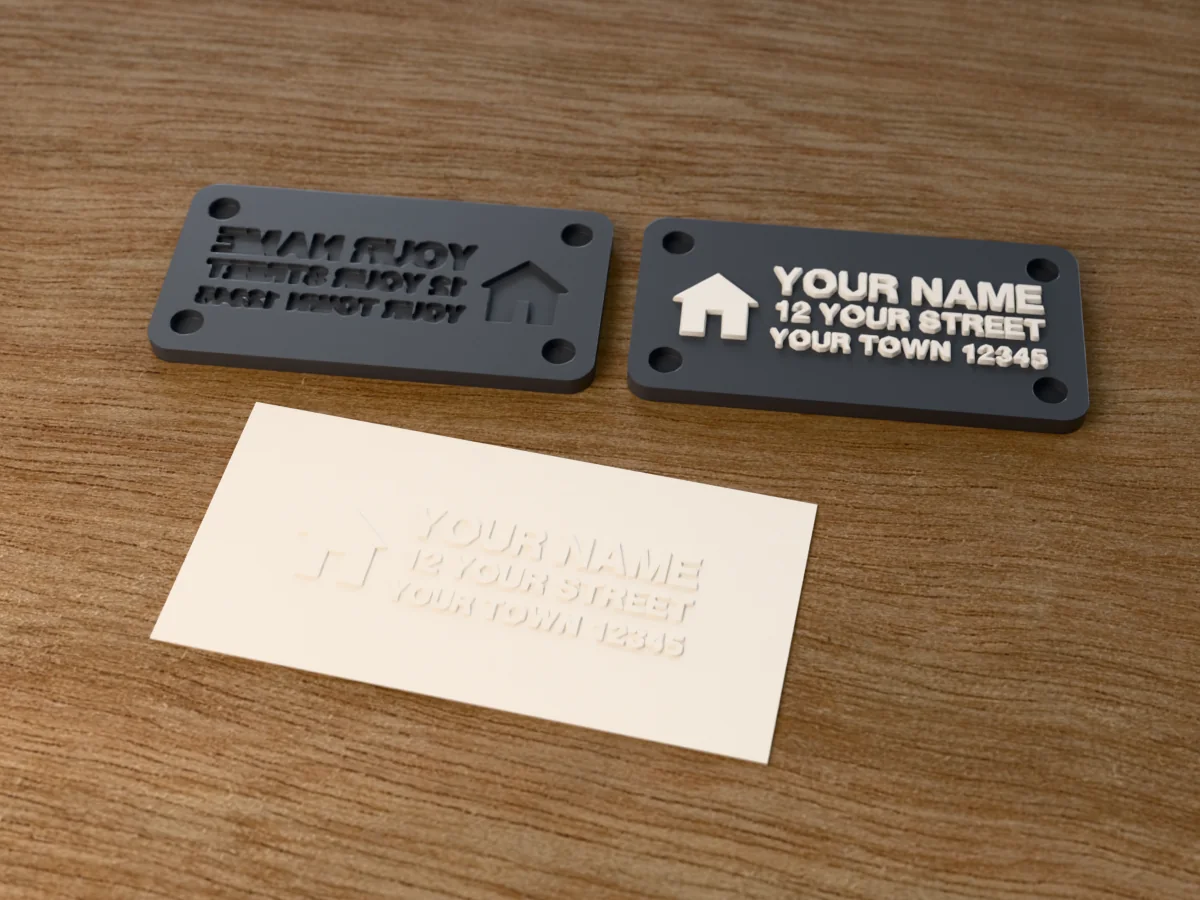

3D render of the printed return address embosser, its two plates side by side, with the raised die and the matching cavity, next to a card embossed with its mark
Paper ~18 g

A return address in three lines of bold capitals, YOUR NAME, 12 YOUR STREET and YOUR TOWN 12345, with a small house on the left. Emboss the back flap of every envelope and the top of your letter paper. The address is a placeholder: redraw it with your own, or type it in the free embosser maker and upload the house as your picture.

Read more

Made with our free paper embosser maker, not modelled by hand: we drew the picture in code, uploaded it and set a 84 by 44 mm plate; the page traced it into the raised die and cut the matching cavity into the other plate. It prints as two loose plates, the male die with the raised design and the female die with the matching cavity, with pockets for 4 x 6 x 2 mm magnets that snap them into line. A plate this long presses more evenly by hand than on a hinge. The design is 70 by 21 mm with a 1 mm relief. The zip holds exactly what the tool gives you, as an STL and as a 3MF with the relief as its own coloured part, plus the picture, to change and upload again.

Shown as a 3D render of the printed embosser and a card embossed with its mark, not a photo.

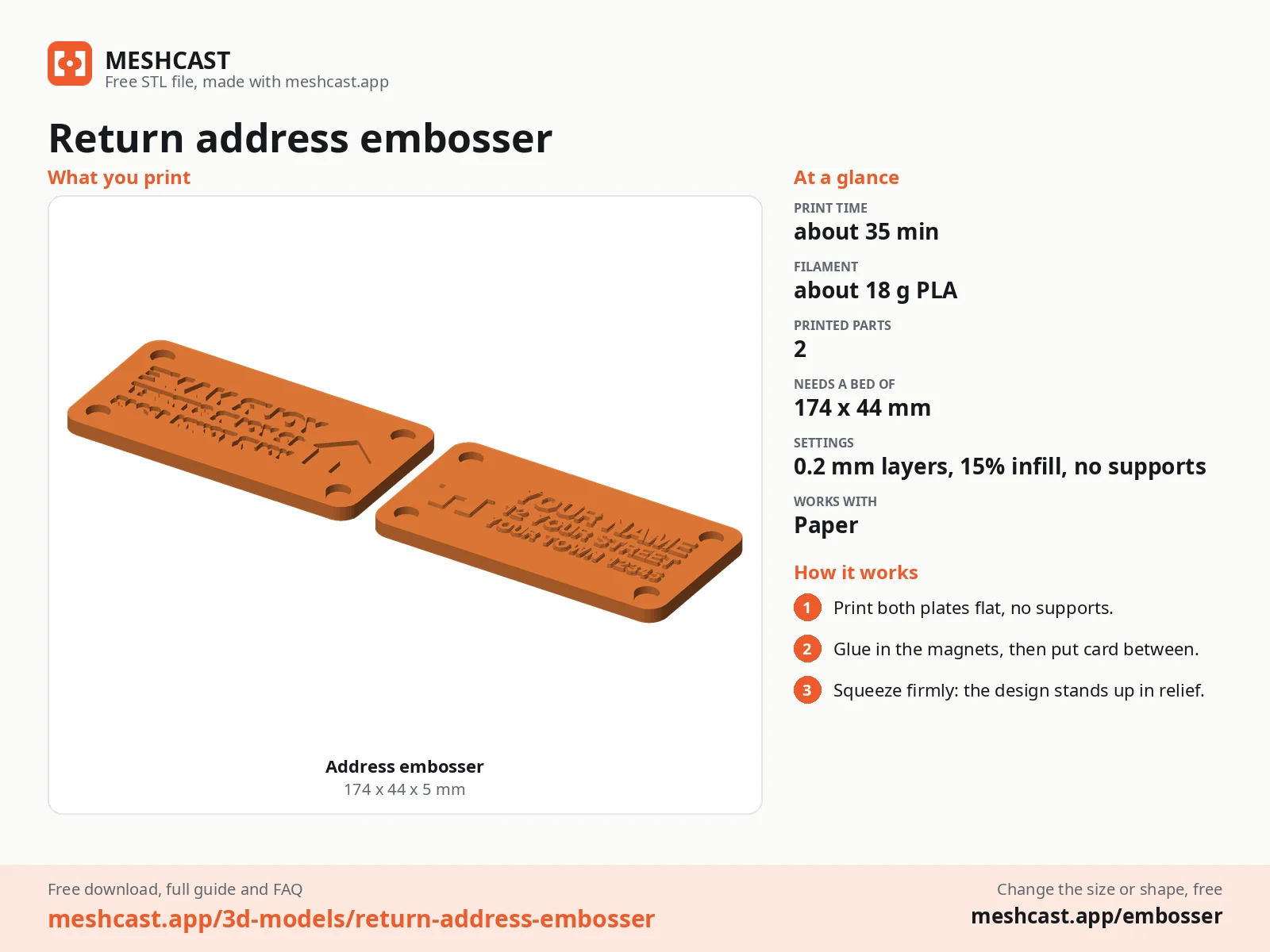

Return address embosser at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

3
  • Card or paper of 160 to 300 gsm: cardstock, kraft tags, envelopes or letter paper
  • About 18 g of PLA or PETG
  • 4 neodymium disc magnets, 6 x 2 mm, and a drop of super glue

How to use it

5

  1. Print both plates as exported, face up, no supports.

  2. Stack the magnets so they attract, then glue one into each pocket, one at a time, so the plates snap together the right way round.

  3. Lay the card on the male die (the one with the raised design).

  4. Set the female die on top, let the magnets line it up, and squeeze the stack firmly, or clamp it for thick card.

  5. Lift the top plate off and take the card out: the mark stands up on the side that faced the female die.

Print details

35 minPrint time
~18 gFilament
2Printed parts
84 × 44 × 8 mmSize (W x D x H)
All print details
Print details
Works withPaper
Printed parts2
Size (W x D x H)84 x 44 x 8 mm
Print bed needed174 x 44 mm, 6 mm tall
Filament~18 g
Layer height0.2 mm
Infill15%
SupportsNot needed
DownloadZIP: both embosser plates (STL + coloured 3MF) + print sheet + artwork (PNG, SVG) + README
Added2026-09-28
Make your own embosser →

Made with the free Paper embosser generator. Upload your own shape and get the same kind of tool built from it, in your browser.

Download free on Thingiverse

Free, no account needed. Opens Thingiverse in a new tab.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the embosser guide.

return address embosseraddress embosserenvelope embosserpersonalized addressletter writing

Questions about this design

How do I put my address on the return address embosser?

Open address.svg from the zip in any vector editor or even a text editor, replace the three lines with your name, street and town, save it as a PNG, and upload it to the free embosser maker with an 84 by 44 mm plate.

Why is the return address embosser held by magnets?

At 84 mm the plate is too long for the print-in-place hinge to press evenly, so it is made as two loose dies with four 6 by 2 mm magnets that line them up. Squeeze by hand or in a clamp for thick envelopes.

How long does the return address embosser take to print?

About 35 minutes and 18 g of PLA on a current printer at 0.2 mm layers, for both plates. The time is estimated from the files, not sliced; at 0.12 mm layers for the crispest design it takes about half as long again.
