◆ Candle wax

Gingerbread house candle mold

A gingerbread house candle, 71 mm tall: piped icing on the gables, drips under the eaves, a door, windows and a chimney. A rigid two-part print.

Make your own candle mold

Need it bigger, smaller or from your own model? Make it free in our rigid box mold tool. With a free account, every mold you make is saved under My molds, with its settings and material amounts.

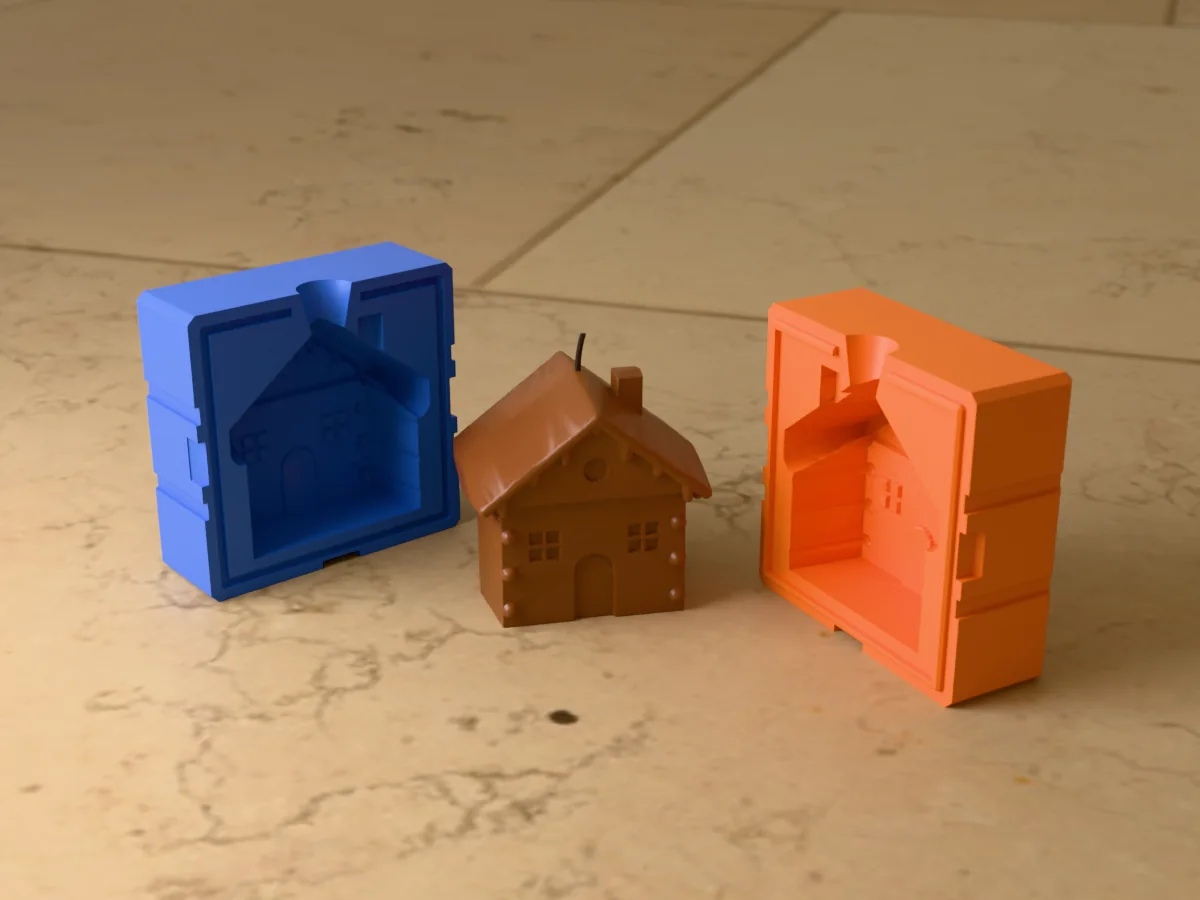

3D render of a brown gingerbread house candle with icing on the roof edges, a door and windows, between the two printed halves of its rigid two-part mold
Candle wax ~272 g

A gingerbread house candle 71 mm tall, 60 mm wide and 50 mm deep: a pitched roof overhanging the walls, piped icing along both gables with drips hanging from it, icing drips under the eaves, a chimney, and on the front and back a round-topped door, two four-pane windows, a round gable window and three sweets up each corner.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The gables face the two halves, so the door, windows and icing on each come straight off, and the tool's own seam check finds nothing stuck. No silicone needed.

Pour it in a warm gingerbread brown and pick out the icing in white candle paint, or pour it white for a snowy cottage. A favourite for Christmas markets and gift boxes. The zip carries both halves, the house master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.

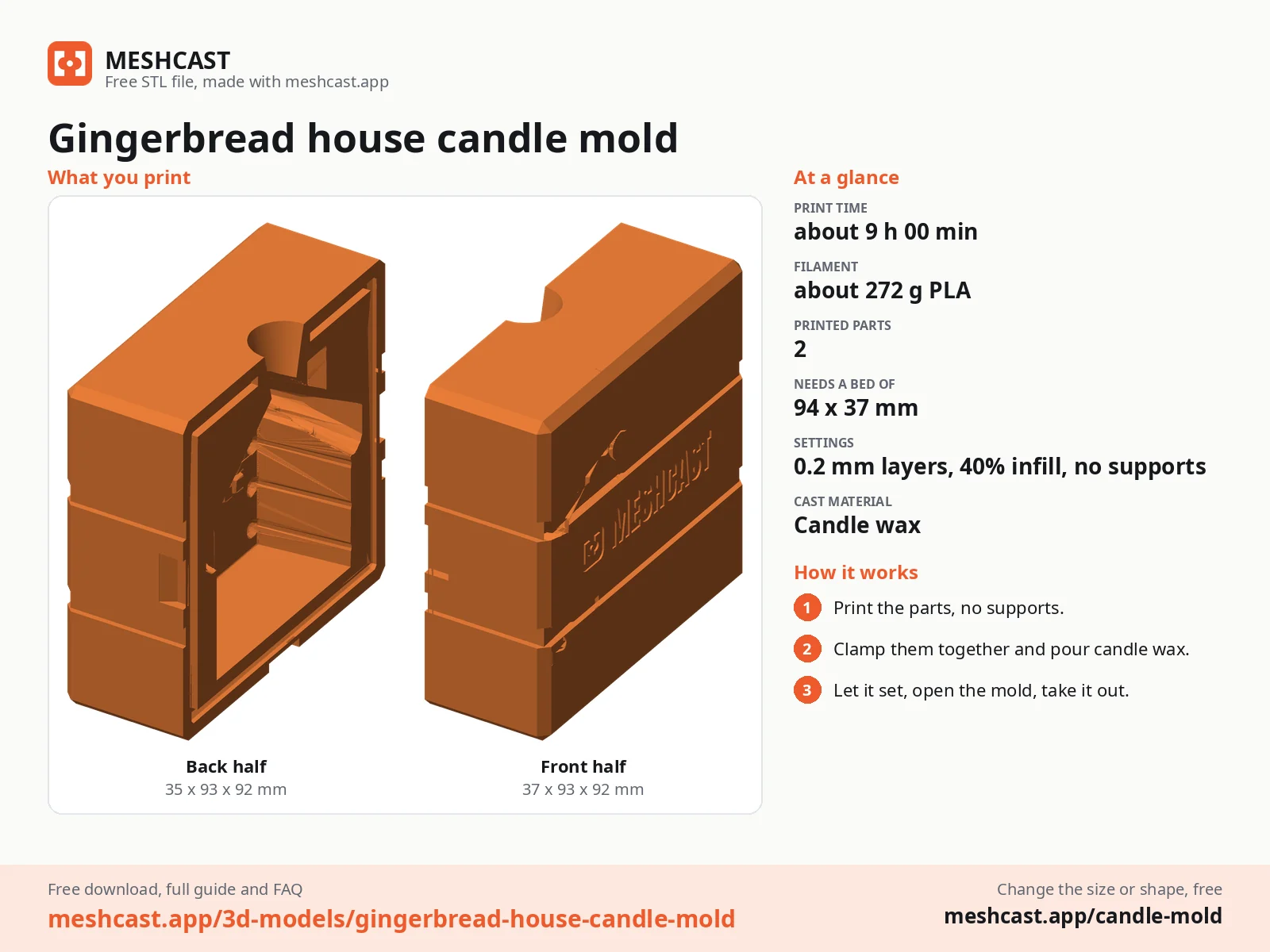

Gingerbread house candle mold at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it
How this mold works

What you need

4
  • About 167 g of pillar wax: the cavity holds 186 ml
  • A tabbed, primed wick for a 50 mm candle, about 90 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel
  • White candle paint and a fine brush for the icing (optional)

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports. PETG takes hot wax best.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets, cut the pour stub off along the roof ridge and trim the wick.

Print details

9 hPrint time
~272 gFilament
2Printed parts
72 × 93 × 92 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)72 x 93 x 92 mm
Print bed needed94 x 37 mm, 92 mm tall
Filament~272 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-10-30
Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

ZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

gingerbread house candle moldchristmas house candlegingerbread candle moldchristmas candle moldtwo part candle mold

Questions about this design

How do I paint the icing on the gingerbread house candle?

Pour the house in a brown candle wax and let it cool fully. Then trace the raised icing on the gables, the drips and the sweets with white candle paint, or acrylic mixed with candle medium, on a fine brush. A dot of red or green on each sweet finishes it.

Where does the wick come out of the gingerbread house?

Out of the middle of the roof ridge, where the pour funnel sits. Drop a tabbed wick in before you close the halves so the tab sits in the middle of the house floor. The house is 50 mm deep, so a wick for a 50 mm pillar burns it evenly.

Can I use the gingerbread house mold for soap?

Yes. Pour melt-and-pour soap at 55 to 60 C instead of wax, spritz the funnel with alcohol to pop the bubbles and leave out the wick. A brown base with a white soap drizzled into the icing lines before the main pour makes a two-tone house.
