◆ Candle wax
A tall wavy candle with "good vibes" in raised script up the front, cast face down in a silicone mold you pour yourself.
Want your own version? Make it free in our tray mold tool. A free account gives you free downloads every week.
A wavy slab candle 128 mm tall, 72 mm wide at the widest and 26 mm deep: the whole slab snakes gently side to side as it rises, the front edge is softly rounded, and "good vibes" in raised script runs straight up the middle of the front, reading bottom to top. The back is flat. It holds about 171 ml of wax.
Made with our tray mold generator in its flexible silicone tray mode, the way candles like this are made: print one part, a caster with the candle standing in it face up, pour silicone over it, and the silicone you peel out is a one-piece mold. The candle is cast face down in it and the wax goes in through the open back, so there is no seam anywhere and the script comes out crisp. The caster wall follows the wave, so it takes less silicone than a square box.
A happy candle for a shelf or a housewarming: pour it in white, butter yellow or peach with a citrus scent, and brush the script in a brighter shade. The zip carries the printed caster exactly as the tool exported it, the candle on its own as an STL, the master uploaded to the tool, and a print and pour sheet with the silicone figure the tool measured.
Shown as a 3D render from above of the candle lying face up, with the silicone mold it is cast in behind it, not a photo.
Print the caster as exported, open side up, no supports. The silicone copies every layer line on the candle's face, so sand the script and the front lightly or brush on a thin coat of XTC-3D first for a smooth candle.
Mix 181 ml of silicone in one batch and pour it into one corner of the caster in a thin stream until it covers the candle and is level with the rim. Tap the caster on the table for a minute and let it cure as long as its datasheet says.
Peel the cured silicone out. That is your mold: a candle-shaped cavity, face down, open at the back.
Set the mold level, hold the wick upright in the middle with a wick bar across the top, and pour the wax at 65 to 75 C. Once it is firm but still warm, top it up: wax shrinks and the second pour fills the dip.
Cool fully, flex the silicone back from the candle and peel it out face up. Trim the wick.

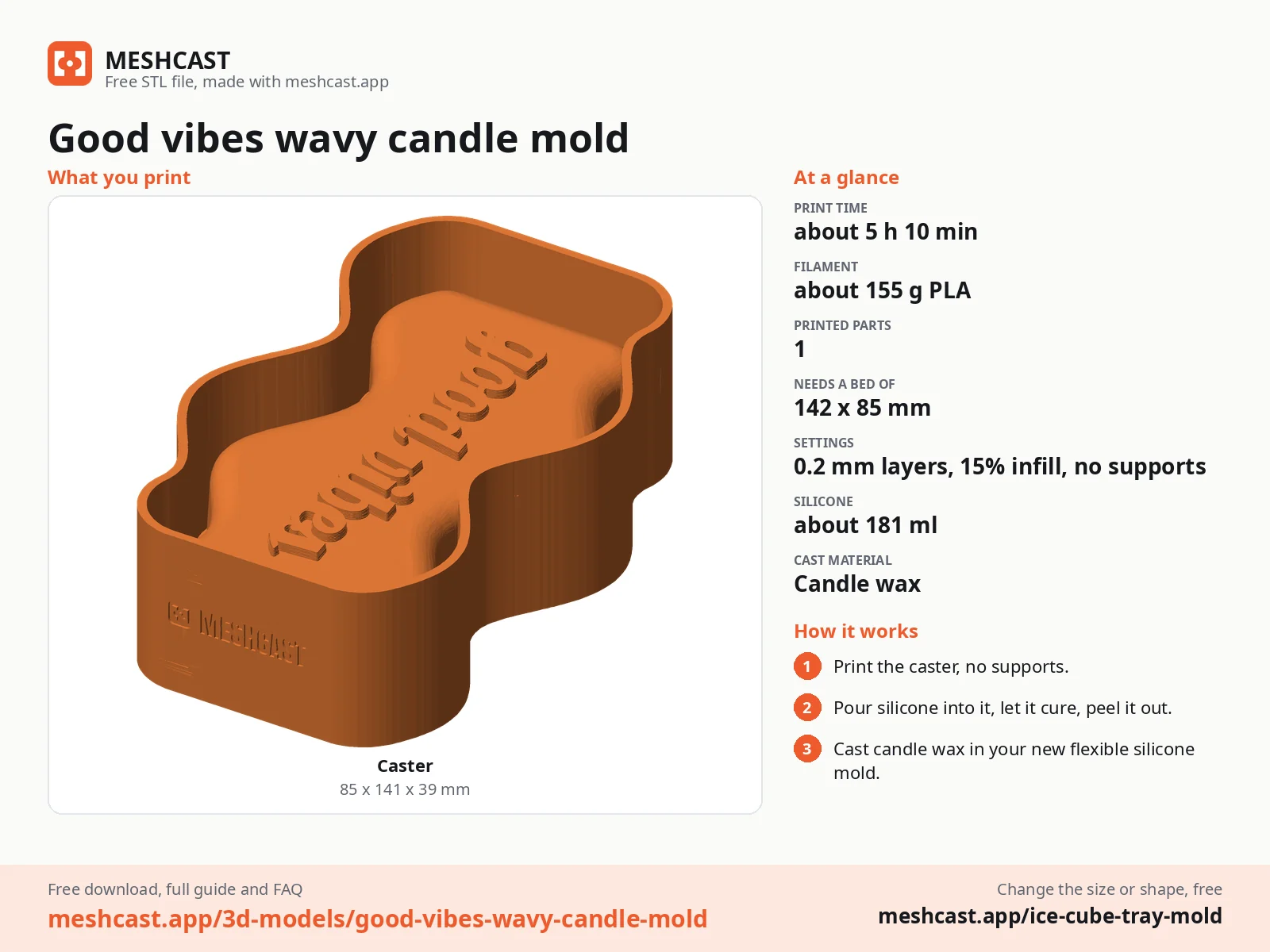

Print details
| Cast material | Candle wax |
|---|---|
| Printed parts | 1 |
| Size (W x D x H) | 85 x 141 x 39 mm |
| Print bed needed | 142 x 85 mm, 39 mm tall |
| Filament | ~155 g |
| Layer height | 0.2 mm |
| Infill | 15% |
| Supports | Not needed |
| Download | ZIP: printed caster (STL) + one candle (STL) + tool master (STL) + print and pour sheet |
| Added | 2026-10-05 |
Made with the free Tray mold generator. Upload your own model and get the same kind of mold built around it, in your browser.
Free download. Opens the Thingiverse listing in a new tab.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
New to casting? Read the ice cube tray mold guide.
Pour the candle in one colour, then once it is cold dry-brush the letters with a little mica powder, or rub candle paint over them and wipe the flat face clean with a soft cloth. The raised script catches the colour and the slab stays plain.
A one-piece silicone mold has no seam, so nothing crosses the script, and the flexible silicone peels off the raised letters instead of the letters having to slide out of a rigid half. It is how the wavy logo candles you see on Instagram and Etsy are made: cast face down, poured from the back.
Use a soy pillar blend, not a container soy wax: container soy is too soft to stand on its own and smears the letters. Paraffin pillar wax, a pillar soy blend or beeswax all release cleanly from silicone.
Candle wax
A tall wavy candle with "sexy" in raised script up the front, cast face down in a silicone mold you pour yourself.
Candle wax
A tall wavy candle with "self love" in raised script up the front, cast face down in a silicone mold you pour yourself.
Candle wax

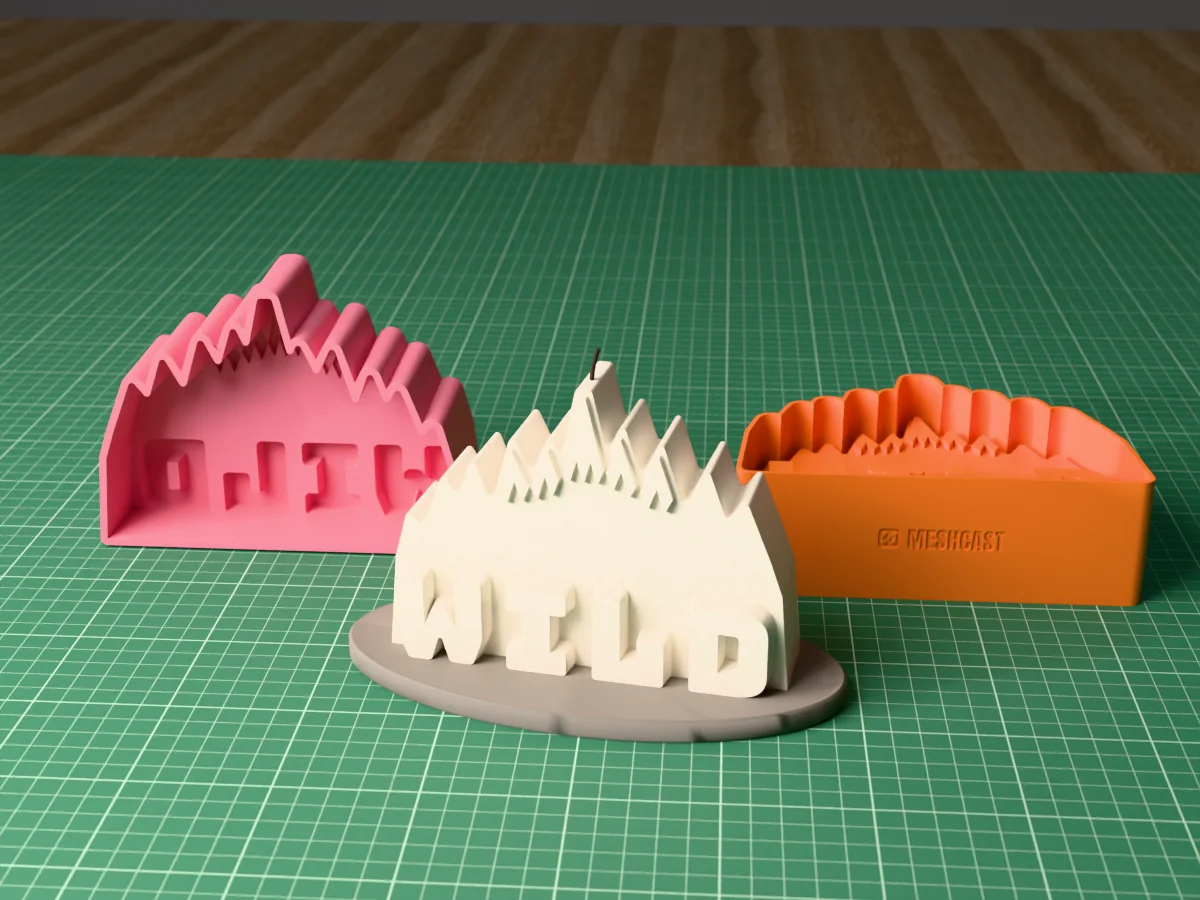

Big bold WILD letters standing in front of a jagged mountain range: a sculptural word candle, cast face down in a one-piece silicone mold you pour yourself.
Candle wax

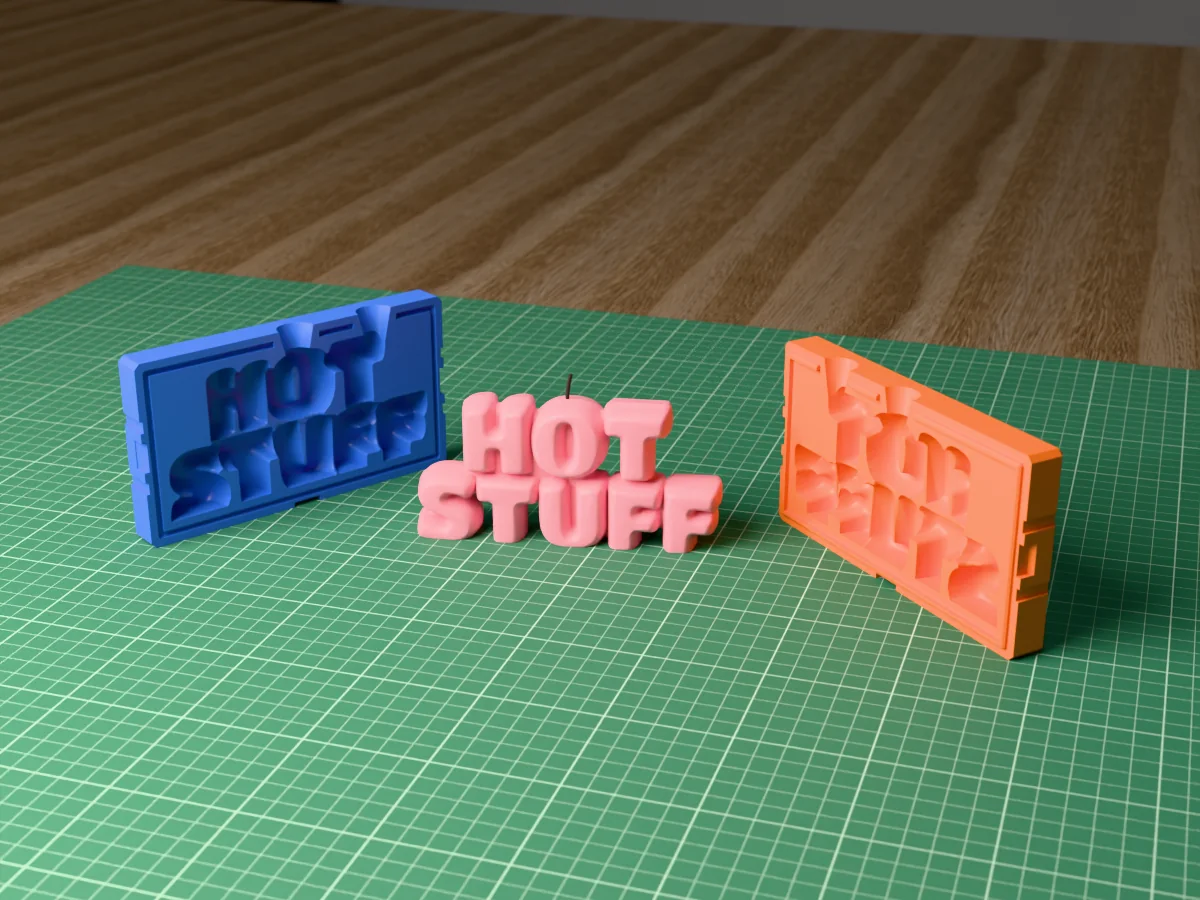

A puffy "HOT STUFF" bubble letter candle, 140 mm long, from a rigid two-part print. Two wicks, no silicone.
