◆ Candle wax

Sugar skull candle mold

A sugar skull candle, 72 mm tall: deep eye sockets ringed with raised petals, a forehead flower, a heart nose and a row of teeth. A rigid two-part print.

Make your own candle mold

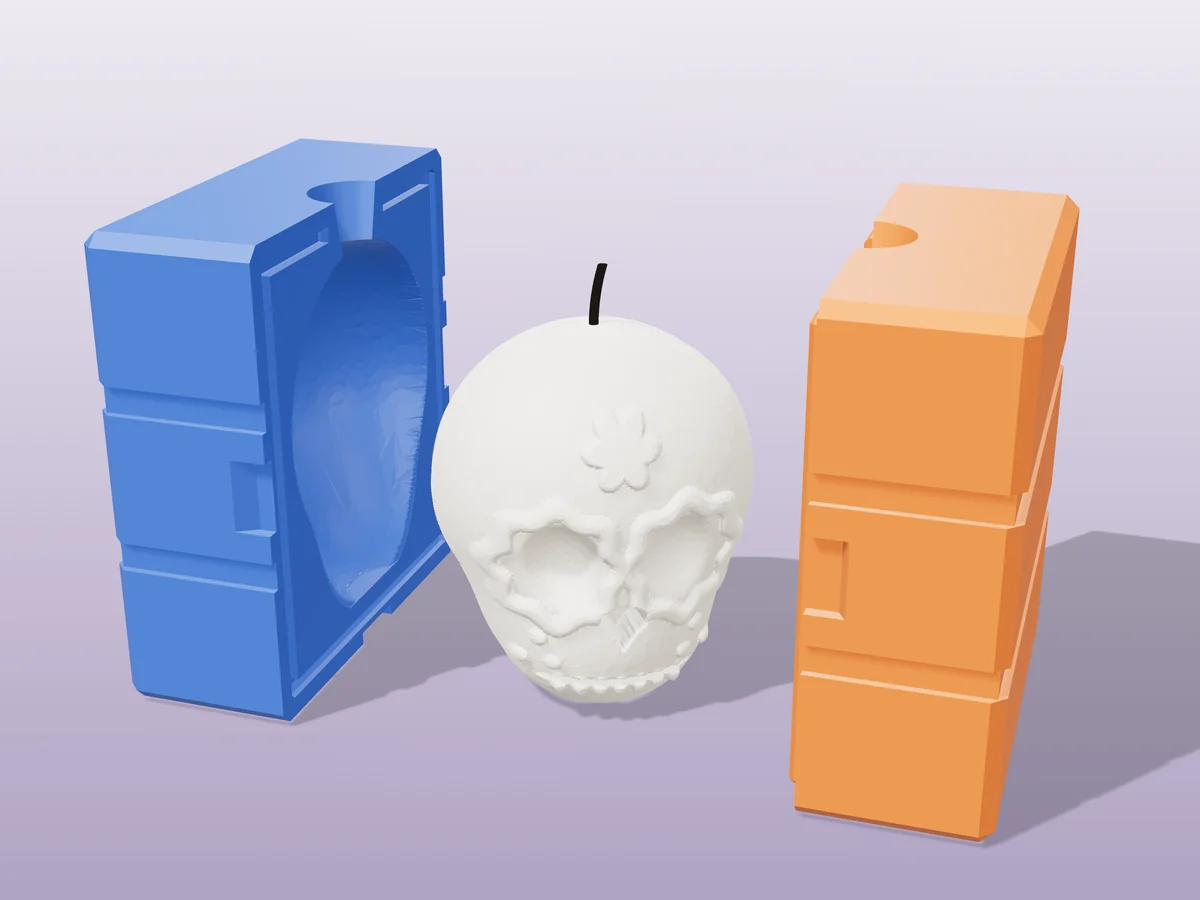

3D render of a white sugar skull candle with petal-ringed eyes between the two printed halves of its rigid blue and orange mold
Candle wax ~261 g Pro early access

A sugar skull (calavera) candle 72 mm tall and 63 mm wide: a rounded skull with deep eye sockets, each ringed by a scalloped border of raised petals, a flower on the forehead, an upside-down heart nose, dotted cheeks and a row of teeth.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. All the decoration sits on the face, the front half, and none of it reaches the sides the seam runs down, so the tool's own seam check finds nothing stuck. No silicone needed.

Made for Día de los Muertos, Halloween and anyone who loves a colourful skull. Pour it in white and paint the petals and flower in bright colours, or pour it black and pick the decoration out in gold. The zip carries both halves, the skull master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.

What you need

3
  • About 116 g of pillar wax: the cavity holds 129 ml
  • A tabbed, primed wick for a 50 mm candle, about 90 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets and trim the wick. Paint the petals, flower and cheeks if you like.

Print details

8 h 40 minPrint time
~261 gFilament
2Printed parts
69 × 84 × 93 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)69 x 84 x 93 mm
Print bed needed84 x 36 mm, 93 mm tall
Filament~261 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

sugar skull candle moldcalavera candleday of the dead candleskull candle moldtwo part candle mold

Questions about this design

How do I paint the sugar skull candle?

Pour it in white. Once cool, paint the petal rings and the forehead flower in bright candle paint, the nose black and the cheek dots in a contrast colour. The decoration is raised 1.3 to 1.6 mm, so a small brush follows it easily.

Where does the wick come out of the sugar skull?

Out of the top of the skull, where the pour funnel sits, straight down the middle. The eye sockets are deep but stay well clear of the wick.

Is the sugar skull a good candle for Día de los Muertos altars?

Yes, that is what it is designed for. Pour a set in white, orange and purple, and decorate each one differently. Each takes about 129 ml of wax.
