Angel candle mold

An angel candle, 93 mm tall: a flared gown, folded hands, a halo and feathered wings spread wide. A rigid two-part print.

Make your own candle mold

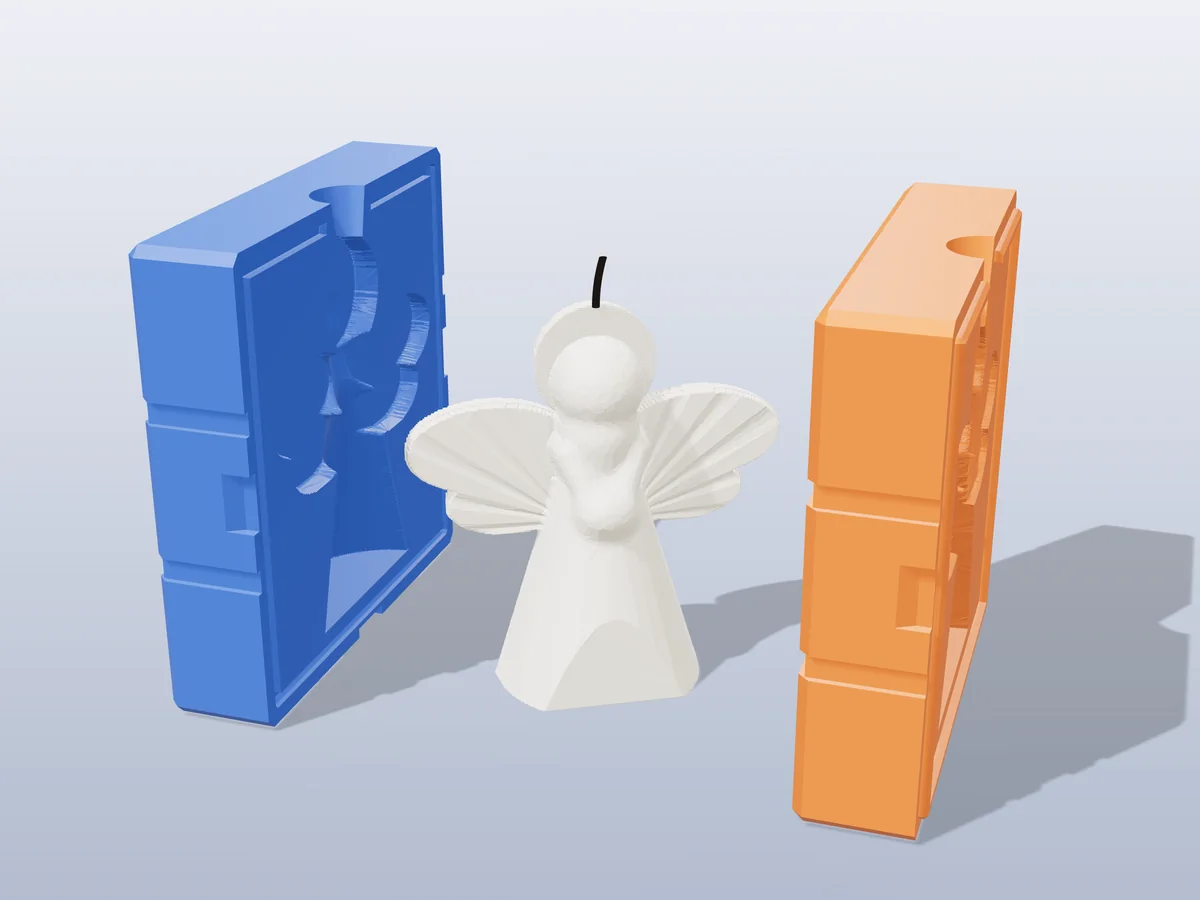

3D render of an ivory angel candle with spread wings and a halo between the two printed halves of its rigid blue and orange mold
Candle wax ~400 g Pro early access

An angel candle 93 mm tall and 91 mm across the wings: a flared gown, hands folded at the front, a round head, a halo standing behind it, and two feathered wings spread out behind the shoulders.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The wings and the halo lie in the plane of the seam, so they are part of the outline, their feathers face front and back, and the tool's own seam check finds nothing stuck. No silicone needed.

A quiet, elegant Christmas and memorial candle. Pour it in ivory or white and dust the wings and halo with gold mica. The zip carries both halves, the angel master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.

What you need

3
  • About 68 g of pillar wax: the cavity holds 75 ml
  • A tabbed, primed wick for a 40 mm candle, about 110 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets and trim the wick on top of the head. Dust the wings and halo with gold mica if you like.

Print details

13 h 20 minPrint time
~400 gFilament
2Printed parts
55 × 112 × 114 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)55 x 112 x 114 mm
Print bed needed112 x 29 mm, 115 mm tall
Filament~400 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

angel candle moldchristmas angel candlememorial candle moldholiday candle moldtwo part candle mold

Questions about this design

Are the angel's wings strong enough in wax?

Yes, they are 7 mm thick with rounded edges and joined to the back all along the shoulders. Open the halves slowly and lift the angel out by the gown, not by a wing.

Why is the halo a disc and not a ring?

A thin wax ring behind the head would snap the first time someone picks the candle up. A solid disc reads as a halo from the front and survives handling and shipping.

Where does the wick come out of the angel candle?

Out of the top of the head, where the pour funnel sits, down into the gown. The head and shoulders burn first, the wings stay standing for a long time.
