◆ Candle wax

Avocado candle mold

Half an avocado with a smiling face on the pit. A rigid two-part print, pour the wax straight in.

Make your own candle mold

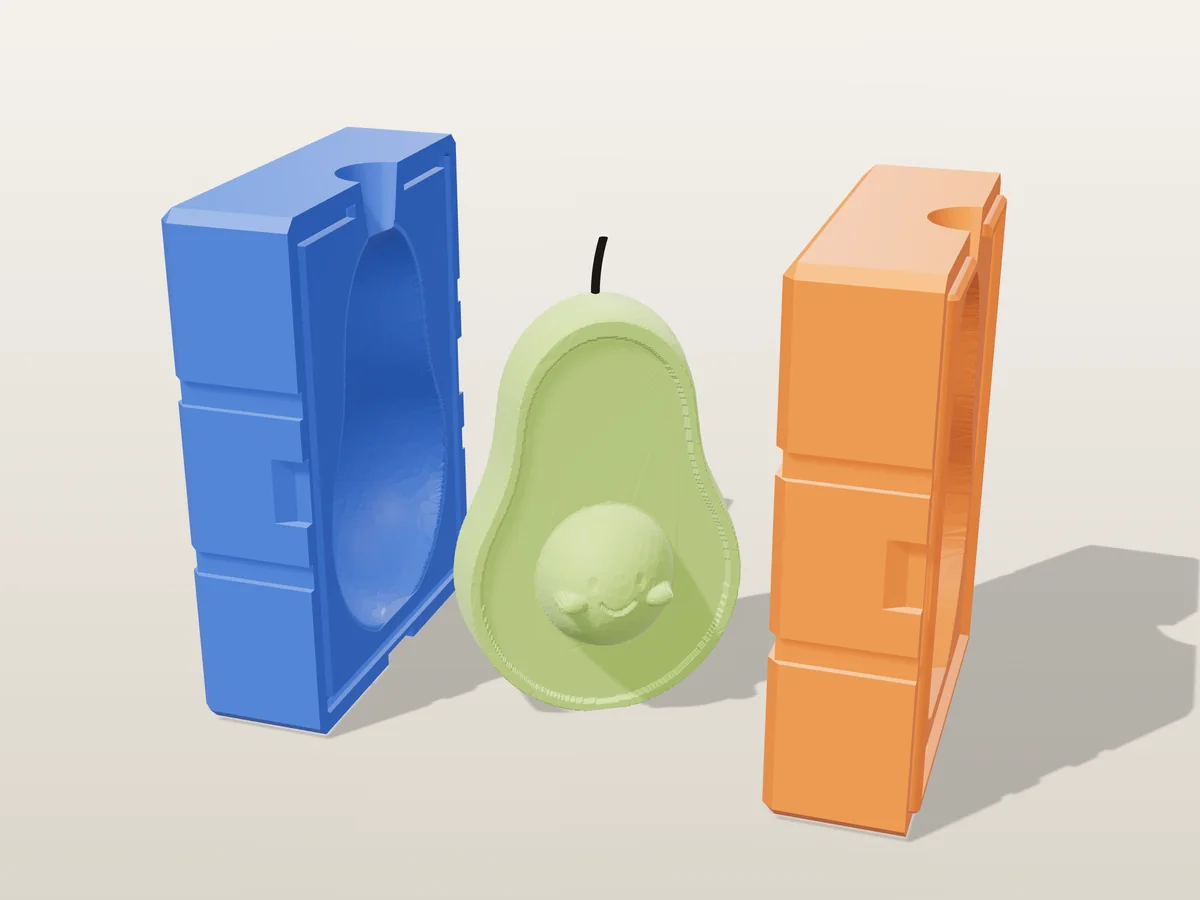

3D render of a green avocado half candle with a smiling face on its pit between the two printed halves of its rigid blue and orange mold
Candle wax ~276 g Pro early access

An avocado candle 90 mm tall: the classic pear shape cut in half, with a raised skin rim around the flesh and the round pit sitting proud in the middle, wearing a happy little kawaii face with rosy cheeks. The back is the smooth, rounded skin.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The cut face looks straight out of the front half and the skin out of the back one, so nothing hooks, and the tool's own seam check finds nothing stuck. No silicone needed.

A gift for the friend who puts avocado on everything, a brunch table or a kitchen windowsill. Pour it in avocado green and paint the pit brown, or pour it in one pastel colour. The zip carries both halves, the avocado master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.

What you need

3
  • About 90 g of pillar wax: the cavity holds 100 ml
  • A tabbed, primed wick for a 60 mm candle, about 110 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets and trim the wick. Paint the pit brown and the skin rim dark green if you like.

Print details

9 h 10 minPrint time
~276 gFilament
2Printed parts
58 × 83 × 112 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)58 x 83 x 112 mm
Print bed needed83 x 31 mm, 112 mm tall
Filament~276 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

avocado candle moldkawaii candle moldfood candle moldfunny candle moldtwo part candle mold

Questions about this design

How do I colour the pit and skin on the avocado candle?

Pour the whole avocado in a soft green, then paint the pit with brown candle paint and the raised skin rim with a darker green once it is out. The pit and the rim are raised, so a small flat brush stays on them easily.

Does the avocado candle stand up on its own?

Yes. It stands on a flat base at the wide end, with the cut face looking forward. The wick comes out of the narrow top, so it burns down from the neck like any pillar.

Can I make the avocado face on the pit stand out more?

Once the candle is out, fill the eyes and the smile with a drop of black wax or a fine black paint pen made for candles, and dab a touch of pink on the cheeks. The face is pressed into the pit, so the colour stays in the lines.
