◆ Candle wax

Bubble pillar candle mold

A round bubble pillar candle, 82 mm tall: five rings of six bubbles, honeycomb-stacked, with one on top. A silicone mold from a printed shell.

Make your own silicone mold

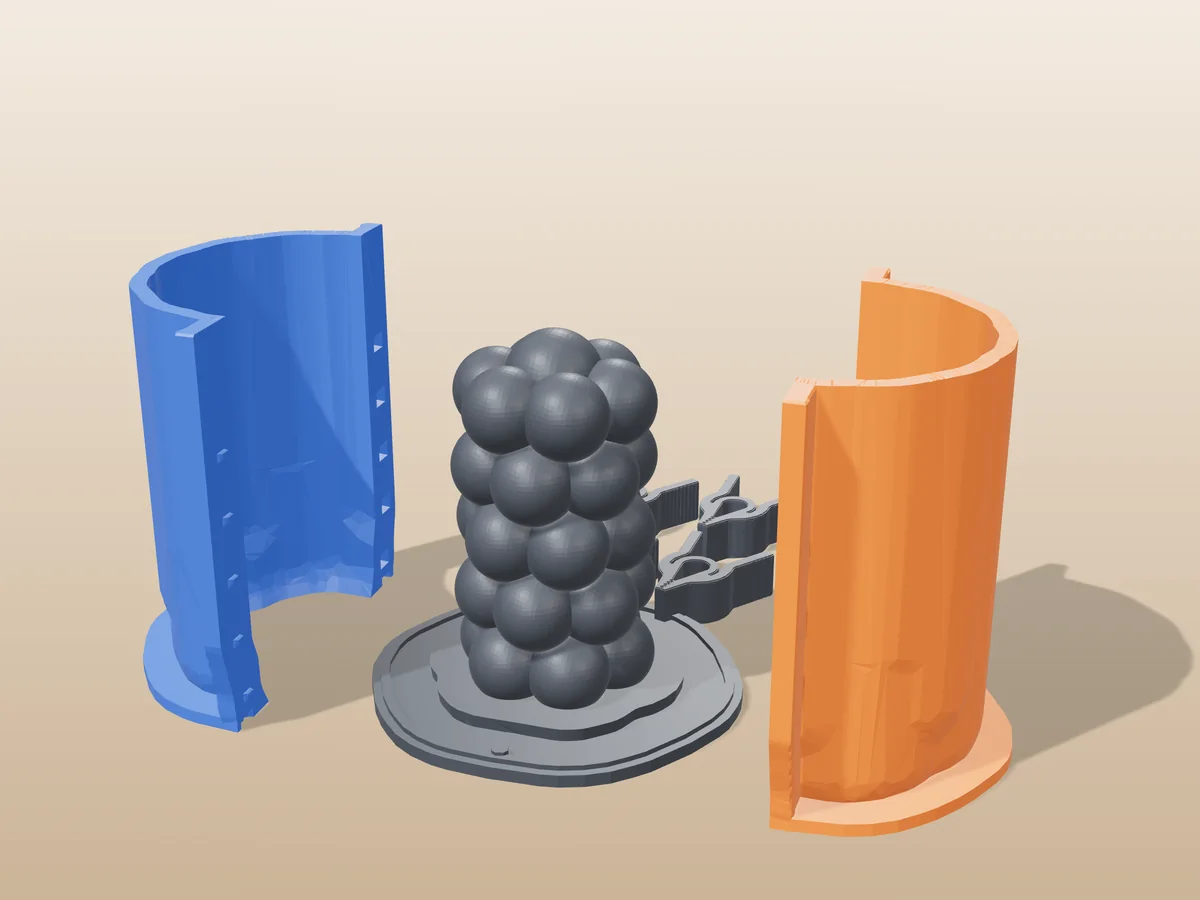

3D render of the round bubble pillar master fused on its printed charcoal base, between the orange and blue hugging shell halves
Candle wax ~180 g Pro early access

A bubble pillar candle 82 mm tall and 46 mm across: five rings of six round bubbles, each ring turned half a step on the one below so they nest like a honeycomb, and a single bubble on top where the wick comes out.

Read more

Made with the hugging-shell mode of our silicone mold maker: print the base with the pillar fused onto it and the two shell halves, pour about 225 ml of silicone, and the flexible mold that comes out peels off every bubble. A round core fills the middle, so the pillar casts solid.

A round alternative to the bubble tower, and it fits a standard pillar plate. Pour it in cream, terracotta or sage. The zip carries every printed part, the pillar master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold parts pulled apart around the master, not a photo.

What you need

4
  • About 251 ml of silicone (mix it in one batch)
  • About 98 g of pillar wax per candle: each cast is 109 ml
  • Steel binder clips, tape or a hot glue gun
  • A primed wick for a 45 mm pillar, about 110 mm long

How to cast it

6

  1. Print the base, which has the master already fused onto it, and the two shell halves. No supports.

  2. Stand the shell halves on the base around the master and hold the seams shut with steel binder clips. The seats for them are built into the shell.

  3. Tape the outside seams or run a bead of hot glue along them, because silicone finds every gap.

  4. Mix 251 ml of silicone in one batch, pour it into the open top in a thin stream, and fill level with the rim.

  5. Once it has cured, unclip the shell, lift it off and peel the silicone off the master. That silicone is your mold.

  6. Set the silicone back in the shell to keep its shape, and cast into it through the opening the base left.

Print details

6 hPrint time
~180 gFilament
9Printed parts
92 × 94 × 97 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts9
Size (W x D x H)92 x 94 x 97 mm
Print bed needed94 x 87 mm, 97 mm tall
Filament~180 g
Layer height0.2 mm
Infill15%
SupportsNot needed
DownloadZIP: 9 printed parts in 4 STL files + candle master (STL) + print sheet + recipe
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own silicone mold →

Made with the free Silicone mold maker generator. Upload your own model and get the same kind of mold built around it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the silicone mold maker guide.

bubble pillar candle moldround bubble candlebubble candle moldaesthetic pillar candlesilicone candle mold stl

Questions about this design

Where does the wick go in the bubble pillar candle?

Straight down the middle, from the top bubble to the foot, through the solid core. Pierce the silicone at the top of the top bubble with a wick needle before you pour.

Does the bubble pillar fit a normal candle plate?

Yes. It is 46 mm across at its widest, so it sits on any pillar plate or holder made for 50 mm pillars.

How much wax does one bubble pillar candle take?

About 98 g of pillar wax per candle, from a mold made once from about 251 ml of silicone.
