Coffee mug candle mold
A coffee mug candle, 83 mm tall: a round mug with a handle, topped with a swirl of whipped cream. A rigid two-part print.
◆ Candle wax
A coffee mug candle, 83 mm tall: a round mug with a handle, topped with a swirl of whipped cream. A rigid two-part print.
A coffee mug candle 83 mm tall and 79 mm wide with its handle: a round mug with a rim, a loop handle on the side, and a swirl of whipped cream piled on top in three rings and a tip.
The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The handle stands in the plane of the seam, so its hole runs straight through the way the mold opens, and the tool's own seam check finds nothing stuck. No silicone needed.
A cosy café candle for coffee, hot cocoa or pumpkin spice scents. Pour the mug in a latte brown and the cream in white, or pour it all in one colour and paint the cream. The zip carries both halves, the mug master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

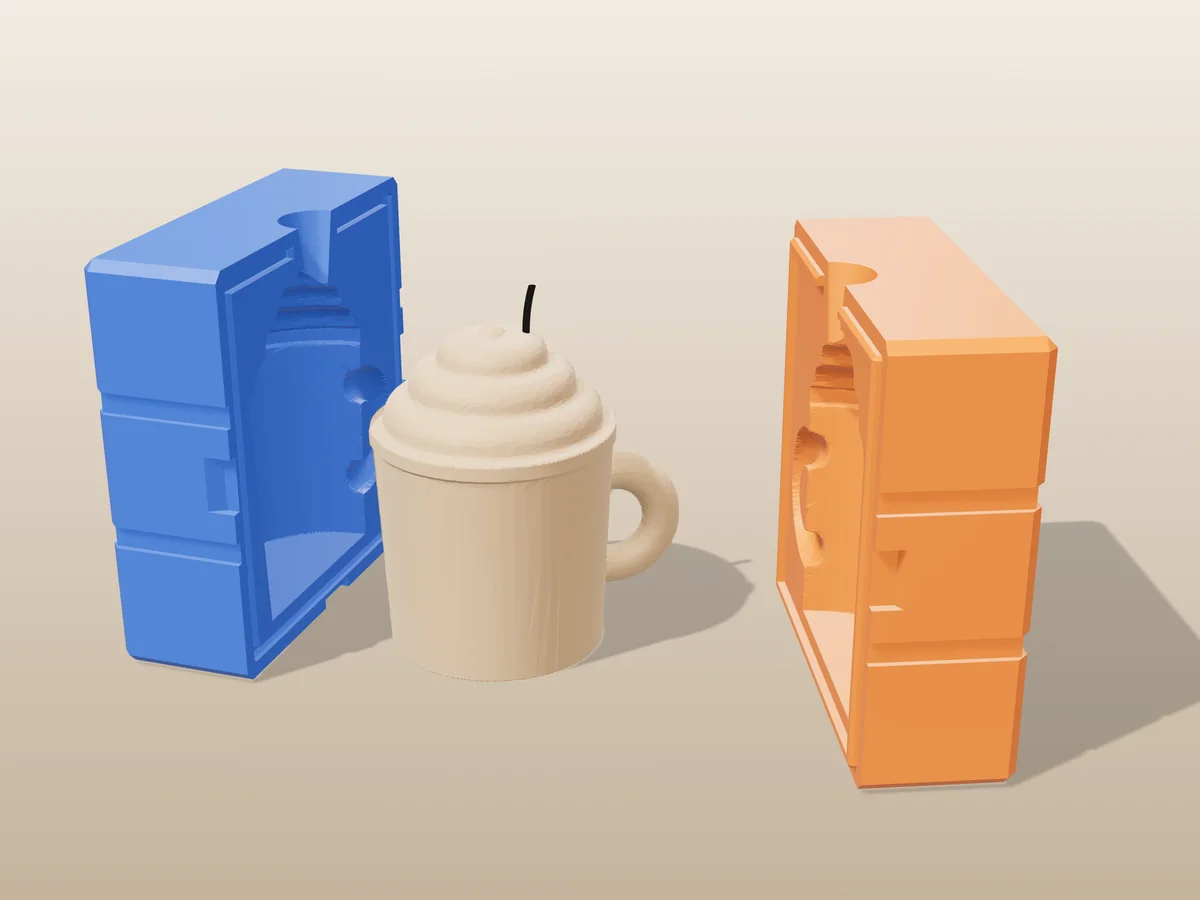

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.
Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.
Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.
Clip the wick centred across the pour funnel and pour at 65 to 75 C.
Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.
Cool fully, open the halves at the pry pockets and trim the wick just above the cream.
Print details
| Cast material | Candle wax |
|---|---|
| Printed parts | 2 |
| Size (W x D x H) | 73 x 100 x 105 mm |
| Print bed needed | 100 x 38 mm, 105 mm tall |
| Filament | ~368 g |
| Layer height | 0.2 mm |
| Infill | 40% |
| Supports | Not needed |
| Download | ZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe |
| Added | 2026-09-25 |
Pro early access until October 25, 2026, then free with any account.
Make your own candle mold →Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
New to casting? Read the candle mold guide.
No, it is a solid candle shaped like a mug with cream on top. The wick runs down through the cream into the mug, and it burns like a pillar.
Coffee, vanilla latte, hot cocoa, caramel or pumpkin spice. Keep the fragrance load to what your wax supplier gives, usually 6 to 10%.
Yes: paint it after casting. The cream starts right at the rim, so a brush run round the rim line gives a clean edge between the two colours.
