◆ Candle wax
Column trio candle mold
Three fluted Greek columns in one 98 mm candle, 75, 105 and 90 mm tall. A rigid two-part print, three wicks.
◆ Candle wax
Three fluted Greek columns in one 98 mm candle, 75, 105 and 90 mm tall. A rigid two-part print, three wicks.
A column trio candle 98 mm wide: three fluted Greek columns fused in a row, 75, 105 and 90 mm tall, each 34 mm across with a stepped plinth at the foot and a stepped capital at the top. The classical, temple-ruin look in one piece, with a wick in every column.
The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The tool puts one pour funnel on each column top, so the trio has three funnels and three wicks. The flutes fade out towards the sides where the mold splits and where the columns meet, so nothing hooks a rigid half, and the tool's own seam check finds nothing stuck. No silicone needed.
Pour it in white or stone grey for the plaster look, or cream with a little gold mica rubbed into the flutes. For a single tall column with flutes all the way round, there is a silicone fluted column candle mold too. The zip carries both halves, the trio master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

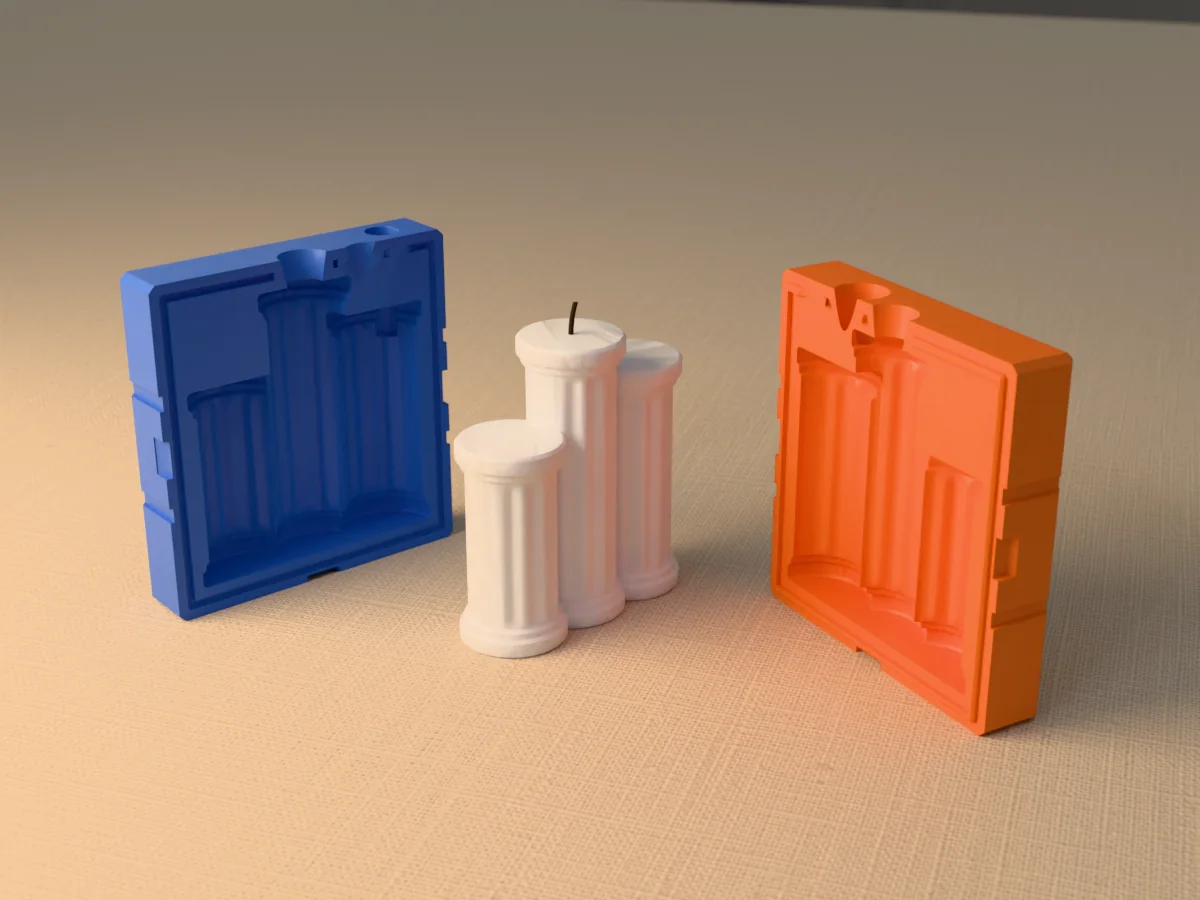

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.
Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.
Drop a tabbed wick into each column of one half so each tab sits on the cavity floor under its funnel, close the halves and band them along the whole seam.
Clip each wick centred across its own funnel. Pour at 65 to 75 C into the tallest column first: the columns join, so the wax levels out between them, then fill each funnel to the top.
Once the first pour is firm but still warm, top up all three funnels. Wax shrinks, and the second pour fills the dips.
Cool fully, open the halves at the pry pockets and trim the three wicks.
Print details
| Cast material | Candle wax |
|---|---|
| Printed parts | 2 |
| Size (W x D x H) | 50 x 119 x 126 mm |
| Print bed needed | 120 x 27 mm, 126 mm tall |
| Filament | ~329 g |
| Layer height | 0.2 mm |
| Infill | 40% |
| Supports | Not needed |
| Download | ZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe |
| Added | 2026-10-01 |
Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.
Free download. Opens the Thingiverse listing in a new tab.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
New to casting? Read the candle mold guide.
Light all three together for the first burn, for an hour or two, so each column gets a full melt pool and none tunnels. After that you can burn them together or one at a time. The tallest column burns longest, so the heights change as it goes.
Flutes that ran all the way round would hook a rigid half at the seam and where two columns meet. The design lets them fade out there, so the front and back halves pull straight off. A column with flutes all the way round needs silicone, like our single fluted column candle mold.
The fluted column is one 111 mm column with flutes all round, cast in a silicone mold from a printed shell. The trio is three columns of different heights in one candle, poured straight into a rigid two-part print with three funnels and three wicks, no silicone.
