◆ Candle wax

Curvy body candle mold

A curvy body candle, 96 mm tall: the soft, full-figured torso from the thighs to the neck. A rigid two-part print.

Make your own candle mold

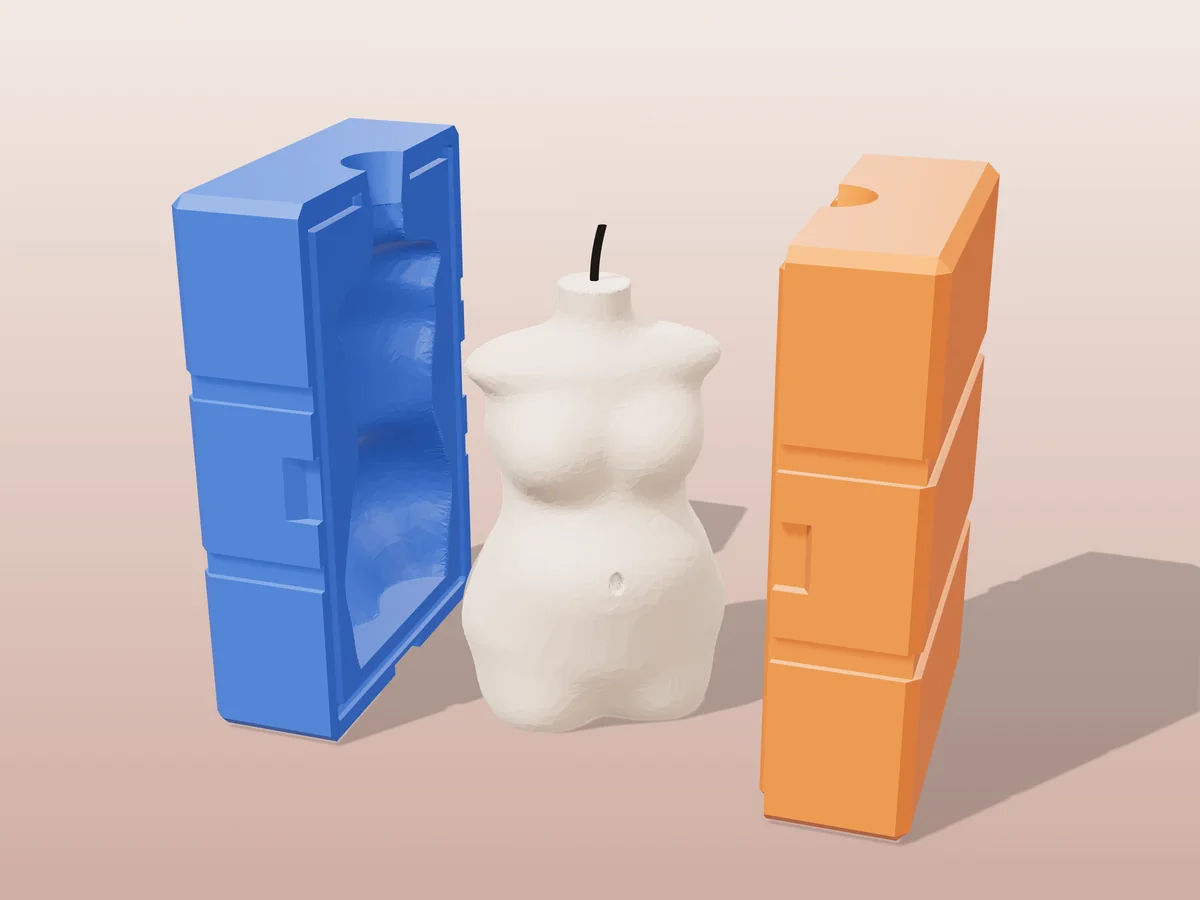

3D render of a nude-coloured curvy body torso candle between the two printed halves of its rigid blue and orange mold
Candle wax ~267 g Pro early access

A curvy body candle 96 mm tall: a stylised, full-figured torso with round hips, a soft belly, a small waist, a full bust and rounded shoulders, cut off at the thighs and the neck. The back shows the curve of the waist and the seat.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The seam runs down the sides, so the front and the back are each one half, and the tool's own seam check finds nothing stuck. No silicone needed.

Body candles are one of the best sellers on Etsy for body-positive gifts, bathrooms and bedside tables. Pour it in nude, terracotta, sage or white. The zip carries both halves, the body master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.

What you need

3
  • About 109 g of pillar wax: the cavity holds 121 ml
  • A tabbed, primed wick for a 45 mm candle, about 120 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets and trim the wick just above the neck.

Print details

8 h 50 minPrint time
~267 gFilament
2Printed parts
58 × 80 × 117 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)58 x 80 x 117 mm
Print bed needed80 x 31 mm, 117 mm tall
Filament~267 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

body candle moldcurvy woman candleplus size body candletorso candle moldtwo part candle mold

Questions about this design

Where does the wick come out of the body candle?

Out of the top of the neck, where the pour funnel sits. Drop a tabbed wick in before you close the halves and clip it centred across the funnel. The neck and shoulders burn down first.

How do I get a smooth skin finish on the body candle?

Print the halves with fine layers (0.12 to 0.16 mm) and sand the inside of the cavity lightly before the first pour. After casting, buff the candle with a nylon stocking; it also softens the seam line down the sides.

Is the curvy body candle mold good to sell from?

Yes. Body candles sell year round and the rigid halves cast the same shape every time. Each one takes about 121 ml of wax, so a batch in three colours is an evening's work from one mold.
