◆ Candle wax

Sleeping face pillar candle mold

A 90 mm pillar with a calm sleeping face in relief on the front: closed eyes, brows, nose and full lips. A rigid two-part print.

Make your own candle mold

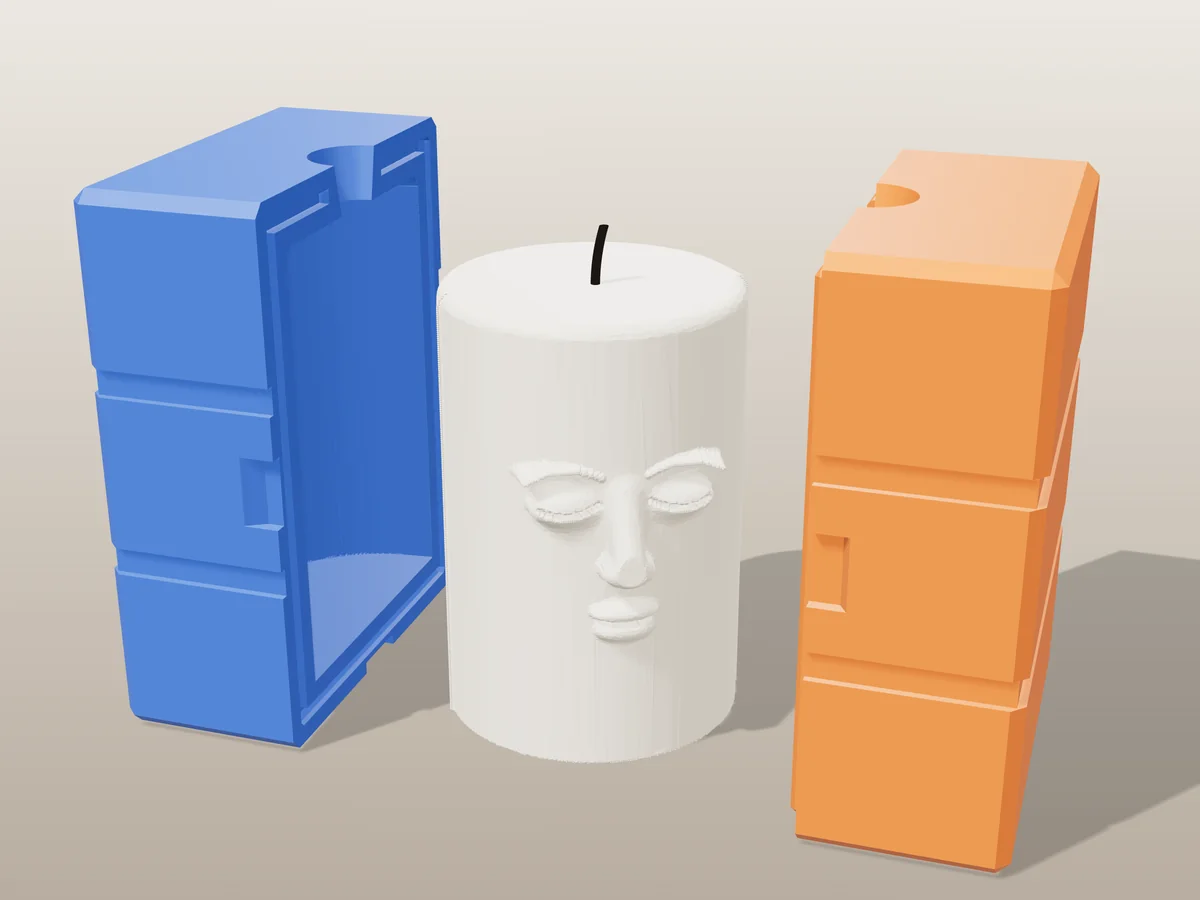

3D render of a cream pillar candle with a sleeping face in relief between the two printed halves of its rigid blue and orange mold
Candle wax ~291 g Pro early access

A sleeping face pillar candle 90 mm tall and 60 mm across: a round pillar with a serene face on the front, closed eyes with a soft lash line, arched brows, a straight nose, round cheeks and full lips. The back is a plain pillar.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The seam runs down the sides of the pillar, so the whole face sits in the front half, and the tool's own seam check finds nothing stuck. No silicone needed.

Sculptural face candles are bought as decor first: pour it in cream, clay or charcoal and it reads like a small bust on a shelf. The zip carries both halves, the pillar master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.

What you need

3
  • About 229 g of pillar wax: the cavity holds 254 ml
  • A tabbed, primed wick for a 60 mm pillar, about 110 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets and trim the wick.

Print details

9 h 40 minPrint time
~291 gFilament
2Printed parts
78 × 82 × 111 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)78 x 82 x 111 mm
Print bed needed83 x 41 mm, 111 mm tall
Filament~291 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

face candle moldsleeping face candleface pillar candlesculptural candle moldtwo part candle mold

Questions about this design

How do I make the face stand out on the face pillar candle?

Dry-brush a slightly darker mica or candle paint over the face once the candle is out. It catches the nose, lips and brows and leaves the lash lines lighter, like a real sculpture.

Will the face melt away when I light the face pillar?

The wick burns a pool in the middle first; with a wick sized for a 55 to 60 mm pillar the outer wall, and the face on it, stays standing for a long time. Many people keep face candles as decor and never light them.

How much wax does the face pillar take?

About 229 g of pillar wax, 254 ml. Pour at 75 to 80 C so the wax fills the lash line and the corners of the lips.
