Ghost candle mold

A little sheet ghost with big eyes and an "o" mouth, 86 mm tall. A rigid two-part print for Halloween candles.

Make your own candle mold Download free on Thingiverse
The two printed halves of the ghost candle mold, one blue and one pink, standing open on a printer bed with the ghost cavity facing up

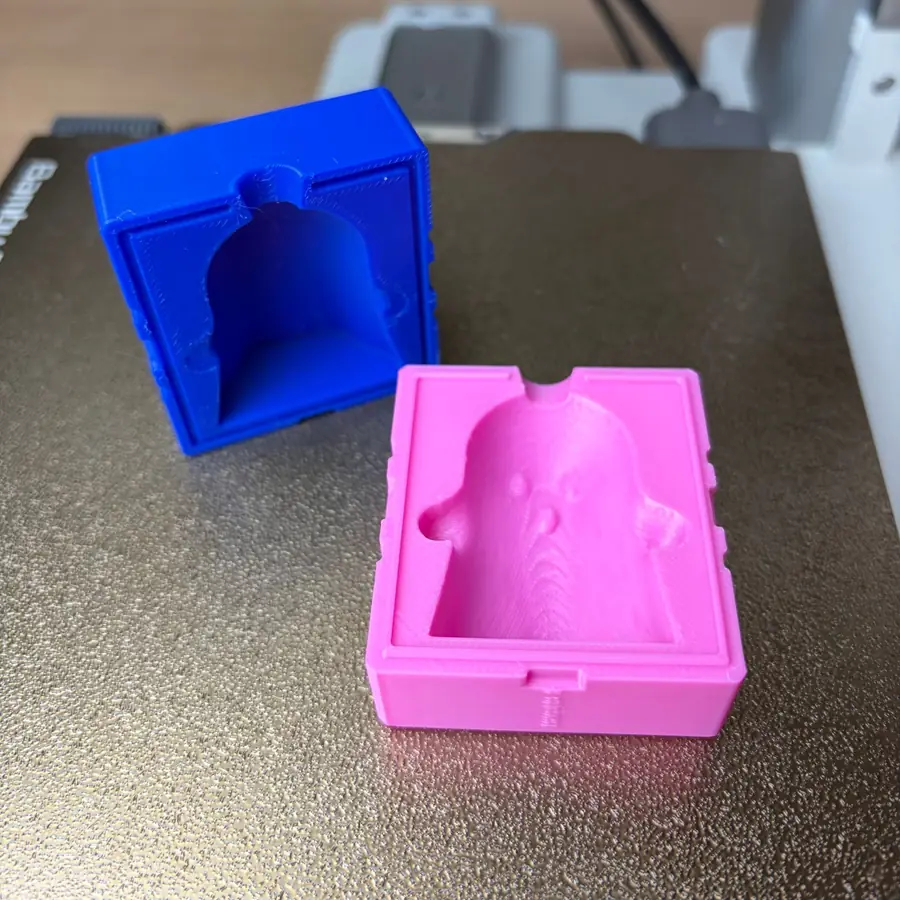

Both ghost mold halves on the build plate, the pink half lying open to show the face, arms and pour funnel pressed into the cavity

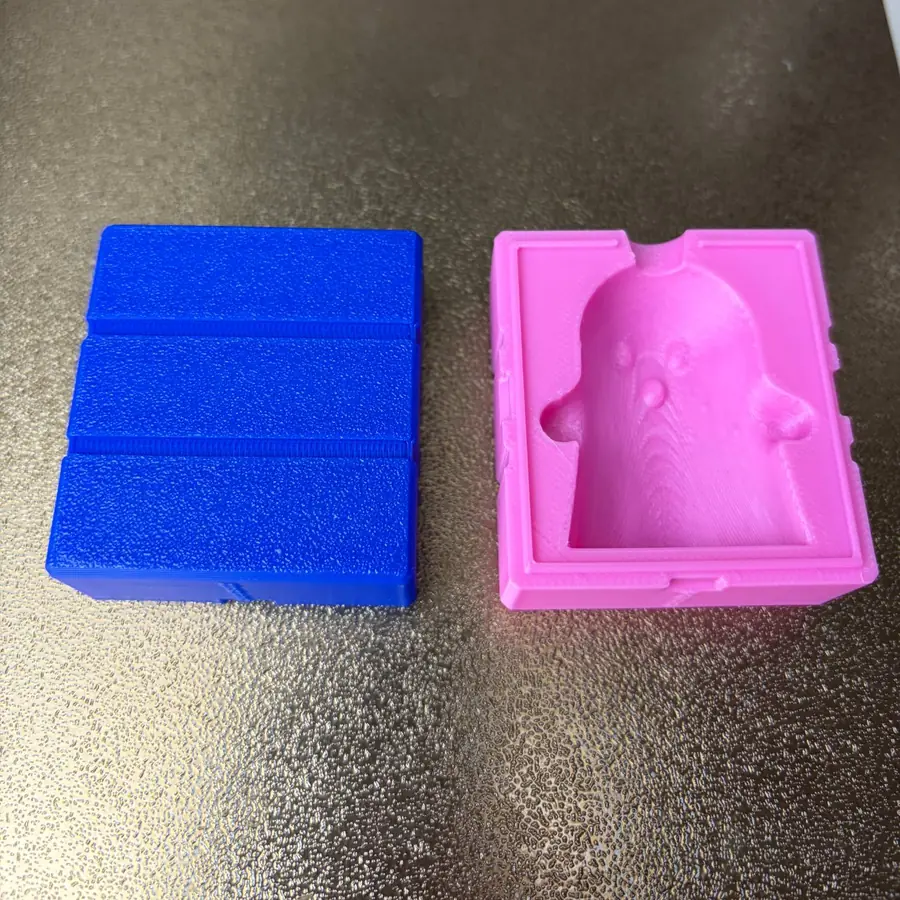

Outside of the blue ghost mold half with its two rubber-band grooves, next to the open pink half
3D render of a white ghost candle with a surprised face between the two printed halves of its rigid blue and orange mold
Candle wax ~391 g

A ghost candle 86 mm tall: a round head, a sheet that flares out into soft folds round the hem, two stubby arms and a surprised little face with the eyes and mouth pressed in. The cute kind of spooky that Halloween shelves are full of.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The seam runs from arm to arm, so the face is the front half and the back of the sheet is the other, and the tool's own seam check finds nothing stuck. No silicone needed.

Pour it in plain white and leave the face as it is, or fill the eyes and mouth with a drop of black wax once it is out. The zip carries both halves, the ghost master as its own STL, the tool's own print-settings sheet and a recipe file that puts every setting back on the generator.

The photos are our own test print of both halves, straight off a Bambu textured plate in blue and pink PLA, with the rubber-band grooves on the back of each half. The last image is a 3D render of the halves around the candle they cast.

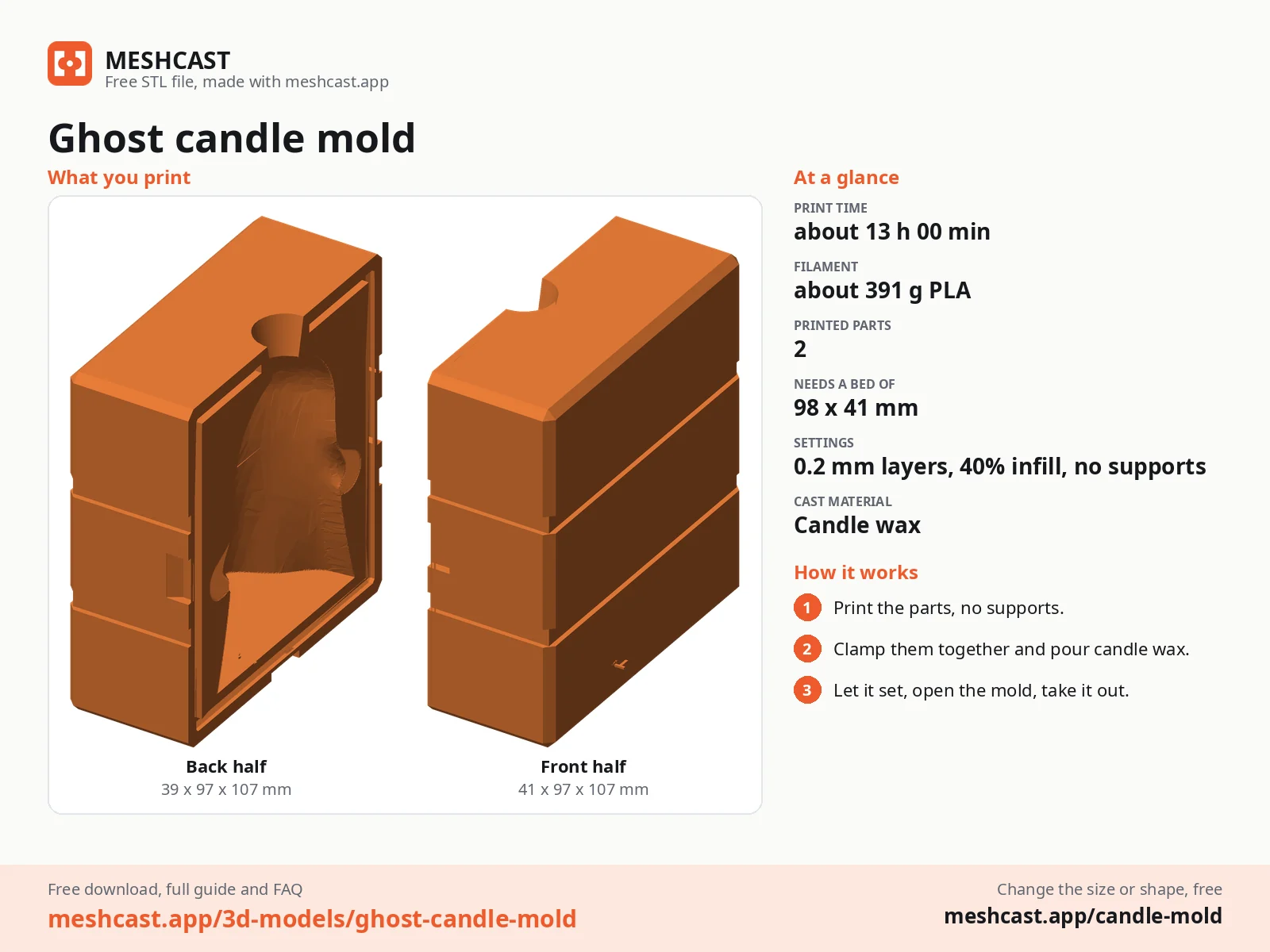

Ghost candle mold at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it
How this mold works

What you need

3
  • About 165 g of pillar wax: the cavity holds 183 ml
  • A tabbed, primed wick for a 60 mm candle, about 110 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets and trim the wick. Fill the eyes and mouth with black wax or candle paint if you like.

Print details

13 hPrint time
~391 gFilament
2Printed parts
80 × 98 × 107 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)80 x 98 x 107 mm
Print bed needed98 x 41 mm, 107 mm tall
Filament~391 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-09-25
Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

ghost candle moldhalloween candle moldcute ghost candlespooky candle moldtwo part candle mold

Questions about this design

How do I make the face on the ghost candle black?

Pour the ghost in white, let it cool, then drip a little melted black wax into the eyes and mouth with a pipette or a toothpick, or paint them with black candle paint. Wipe any overflow off with a warm cloth before it sets.

Is the ghost candle mold good for selling at Halloween?

It is a small, quick candle about 180 ml of wax, which suits a market table or a gift box, and a rigid mold like this one casts the same ghost every time. Start pouring in September: the halves print in a day and last for many casts.

Where does the wick go in the ghost candle?

Straight down the middle, out through the top of the head where the pour funnel sits. Drop a tabbed wick in before you close the halves so the tab stands on the cavity floor, and clip it centred across the funnel.
