◆ Print only
Golf ball stencil letter D
A printed cap that marks a bold stencil letter D on any standard golf ball. Draw through it with a marker.
◆ Print only
A printed cap that marks a bold stencil letter D on any standard golf ball. Draw through it with a marker.
The D has one large closed counter, which the tool keeps attached with a single thin bridge running straight up out of it. The result is a bold D with one fine break at the top of the bowl, still instantly readable at a glance on the green. The letter comes out about 19 mm wide and 22 mm tall, measured over the ball's surface. Every letter in this set uses the same font and the same letter height, so a set of balls marked with different letters matches.
Made with our free golf ball stencil generator, not modelled by hand: we typed D into its Initials field, chose the Bold & Blocky font and set Size to 22 mm. Everything else is the tool's default, and the STL in the zip is exactly what the tool gives you: a 71 by 48 mm cap for a standard 42.67 mm ball, with a 2.4 mm wall, 0.5 mm of clearance, a skirt that reaches 12 degrees past the middle of the ball so it cups it, and two tabs with 7 mm holes for a rubber band. Like every free download from the tool, it carries a small raised MESHCAST mark on its underside, along one tab.
Seat it on the ball, draw through the opening with a fine permanent marker, lift it off, and the ball is marked in a few seconds, the same way every time. Want your initials on one cap instead? Type two or three letters into the same tool.

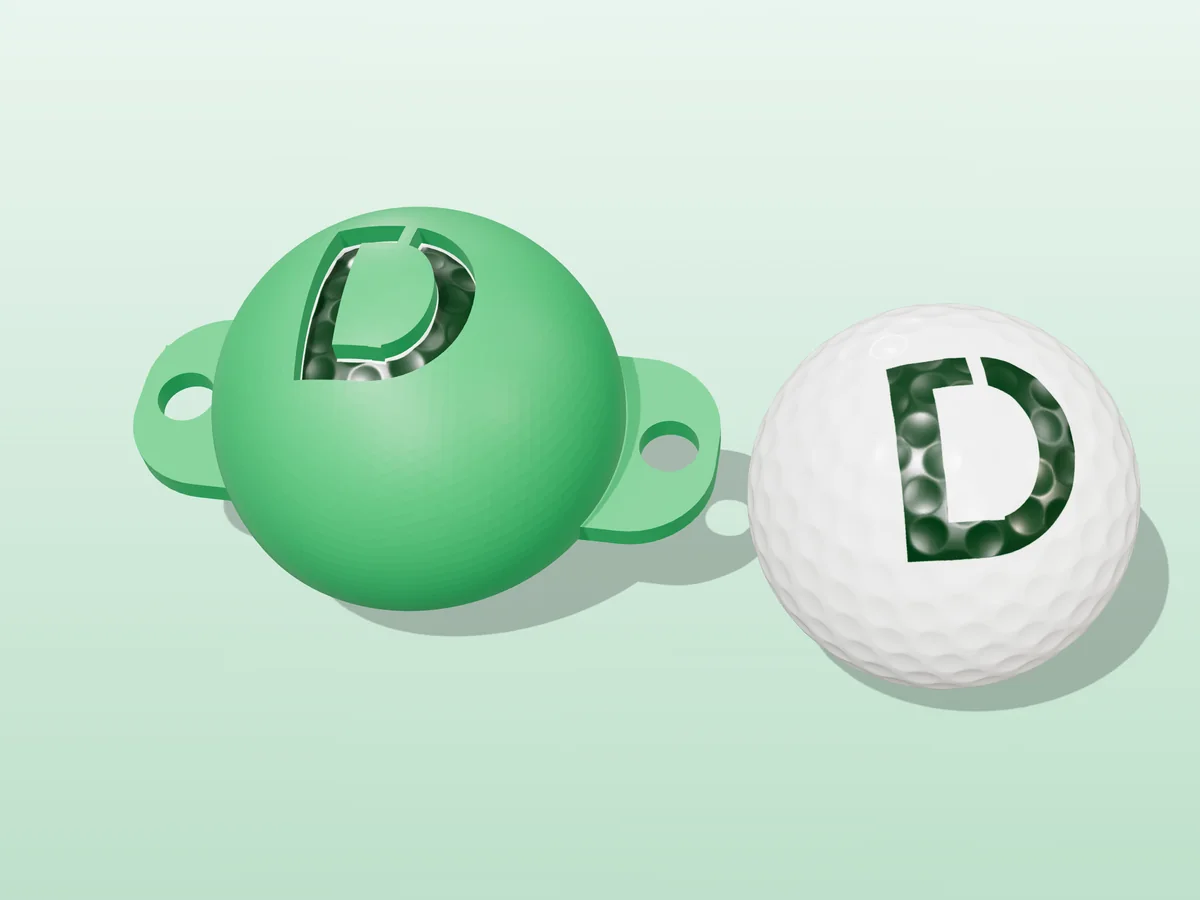

Shown as a 3D render of the printed stencil on a golf ball and a second ball with the letter drawn through it, not a photo.
Print the file as exported: rim flat on the bed, dome up, with tree supports on (organic in PrusaSlicer).
Peel the supports out of the inside of the dome.
Wipe the ball clean so the ink bites, then seat the cap on top and press the rim down until it cups the ball.
Draw through the opening with short strokes from the edges inwards.
Lift the cap straight up and leave the ink for a minute before you touch it.
Print details
| Type | Print only |
|---|---|
| Printed parts | 1 |
| Size (W x D x H) | 71 x 48 x 29 mm |
| Print bed needed | 71 x 49 mm, 30 mm tall |
| Filament | ~14 g |
| Layer height | 0.2 mm |
| Infill | 15% |
| Supports | Yes |
| Download | ZIP: stencil cap (STL) + README with print settings |
| Added | 2026-09-25 |
Pro early access until October 25, 2026, then free with any account.
Make your own golf ball stencil →Made with the free Golf ball stencil generator. Upload your own drawing and get the same kind of part built from it, in your browser.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
New to casting? Read the golf ball stencil guide.
Yes. Lift the stencil once the ink has had a moment to dry, then close the fine gap at the top of the D with one short stroke of the same marker. Most people leave it, though: from a step away it reads as a solid letter.
Print it as exported, rim flat on the bed and the dome up, with tree supports switched on (organic in PrusaSlicer, tree in Bambu Studio, Orca and Cura). They hold up the inside of the dome and peel out easily. Sliced in PrusaSlicer 2.7.2 at 0.2 mm layers it takes about 1 h 10 min and 14 g of PLA.
Yes. Open the free golf ball stencil generator, type your letters into Initials (up to two lines of six) and pick the Bold & Blocky font to match this one. The Ball size, Clearance and Size sliders fit a different ball or change the letter; this one uses a Size of 22 mm.
