Golf ball stencil letter H

A printed cap that marks a bold letter H on any standard golf ball. Draw through it with a marker.

Make your own golf ball stencil

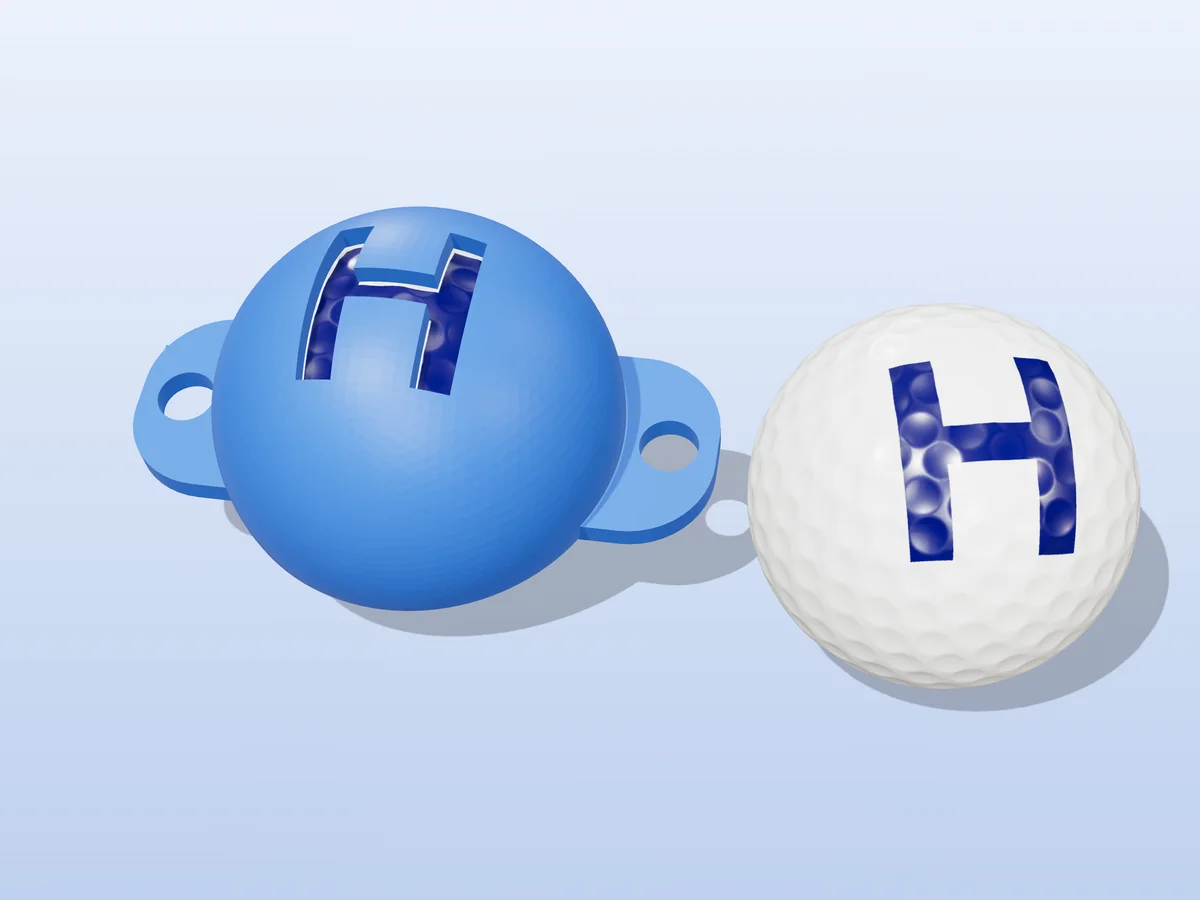

3D render of a blue 3D-printed golf ball stencil with the letter H cut through it, sitting on a golf ball, next to a ball marked with a blue H
Print only ~14 g Pro early access

Two upright stems and a crossbar, and nothing enclosed, so the H cuts cleanly with no bridges. It is symmetrical left to right, which makes it easy to line up straight on the ball, and it reads the same in any light. The letter comes out about 18 mm wide and 22 mm tall, measured over the ball's surface. Every letter in this set uses the same font and the same letter height, so a set of balls marked with different letters matches.

Read more

Made with our free golf ball stencil generator, not modelled by hand: we typed H into its Initials field, chose the Bold & Blocky font and set Size to 22 mm. Everything else is the tool's default, and the STL in the zip is exactly what the tool gives you: a 71 by 48 mm cap for a standard 42.67 mm ball, with a 2.4 mm wall, 0.5 mm of clearance, a skirt that reaches 12 degrees past the middle of the ball so it cups it, and two tabs with 7 mm holes for a rubber band. Like every free download from the tool, it carries a small raised MESHCAST mark on its underside, along one tab.

Seat it on the ball, draw through the opening with a fine permanent marker, lift it off, and the ball is marked in a few seconds, the same way every time. Want your initials on one cap instead? Type two or three letters into the same tool.

Shown as a 3D render of the printed stencil on a golf ball and a second ball with the letter drawn through it, not a photo.

What you need

4
  • A standard golf ball, 42.67 mm
  • A fine permanent marker (a chisel tip is too broad for the corners)
  • About 14 g of PLA or PETG
  • A rubber band, if you want to hold the cap on through the tab holes

How to make it

5

  1. Print the file as exported: rim flat on the bed, dome up, with tree supports on (organic in PrusaSlicer).

  2. Peel the supports out of the inside of the dome.

  3. Wipe the ball clean so the ink bites, then seat the cap on top and press the rim down until it cups the ball.

  4. Draw through the opening with short strokes from the edges inwards.

  5. Lift the cap straight up and leave the ink for a minute before you touch it.

Print details

1 h 13 minPrint time
~14 gFilament
1Printed parts
71 × 48 × 29 mmSize (W x D x H)
All print details
Print details
TypePrint only
Printed parts1
Size (W x D x H)71 x 48 x 29 mm
Print bed needed71 x 49 mm, 29 mm tall
Filament~14 g
Layer height0.2 mm
Infill15%
SupportsYes
DownloadZIP: stencil cap (STL) + README with print settings
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own golf ball stencil →

Made with the free Golf ball stencil generator. Upload your own drawing and get the same kind of part built from it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the golf ball stencil guide.

golf ball stencil Hgolf ball marker letter Hgolf ball stencil stlgolf ball marking toolgolf ball initials

Questions about this design

How do I keep the letter H straight on the golf ball?

Use the logo or the seam of the ball as a reference and turn the cap until the tabs sit parallel to it before you draw. Because the H is symmetrical, any tilt shows at once, so a few seconds lining it up is worth it.

How do I print the golf ball stencil letter H?

Print it as exported, rim flat on the bed and the dome up, with tree supports switched on (organic in PrusaSlicer, tree in Bambu Studio, Orca and Cura). They hold up the inside of the dome and peel out easily. Sliced in PrusaSlicer 2.7.2 at 0.2 mm layers it takes about 1 h 13 min and 14 g of PLA.

Can I change the letter H golf ball stencil for my initials or a different ball?

Yes. Open the free golf ball stencil generator, type your letters into Initials (up to two lines of six) and pick the Bold & Blocky font to match this one. The Ball size, Clearance and Size sliders fit a different ball or change the letter; this one uses a Size of 22 mm.
