◆ Candle wax

Honeycomb wax melt tray mold

Nine hexagon wax melts with a honeycomb pattern pressed into the face.

Make your own tray mold Download free on Thingiverse

Want your own version? Make it free in our tray mold tool. A free account gives you free downloads every week.

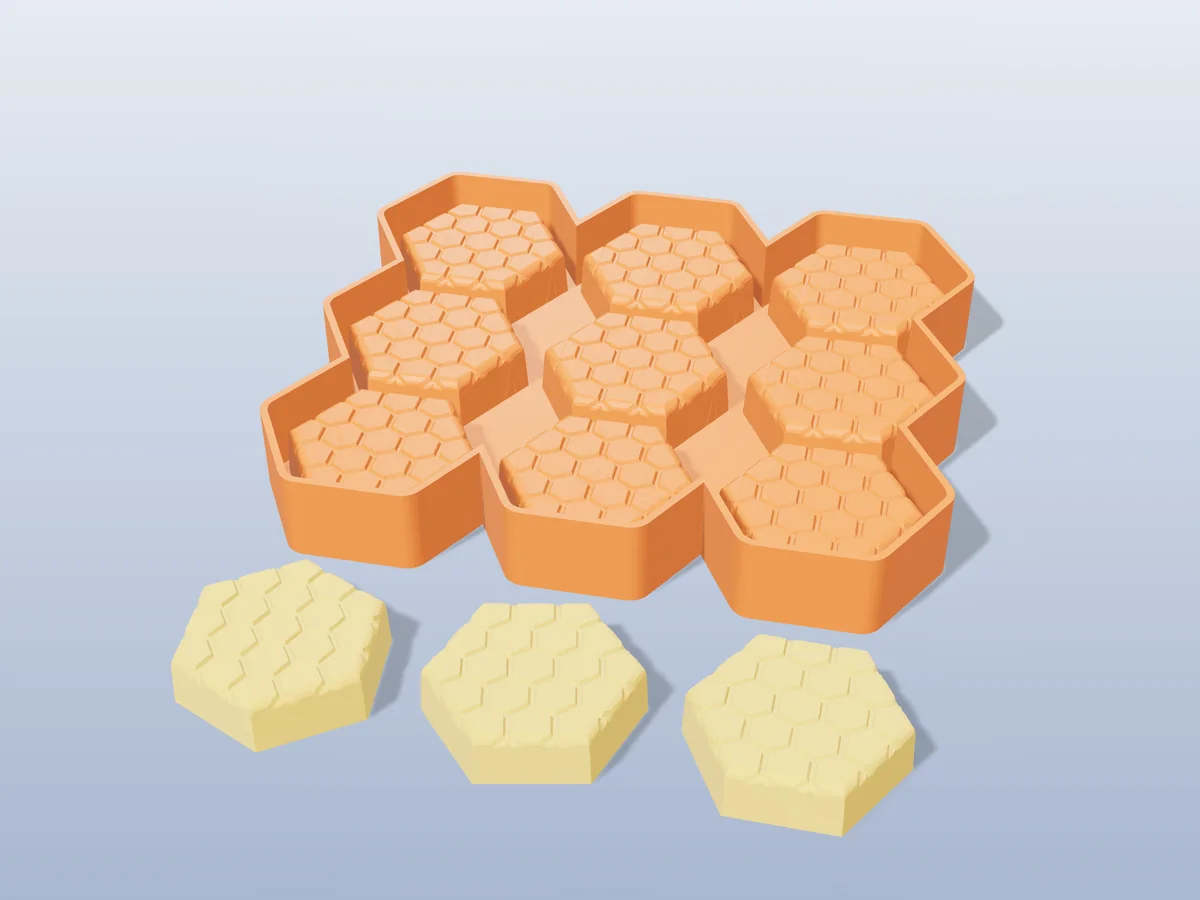

3D render of the printed caster for a nine-hexagon honeycomb silicone tray, with three honey-coloured hexagon melts in front
Candle wax ~180 g

A tray of nine hexagon melts, 45 mm across the flats and 14 mm deep, each face covered in a honeycomb of small cells. It suits beeswax blends, honey-scented melts and soap alike.

Read more

Made with our tray mold generator in its flexible silicone tray mode: print the caster, pour silicone into it and peel out a flexible nine-cavity tray. The hexagons tile, so the caster walls follow them tightly and very little silicone is spent between the cavities.

The zip carries the printed caster exactly as the tool exported it, one hexagon on its own as an STL, the master uploaded to the tool, and a print and pour sheet with the silicone figure the tool measured.

Shown as a 3D render of the printed caster with three honey-coloured melts in front, not a photo.

Honeycomb wax melt tray mold at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

3
  • About 336 ml of silicone for the tray (mix it in one batch)
  • Wax melt blend, beeswax or melt-and-pour soap, about 24 ml per hexagon
  • A heat-proof jug for pouring

How to cast it

5

  1. Print the caster as exported, open side up. It is one part, so there are no seams to seal. No supports.

  2. Set it on a level surface. Mix 336 ml of silicone in one batch and pour it into one corner in a thin stream, letting it flow round the raised shapes until it is level with the rim.

  3. Tap the caster on the table for a minute to bring the bubbles up, then let the silicone cure for as long as its datasheet says.

  4. Peel the cured silicone out of the caster. That silicone is your tray, and the caster is ready for another one.

  5. Fill each cavity, let it set, then flex the tray and peel it back to pop the pieces out.

Print details

6 h 10 minPrint time
~180 gFilament
1Printed parts
178 × 157 × 24 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts1
Size (W x D x H)178 x 157 x 24 mm
Print bed needed178 x 158 mm, 24 mm tall
Filament~180 g
Layer height0.2 mm
Infill15%
SupportsNot needed
DownloadZIP: printed caster (STL) + one wax melt (STL) + tool master (STL) + print and pour sheet
Added2026-09-24
Make your own tray mold →

Made with the free Tray mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the ice cube tray mold guide.

honeycomb moldhexagon wax melt moldbeeswax moldhoneycomb soap moldbee wax melt

Questions about this design

Can I pour pure beeswax into the honeycomb tray?

Yes. Beeswax is stiff when it sets and shrinks more than soy, so let it cool slowly at room temperature and flex the tray only once the hexagons are cold right through. The honeycomb face releases cleanly from silicone.

Does the honeycomb pattern work for soap bars?

Yes, as melt-and-pour guest soaps of about 24 ml each. Spray the surface with a little rubbing alcohol right after pouring to pop the bubbles, and the cells stay crisp.

How deep is the honeycomb pattern on each melt?

The grooves between the cells are about a millimetre deep and a millimetre and a half wide. That is enough to catch mica or a darker wax rubbed into the lines, and shallow enough that the wax releases without tearing.
