Macaron candle mold
A macaron candle, 60 mm across: two domed shells with ruffled feet and a filling between them. A rigid two-part print.
◆ Candle wax
A macaron candle, 60 mm across: two domed shells with ruffled feet and a filling between them. A rigid two-part print.
A macaron candle 60 mm across and 40 mm tall: two smooth domed shells, each with a ruffled foot, and a slightly narrower filling layer between them, like the French pastry.
The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The macaron is round, so a seam through its middle releases it cleanly, and the tool's own seam check finds nothing stuck. No silicone needed.
Sweet, small and quick to pour: good for wedding favours, dessert gift boxes and pastel sets. Pour it in pistachio, rose or lavender, or pour the filling a different colour. The zip carries both halves, the macaron master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

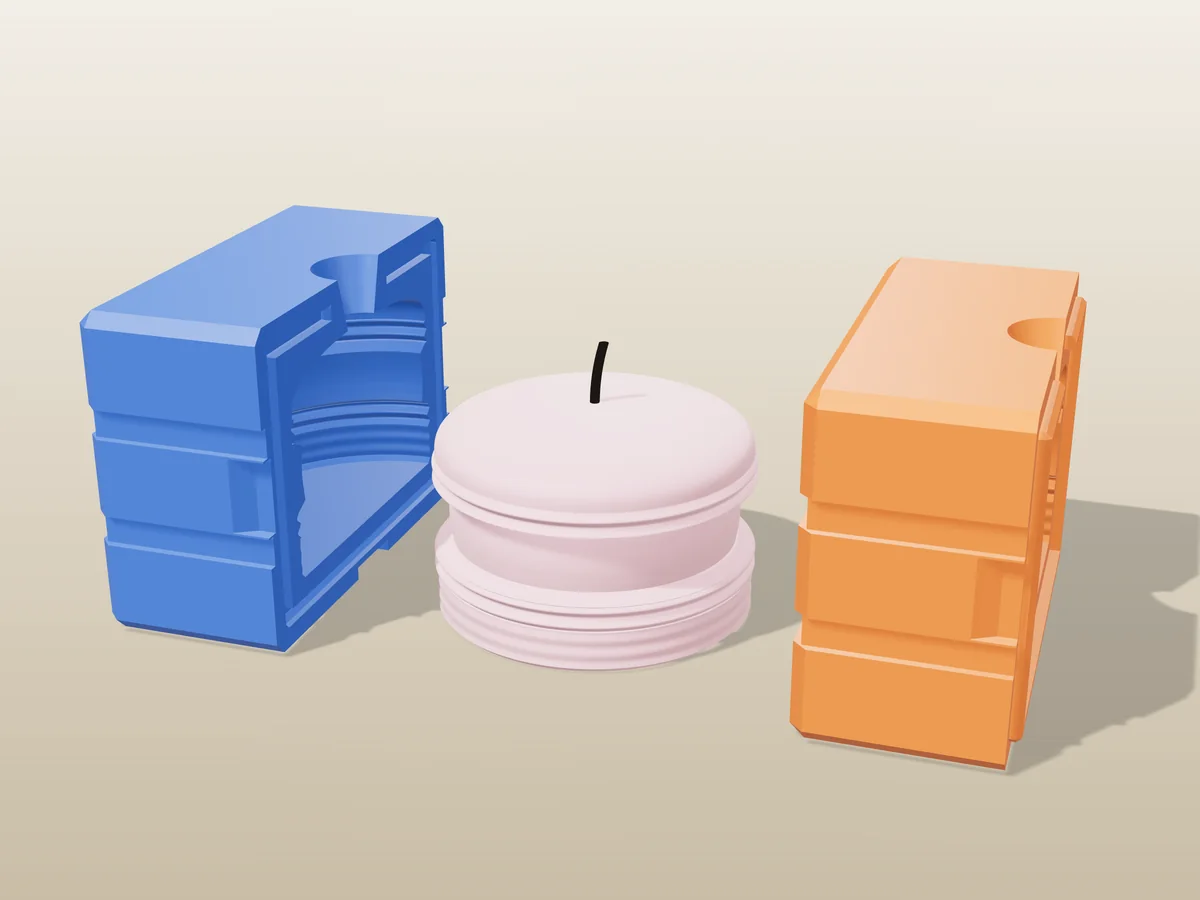

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.
Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.
Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.
Clip the wick centred across the pour funnel and pour at 65 to 75 C.
Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.
Cool fully, open the halves at the pry pockets and trim the wick.
Print details
| Cast material | Candle wax |
|---|---|
| Printed parts | 2 |
| Size (W x D x H) | 72 x 81 x 61 mm |
| Print bed needed | 82 x 38 mm, 62 mm tall |
| Filament | ~163 g |
| Layer height | 0.2 mm |
| Infill | 40% |
| Supports | Not needed |
| Download | ZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe |
| Added | 2026-09-25 |
Pro early access until October 25, 2026, then free with any account.
Make your own candle mold →Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
New to casting? Read the candle mold guide.
Paint it after casting: the filling is set 3 mm back from the shells, so a brush run round it stays neat. Pouring layers in a two-part mold standing on its side does not line up with the filling.
A small tealight-size wick. The macaron is 60 mm wide but only 40 mm tall, so it burns as a short, wide candle.
About 88 g of wax, 97 ml. A 1 kg bag pours about ten, which makes it a cheap favour for weddings and parties.
