A toadstool candle 55 mm tall with a 69 mm domed cap, a soft rim, seven raised spots and a stem that flares at the foot. The cap overhangs the stem all the way round, which a rigid mold cannot release and silicone can.
Made with the box mode of our silicone mold maker, which the site's own mold advisor ranks first for this shape. You print a base with the mushroom fused onto it, two round walls and two clamps, pour about 473 ml of silicone around it, and get a solid silicone block that flexes off the cap every time.
The zip carries every printed part, the mushroom master as its own STL, the tool's own print-settings sheet and a recipe file that puts every setting back on the generator.

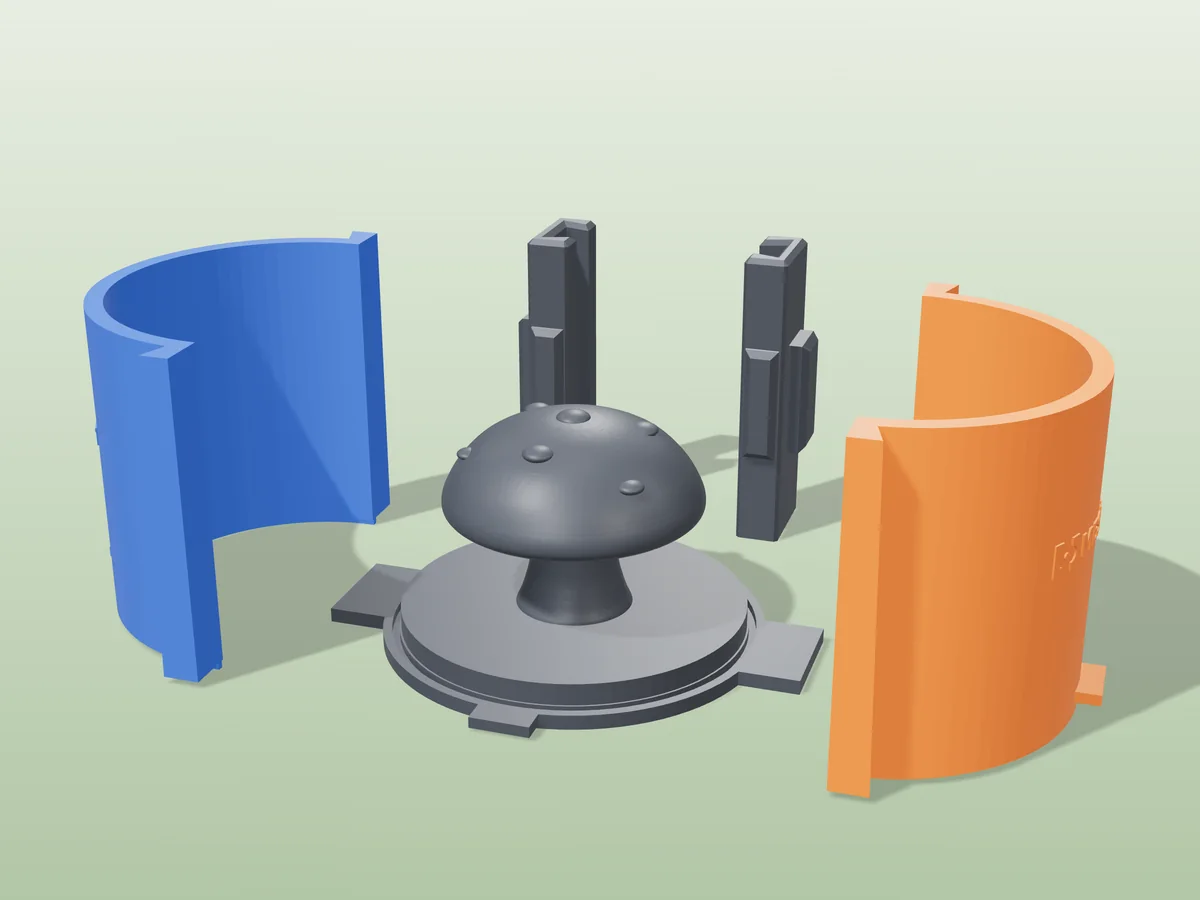

Shown as a 3D render of the printed mold parts pulled apart around the master, not a photo.
What you need
- About 511 ml of silicone (mix it in one batch)
- About 81 g of wax per candle: each cast is 90 ml
- Tape or a hot glue gun for the wall seams
- A primed wick
How to cast it
- Print the base with the master fused onto it, the two walls and the two clamps.
- Stand the walls on the base, slide the clamps over the corners, and seal the outside seams with tape or hot glue.
- Mix 511 ml of silicone in one batch and pour it into a corner, letting it rise around the master until it covers the top.
- Once it has cured, take the clamps and walls off and pull the silicone block off the master. That block is your mold.
| Cast material | Candle wax |
|---|---|
| Total print time | 17 h 27 min |
| Printed parts | 5 |
| Size (W x D x H) | 132 x 116 x 90 mm |
| Filament | ~232 g |
| Layer height | 0.2 mm |
| Infill | 15% |
| Supports | Not needed |
| Printer | Sliced with PrusaSlicer 2.7.2: 0.4 mm nozzle, 0.2 mm layers, 3 walls, 15% infill, MK3-class speeds. These parts only hold liquid silicone while it cures, so PLA is fine. No supports. |
| Download | ZIP: 5 printed parts (STL) + candle master (STL) + print sheet + recipe |
| Added | 2026-09-24 |
Pro early access until October 24, 2026, then free with any account.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
Made with the free silicone mold maker generator. Upload your own model and get the same kind of mold built around it, in your browser.
New to casting? Read the silicone mold maker guide.
