Pear candle mold

A pear candle, 95 mm tall: a full round bottom, a slim neck, a stem and a leaf on the shoulder. A rigid two-part print.

Make your own candle mold

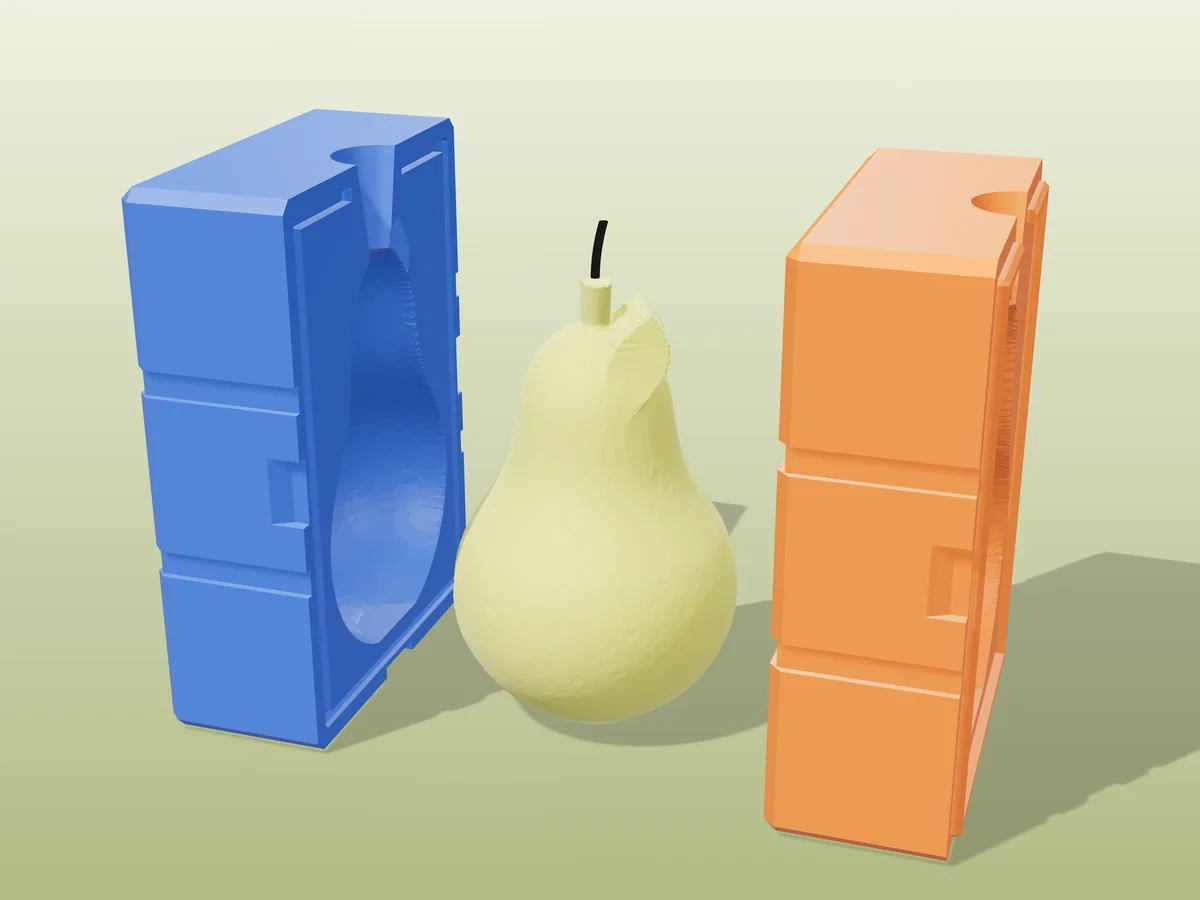

3D render of a green pear candle with a stem and leaf between the two printed halves of its rigid blue and orange mold
Candle wax ~351 g Pro early access

A pear candle 95 mm tall and 60 mm across: a full round bottom rising to a slim neck, a short stem the wick runs up through, and a leaf resting against the front of the neck.

Read more

The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The seam runs down the sides of the pear, so the leaf sits in the front half, and the tool's own seam check finds nothing stuck. No silicone needed.

Fruit candles are a steady seller for kitchens, autumn tables and teacher gifts. Pour it in pear green, gold or a painted blush. The zip carries both halves, the pear master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.

What you need

3
  • About 120 g of pillar wax: the cavity holds 133 ml
  • A tabbed, primed wick for a 50 mm candle, about 120 mm long
  • Rubber bands or clamps, and a clip or wick bar across the funnel

How to cast it

5

  1. Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.

  2. Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.

  3. Clip the wick centred across the pour funnel and pour at 65 to 75 C.

  4. Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.

  5. Cool fully, open the halves at the pry pockets and trim the wick just above the stem.

Print details

11 h 40 minPrint time
~351 gFilament
2Printed parts
72 × 82 × 116 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts2
Size (W x D x H)72 x 82 x 116 mm
Print bed needed82 x 37 mm, 117 mm tall
Filament~351 g
Layer height0.2 mm
Infill40%
SupportsNot needed
DownloadZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe
Added2026-09-25

Pro early access until October 25, 2026, then free with any account.

Make your own candle mold →

Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the candle mold guide.

pear candle moldfruit candle moldautumn candle moldkitchen candletwo part candle mold

Questions about this design

How do I colour the pear candle like a real pear?

Pour it in a soft green or yellow, then dry-brush a little red or brown mica on one side of the bottom for a blush, and a darker brown on the stem. Paint the leaf green with a fine brush.

Where does the wick come out of the pear?

Up the middle and out through the stem, where the pour funnel sits. The stem burns first, then the neck and the round bottom.

Does the pear go with the apple candle mold?

Yes, they are the same scale, so a pear, an apple and a lemon make a fruit bowl set for a kitchen or a market table.
