Ribbed dome candle mold
A ribbed dome candle, 76 mm wide and 50 mm tall: 24 soft ribs fading into a smooth crown. A silicone mold from a printed shell.
◆ Candle wax
A ribbed dome candle, 76 mm wide and 50 mm tall: 24 soft ribs fading into a smooth crown. A silicone mold from a printed shell.
A ribbed dome candle 76 mm wide and 50 mm tall: half an egg with 24 rounded ribs running up from the foot and fading into a smooth crown, where the wick sits.
Made with the hugging-shell mode of our silicone mold maker: print the base with the dome fused onto it and the two shell halves, pour about 168 ml of silicone, and the flexible mold that comes out peels off the ribs a rigid mold would lock on.
Low, wide and steady, it burns for a long time and looks at home on a coffee table or in a bathroom. Pour it in oat, sand or white. The zip carries every printed part, the dome master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

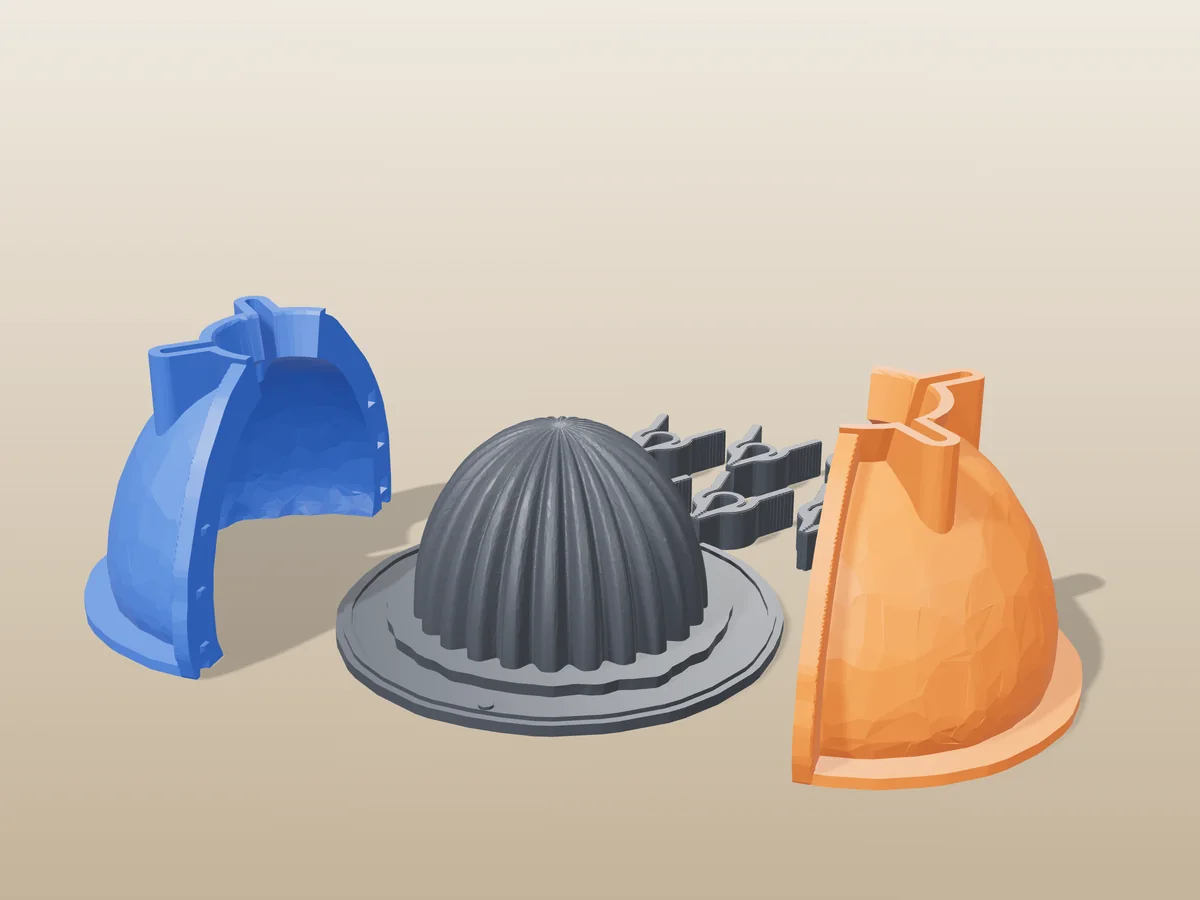

Shown as a 3D render of the printed mold parts pulled apart around the master, not a photo.
Print the base, which has the master already fused onto it, and the two shell halves. No supports.
Stand the shell halves on the base around the master and hold the seams shut with steel binder clips. The seats for them are built into the shell.
Tape the outside seams or run a bead of hot glue along them, because silicone finds every gap.
Mix 191 ml of silicone in one batch, pour it into the open top in a thin stream, and fill level with the rim.
Once it has cured, unclip the shell, lift it off and peel the silicone off the master. That silicone is your mold.
Set the silicone back in the shell to keep its shape, and cast into it through the opening the base left.
Print details
| Cast material | Candle wax |
|---|---|
| Printed parts | 9 |
| Size (W x D x H) | 121 x 122 x 73 mm |
| Print bed needed | 122 x 119 mm, 73 mm tall |
| Filament | ~225 g |
| Layer height | 0.2 mm |
| Infill | 15% |
| Supports | Not needed |
| Download | ZIP: 9 printed parts in 4 STL files + candle master (STL) + print sheet + recipe |
| Added | 2026-09-25 |
Pro early access until October 25, 2026, then free with any account.
Make your own silicone mold →Made with the free Silicone mold maker generator. Upload your own model and get the same kind of mold built around it, in your browser.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
New to casting? Read the silicone mold maker guide.
The ribs run from the foot to the crown, so at the sides of any split their flanks face the way a rigid half would have to pull, and they lock it. Flexible silicone stretches over them and lets go.
One wick sized for a 70 mm candle, or two smaller ones set 30 mm apart. A wick that is too small tunnels down the middle and leaves the ribs standing.
About 138 g of pillar wax per candle, from a mold made once from about 191 ml of silicone.
