◆ Candle wax
Ripple cone candle mold
A 100 mm ripple cone candle: a tree-shaped taper with nine soft horizontal waves. A rigid two-part print, no silicone.
◆ Candle wax
A 100 mm ripple cone candle: a tree-shaped taper with nine soft horizontal waves. A rigid two-part print, no silicone.
A ripple cone candle 100 mm tall and 63 mm across at the foot: a tree-shaped cone with nine soft horizontal waves that shrink towards a rounded tip.
The mold is exactly what our two-part candle mold generator builds for it: two rigid halves with rubber-band grooves, pry pockets and a pour funnel on top. The cone is round, so a seam through its middle releases it cleanly, and the tool's own seam check finds nothing stuck. You pour straight into the print, no silicone needed.
Pour one in sage for a winter shelf or three in different heights of the same colour for a table. The zip carries both halves, the cone master as its own STL, the tool's own print-settings sheet and a recipe file for the generator.

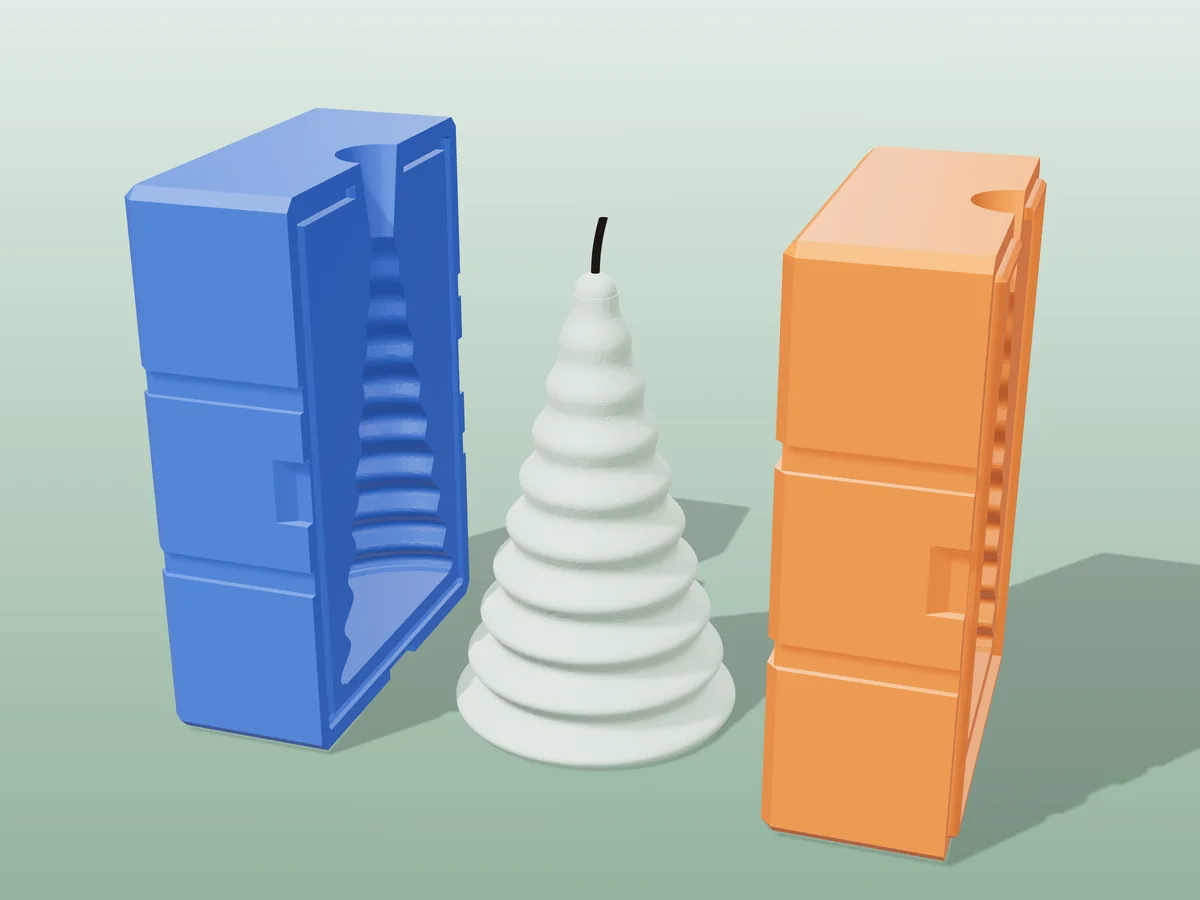

Shown as a 3D render of the printed mold halves pulled apart around the candle they cast, not a photo.
Print both halves as exported. Clamp-strength settings: 4 walls, 40% gyroid infill, no supports.
Drop a tabbed wick into one half so the tab sits on the cavity floor, close the halves and band them along the whole seam.
Clip the wick centred across the pour funnel and pour at 65 to 75 C.
Once the first pour is firm but still warm, top up the funnel. Wax shrinks, and the second pour fills the dip.
Cool fully, open the halves at the pry pockets and trim the wick.
Print details
| Cast material | Candle wax |
|---|---|
| Printed parts | 2 |
| Size (W x D x H) | 75 x 84 x 121 mm |
| Print bed needed | 84 x 39 mm, 122 mm tall |
| Filament | ~423 g |
| Layer height | 0.2 mm |
| Infill | 40% |
| Supports | Not needed |
| Download | ZIP: 2 printed parts (STL) + candle master (STL) + print sheet + recipe |
| Added | 2026-09-25 |
Pro early access until October 25, 2026, then free with any account.
Make your own candle mold →Made with the free Rigid box mold generator. Upload your own model and get the same kind of mold built around it, in your browser.
Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.
New to casting? Read the candle mold guide.
The ripple cone's waves run round it, so it releases from a rigid printed mold and needs no silicone. The ribbed cone's ribs run up it, which needs a silicone mold.
Straight up the middle and out through the tip, where the pour funnel sits. Drop a tabbed wick in before you close the halves and clip it centred across the funnel.
About 96 g of pillar wax per candle. The tip is thin, so pour at 75 to 80 C to fill it cleanly.
