◆ Candle wax

Faceted star wax melt tray mold

Nine faceted star wax melts per pour, from a silicone tray you make yourself.

Make your own tray mold Download free on Thingiverse

Want your own version? Make it free in our tray mold tool. A free account gives you free downloads every week.

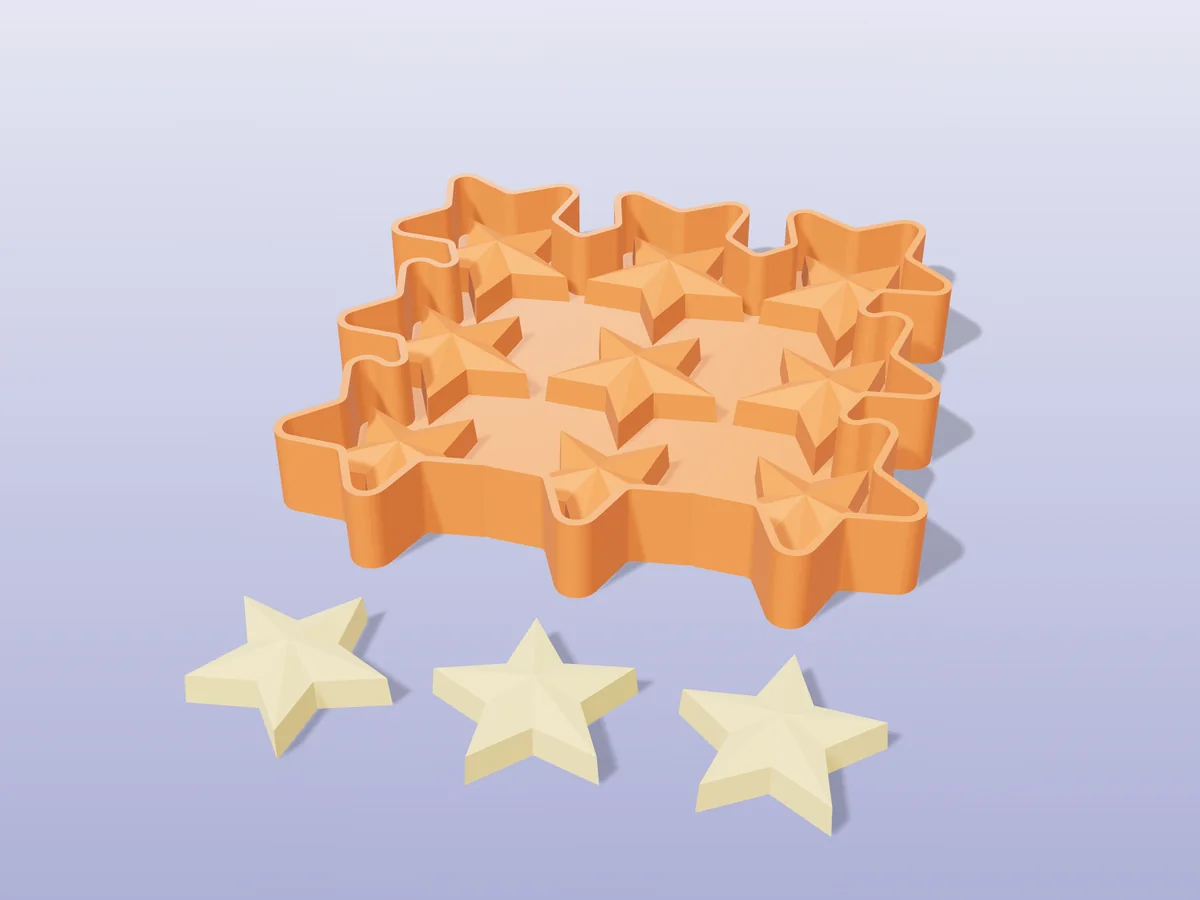

3D render of the printed caster for a nine-star silicone wax melt tray, with three pale yellow faceted star melts in front
Candle wax ~124 g

A tray of nine five-pointed stars, 45 mm tip to tip and 13 mm deep. The face of each star is faceted: ten flat planes meet in a point at the centre, so the melts catch the light like a folded paper star.

Read more

Made with our tray mold generator in its flexible silicone tray mode. You print one part, a caster with a raised star in each of nine spots, pour silicone into it and peel out a flexible nine-star tray. The walls of the caster follow the stars, so the tray takes less silicone than a square box would.

The zip carries the printed caster exactly as the tool exported it, one star on its own as an STL, the master that went into the tool, and a print and pour sheet with the silicone figure the tool measured.

Shown as a 3D render of the printed caster with three star melts in front, not a photo.

Faceted star wax melt tray mold at a glance: every printed part with its size, print time, filament, print settings and the three steps to use it

What you need

3
  • About 314 ml of silicone for the tray (mix it in one batch)
  • Wax melt blend and fragrance oil, about 7 ml per star
  • Mica powder if you want the facets to shimmer

How to cast it

5

  1. Print the caster as exported, open side up. It is one part, so there are no seams to seal. No supports.

  2. Set it on a level surface. Mix 314 ml of silicone in one batch and pour it into one corner in a thin stream, letting it flow round the raised shapes until it is level with the rim.

  3. Tap the caster on the table for a minute to bring the bubbles up, then let the silicone cure for as long as its datasheet says.

  4. Peel the cured silicone out of the caster. That silicone is your tray, and the caster is ready for another one.

  5. Fill each cavity, let it set, then flex the tray and peel it back to pop the pieces out.

Print details

4 h 10 minPrint time
~124 gFilament
1Printed parts
157 × 150 × 22 mmSize (W x D x H)
All print details
Print details
Cast materialCandle wax
Printed parts1
Size (W x D x H)157 x 150 x 22 mm
Print bed needed157 x 151 mm, 23 mm tall
Filament~124 g
Layer height0.2 mm
Infill15%
SupportsNot needed
DownloadZIP: printed caster (STL) + one wax melt (STL) + tool master (STL) + print and pour sheet
Added2026-09-24
Make your own tray mold →

Made with the free Tray mold generator. Upload your own model and get the same kind of mold built around it, in your browser.

Download free on Thingiverse

Free download. Opens the Thingiverse listing in a new tab.

Free for personal use. Selling the pieces you cast needs a commercial licence (Pro or Founder); passing on the file itself is not permitted on any plan. Full terms.

New to casting? Read the ice cube tray mold guide.

star wax melt moldstar mold stlfaceted star moldwax melt traychristmas wax melt mold

Questions about this design

How do I make the star facets sharp and shiny?

Pour the silicone slowly into one corner of the caster so it flows over the stars instead of trapping air on the facets, then tap the caster on the table for a minute. A bubble on a facet ruins its point; a bubble anywhere else does not matter.

Do the star points break when the melts come out?

Not if you peel the tray back from one side instead of pushing each star up from underneath. The points are thin, so let the wax set fully at room temperature first; 20 minutes in the fridge makes them release even more cleanly.

Can I make the stars in resin?

Yes, with a tin or platinum silicone rated for resin. The faceted face comes out glossy from silicone, so resin stars need no polishing, and at about 7 ml each a small kit of epoxy fills the whole tray several times.
